Model 271SM-CTS
Electronic Trap Primer in Surface Mount Enclosure with Push-in Fittings
Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap ensure the traps maintain a water seal. Surface mounted electronic trap primer mounts on the finished wall.
Surface Mount Electric Trap Primers feature:
- A multi-port outlet assembly primes 4 to 36 traps
- A factory pre-set timer is programmed to discharge water to the trap every 24 hours

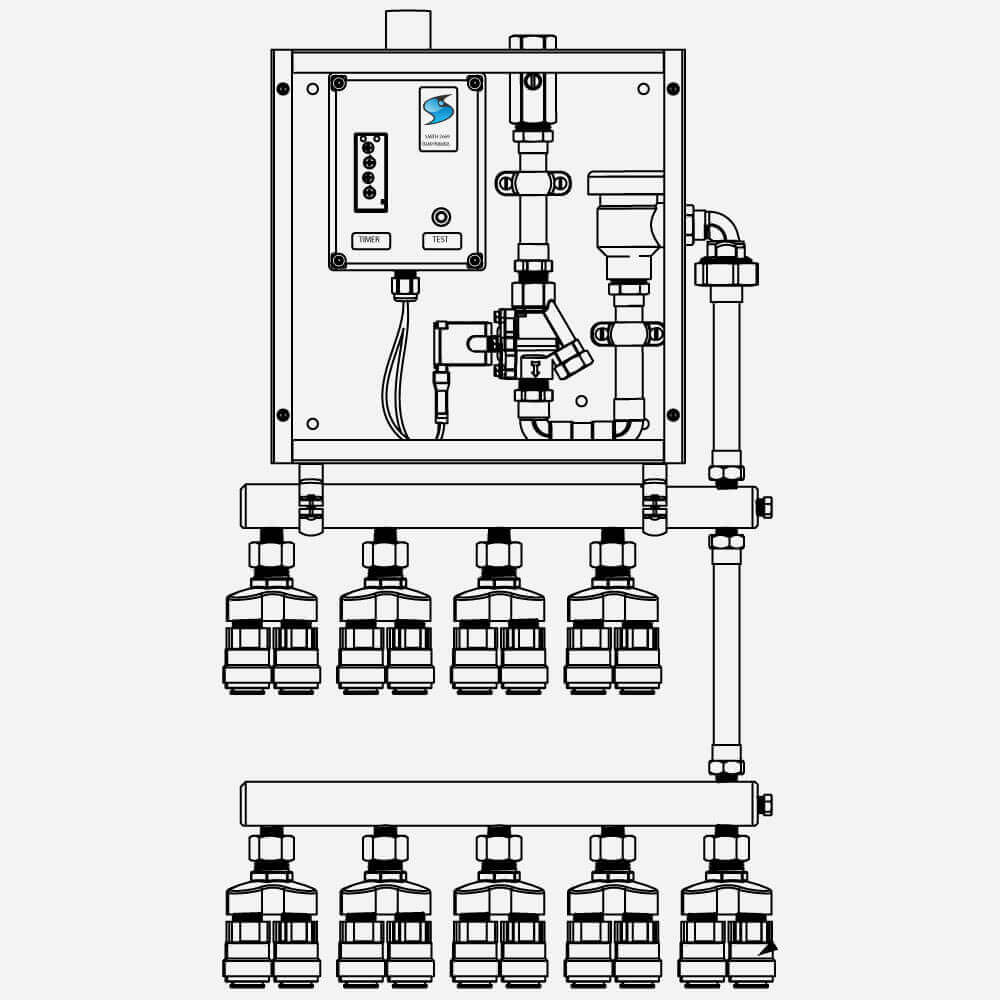

- The assembly includes a steel NEMA Type 1 surface mount enclosed box, shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold.
- -CTS suffix provides push-in connections for faster installation
- Compatible with Building Management System (BMS)
- Available in 271SM-CTS and 272SM-CTS configurations (see figure list below)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Electronic Trap Primer [270FM | in Flush Mount Enclosure; 270SM | in Surface Mount Enclosure; 271FM-CTS | in Flush Mount Enclosure with Push-in Fittings; 271SM-CTS | in Surface Mount Enclosure with Push-in Fittings] | 487 KB | |||
| | Electronic Trap Primer in Surface Mount Enclosure with Single Manifold and Push-in Fittings (20 max outlet connections) | 2 MB | |||
 | | Electronic Trap Primer in Surface Mount Enclosure with Single Manifold and Push-in Fittings (20 max outlet connections) | 0 | 2 MB | ||
| | Electronic Trap Primer in Surface Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections) | 0 | 3 MB | ||
| | Electronic Trap Primer in Surface Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections) | 0 | 2 MB | ||
| | Kwik Ship® Brands: Smith Fluid Controls (pdf) | 0 | 780 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands: Commercial Engineering Approval Form | 0 | 1 MB | ||
| | Brochure - Trap Primers, Distribution Units and other Accessories | 0 | 5 MB | ||
| | Flyer - Trap Primer, Distribution Units and other Accessories | 0 | 2 MB | ||
 | | Fluid Controls with Chris Rylant | 0 | 132 KB | ||
| | Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering | 0 | 132 KB | ||
| | Fluid Controls Trap Primers Overview with Chris Levins | 0 | 133 KB | ||
| | Fluid Controls - Trap Primers & Distribution Units with Chris Levins | 0 | 133 KB |
Specifications
| Compliance/Certifications | IAPMO NRTL EGS |
Details
Figure Number 271SM-CTS Series [ submittal]Multi-port assembly designed to prime 4 to 20 floor drain P-traps; Designed to interface with Building Management System (BMS). Hardwire electrical connections provided. Outfitted with -CTS push-in Connections for 5/8" O.D. tubingFigure Number 272SM-CTS Series [ submittal]Muti-port assembly designed to prime 4 to 36 floor drain P-traps; Designed to interface with BMS. Hardwire electrical connections provided. Outfitted with -CTS Push-in Connections for 5/8" O.D. tubing
