Model 271FM-CTS
Electronic Trap Primer in Flush Mount Enclosure with Push-in Fittings
Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap ensure the traps maintain a water seal. Flush Mount or recessed Electronic Trap Primer mounts flush with the finished wall.
Flush Mount (Recessed) Trap Primers feature:
- A multi-port outlet assembly primes 4 to 36 traps.
- A factory pre-set timer is programmed to discharge water to the trap every 24 hours
- The steel recessed mounting enclosure fits between studs, 16-inches (40.64 cm) on center.
- Units are provided with shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold.
- -CTS suffix provides push-in connections for faster installation
- Compatible with Building Management System (BMS)
- Available in 271FM-CTS, 272FM-CTS configurations (see figure list below)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Electronic Trap Primer [270FM | in Flush Mount Enclosure; 270SM | in Surface Mount Enclosure; 271FM-CTS | in Flush Mount Enclosure with Push-in Fittings; 271SM-CTS | in Surface Mount Enclosure with Push-in Fittings] | 487 KB | |||
| | Electronic Trap Primer in Flush Mount Enclosure with Single Manifold and Push-in Fittings (20 max outlet connections) | 2 MB | |||
 | | Electronic Trap Primer in Surface Mount Enclosure - 3 Manifolds each with 8 Outlets | 0 | 1 MB | ||
| | Electronic Trap Primer in Flush Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections) | 0 | 1 MB | ||
| | Electronic Trap Primer in Flush Mount Enclosure with 2 Manifolds and Push-in Fittings (36 max outlet connections) | 0 | 1 MB | ||
| | Kwik Ship® Brands: Smith Fluid Controls (pdf) | 0 | 780 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands: Commercial Engineering Approval Form | 0 | 1 MB | ||
| | Brochure - Trap Primers, Distribution Units and other Accessories | 0 | 5 MB | ||
| | Flyer - Trap Primer, Distribution Units and other Accessories | 0 | 2 MB | ||
 | | Fluid Controls with Chris Rylant | 0 | 132 KB | ||
| | Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering | 0 | 132 KB | ||
| | Fluid Controls Trap Primers Overview with Chris Levins | 0 | 133 KB | ||
| | Fluid Controls - Trap Primers & Distribution Units with Chris Levins | 0 | 133 KB |
Specifications
| Compliance/Certifications | IAPMO NRTL EGS |
| Variations | Galvannealed Steel Cover -GC, Stainless Steel Enclosure -SS, Solid Stainless Steel Cover -SSC, Hinged Access Door with Screwdriver Latch -SL, Hinged Access Door with Cylinder Lock -CL, Vandal Proof Screws -U, Interface with Facilities Energy Management System -EMS |
Details

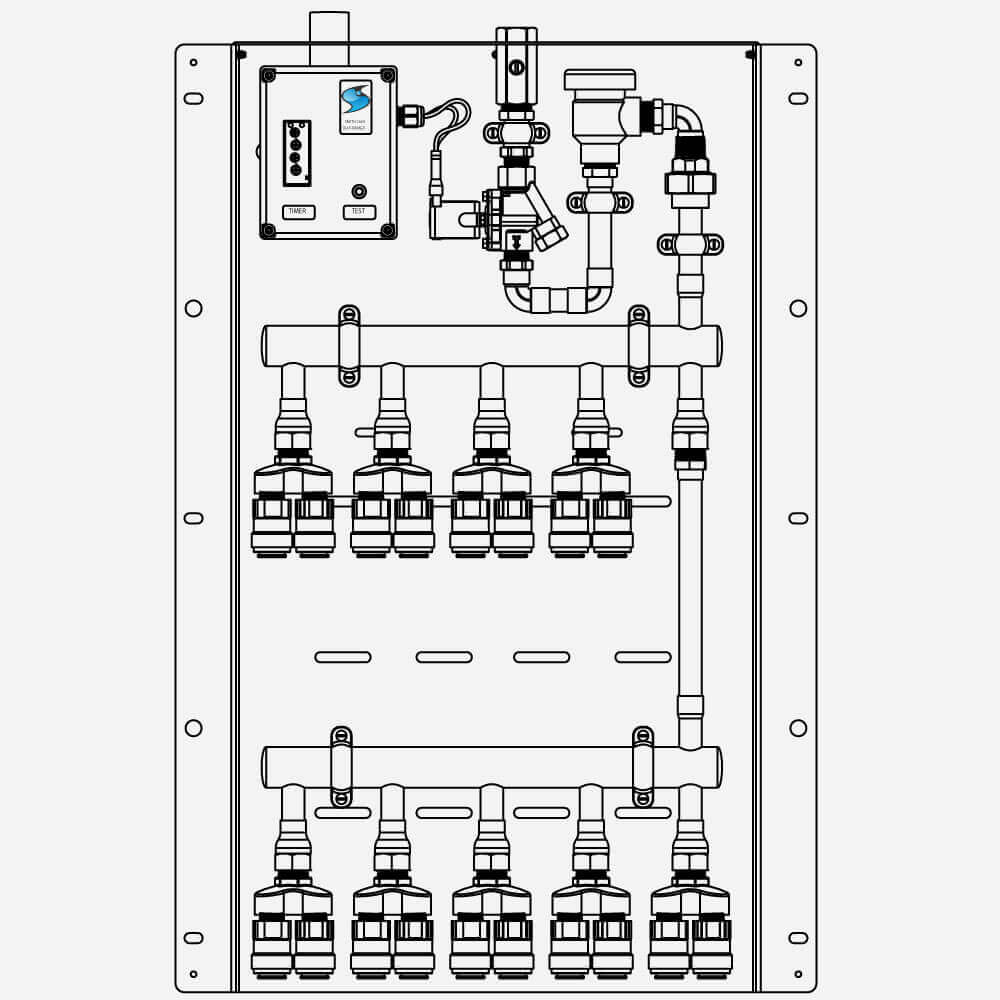

Figure Number 271FM-CTS Series [ submittal]Multi-port assembly designed to prime 4 to 20 floor drain P-traps; Designed to interface with Building Management System (BMS). Hardwire electrical connections provided. Outfitted with -CTS push-in Connections for 5/8" O.D. tubingFigure Number 272FM-CTS Series [ submittal]Muti-port assembly designed to prime 4 to 36 floor drain P-traps; Designed to interface with BMS. Hardwire electrical connections provided. Outfitted with -CTS Push-in Connections for 5/8" O.D. tubing
