Name: Electronic Trap Primer in Surface Mount Enclosure
Brand: Jay R. Smith Mfg. Co.
SKU: 270SM

Model 270SM

Electronic Trap Primer in Surface Mount Enclosure

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-traps to ensure the traps maintain a water seal. Surface mount electronic trap primers mount on the finished wall.

Surface Mount Trap Primers feature:

A multi-port out assembly primes 4 to 32 traps
A factory pre-set timer is programmed to discharge water to the trap every 24 hours.

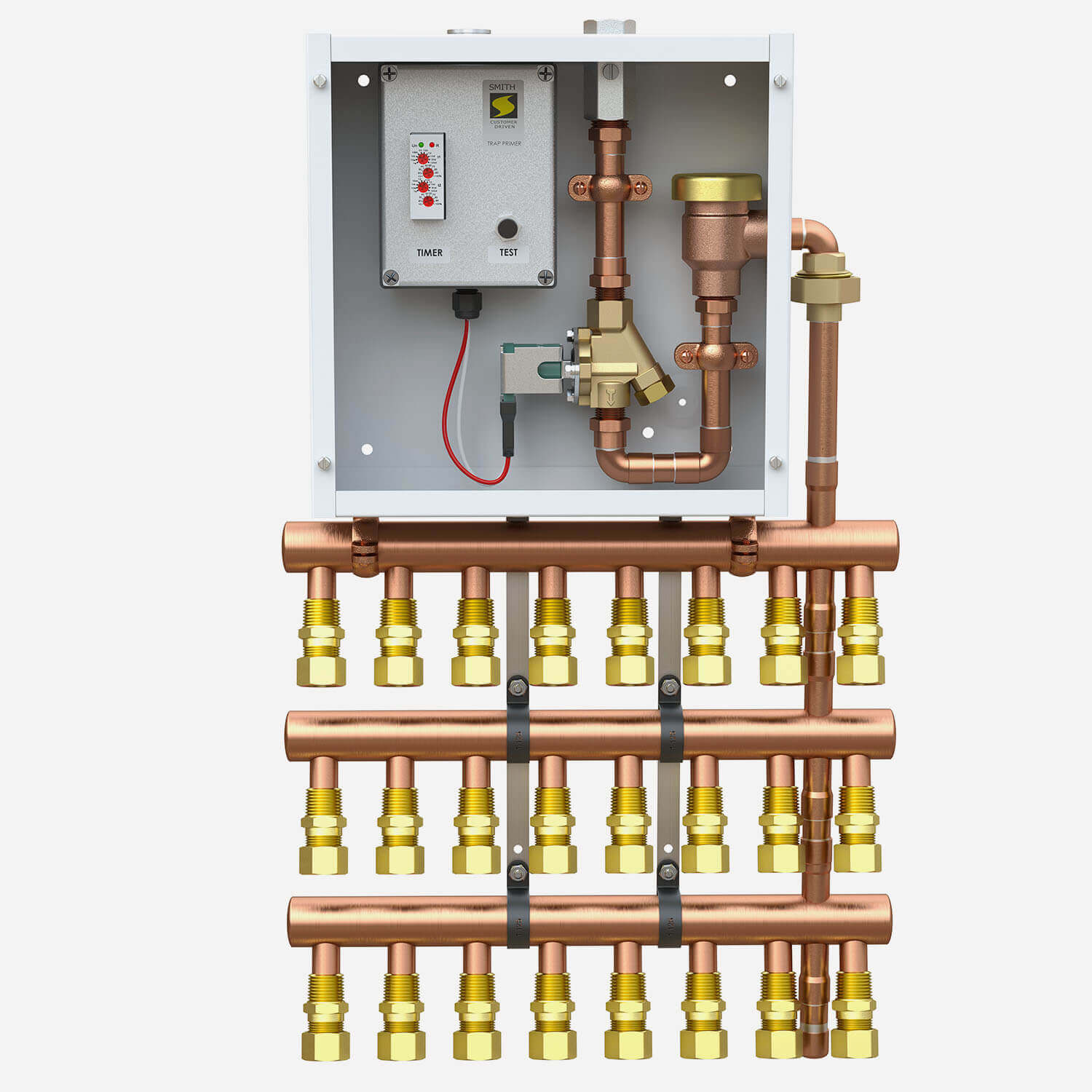

The assembly includes a steel NEMA Type 1 surface mount enclosed box, shut off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold.
ASSE, IAPMO (UPC) and IAPMO EGS (UL 1951) Listed
Compatible with Building Management System (BMS)

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 221119, Domestic Water Piping Specialties (doc)	Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs	262 KB
Drawings	DWG 270SM Trap Primer	Electronic Trap Primer in Surface Mount Enclosure - Single Manifold with 8 Outlets	918 KB
Drawings	DWG 271SM Trap Primer	Electronic Trap Primer in Surface Mount Enclosure - 3 Manifolds each with 8 Outlets	2 MB
Drawings	DWG 272SM Trap Primer	Electronic Trap Primer in Surface Mount Enclosure - 4 Manifolds each with 8 Outlets	2 MB
Installation Instructions	Install/Operate Guide 270, 271, 272 Trap Primer (pdf)	Electronic Trap Primer [270FM \| in Flush Mount Enclosure; 270SM \| in Surface Mount Enclosure; 271FM-CTS \| in Flush Mount Enclosure with Push-in Fittings; 271SM-CTS \| in Surface Mount Enclosure with Push-in Fittings]	487 KB
Submittals	Submittal 270SM Trap Primer (pdf)	Electronic Trap Primer in Surface Mount Enclosure - Single Manifold with 8 Outlets	1 MB
Submittals	Submittal 271SM Trap Primer (pdf)	Electronic Trap Primer in Surface Mount Enclosure - 3 Manifolds each with 8 Outlets	2 MB
Submittals	Submittal 272SM Trap Primer (pdf)	Electronic Trap Primer in Surface Mount Enclosure - 4 Manifolds each with 8 Outlets	2 MB
Product MasterSpec	MasterSpec: 221119, Domestic Water Piping Specialties (pdf)	Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs	209 KB
Brochures/Flyers	Kwik Ship® Brands: Smith Fluid Controls (pdf)	Kwik Ship® Brands: Smith Fluid Controls (pdf)	780 KB
Brochures/Flyers	Smith Fluid Controls Brochure (pdf)	Brochure - Trap Primers, Distribution Units and other Accessories	5 MB
Brochures/Flyers	Smith Fluid Controls Flyer	Flyer - Trap Primer, Distribution Units and other Accessories	2 MB
Videos	Fluid Controls with Chris Rylant	Fluid Controls with Chris Rylant	132 KB
Videos	Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering	Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering	132 KB
Videos	Fluid Controls Trap Primers Overview with Chris Levins	Fluid Controls Trap Primers Overview with Chris Levins	133 KB
Videos	Fluid Controls - Trap Primers & Distribution Units with Chris Levins	Fluid Controls - Trap Primers & Distribution Units with Chris Levins	133 KB
