Name: Electronic Trap Primer in Flush Mount Enclosure
Brand: Jay R. Smith Mfg. Co.
SKU: 270FM

Model 270FM

Electronic Trap Primer in Flush Mount Enclosure

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap to ensure the traps maintain a water seal. Flush Mount or recessed Electronic Trap Primer mount flush with the finished wall.

Flush Mount (Recessed) Trap Primers feature:

A multi-port outlet assembly primes 4 to 36 traps.
A factory pre-set timer is programmed to discharge water to the trap every 24 hours.
The steel recessed mounting enclosure fits between studs, 16-inches (40.64 cm) on center.
An optional cover or hinged access door is available.
Compatible with Building Management System (BMS)
Consists of shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold
ASSE, IAPMO (UPC), and IAPMO EGS (UL 1951) Listed
Available in 270FM, 271FM, 272FM configurations (see figure list below)

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 221119, Domestic Water Piping Specialties (doc)	Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs	262 KB
Drawings	DWG 270FM Trap Primer	Electronic Trap Primer in Flush Mount Enclosure - Single Manifold with 8 Outlets	803 KB
Drawings	DWG 271FM Trap Primer	Electronic Trap Primer in Flush Mount Enclosure - 3 Manifolds each with 8 outlets	2 MB
Drawings	DWG 272FM Trap Primer	Electronic Trap Primer in Flush Mount Enclosure - 4 Manifolds each with 8 Outlets	2 MB
Installation Instructions	Install/Operate Guide 270, 271, 272 Trap Primer (pdf)	Electronic Trap Primer [270FM \| in Flush Mount Enclosure; 270SM \| in Surface Mount Enclosure; 271FM-CTS \| in Flush Mount Enclosure with Push-in Fittings; 271SM-CTS \| in Surface Mount Enclosure with Push-in Fittings]	487 KB
Submittals	Submittal 270FM Trap Primer (pdf)	Electronic Trap Primer in Flush Mount Enclosure - Single Manifold with 8 Outlets	1 MB
Submittals	Submittal 271FM Trap Primer (pdf)	Electronic Trap Primer in Flush Mount Enclosure - 3 Manifolds each with 8 outlets	2 MB
Submittals	Submittal 272FM Trap Primer (pdf)	Electronic Trap Primer in Flush Mount Enclosure - 4 Manifolds each with 8 Outlets	2 MB
Product MasterSpec	MasterSpec: 221119, Domestic Water Piping Specialties (pdf)	Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs	209 KB
Brochures/Flyers	Kwik Ship® Brands: Smith Fluid Controls (pdf)	Kwik Ship® Brands: Smith Fluid Controls (pdf)	780 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	4 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	1 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Smith Fluid Controls Brochure (pdf)	Brochure - Trap Primers, Distribution Units and other Accessories	5 MB
Brochures/Flyers	Smith Fluid Controls Flyer	Flyer - Trap Primer, Distribution Units and other Accessories	2 MB
Videos	Fluid Controls with Chris Rylant	Fluid Controls with Chris Rylant	132 KB
Videos	Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering	Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering	132 KB
Videos	Fluid Controls Trap Primers Overview with Chris Levins	Fluid Controls Trap Primers Overview with Chris Levins	133 KB
Videos	Fluid Controls - Trap Primers & Distribution Units with Chris Levins	Fluid Controls - Trap Primers & Distribution Units with Chris Levins	133 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Vandal Proof Screws -U, Hinged Access Door with Allen Key Lock -AKL, Hinged Access Door with Cylinder Lock -CL, Solid Stainless Steel Cover -SSC, Hindged Access Door with Screwdriver Latch -SL, (2) 3/8” (10) Tappings -TAP
Compliance/Certifications	IAPMO NRTL EGS

Details

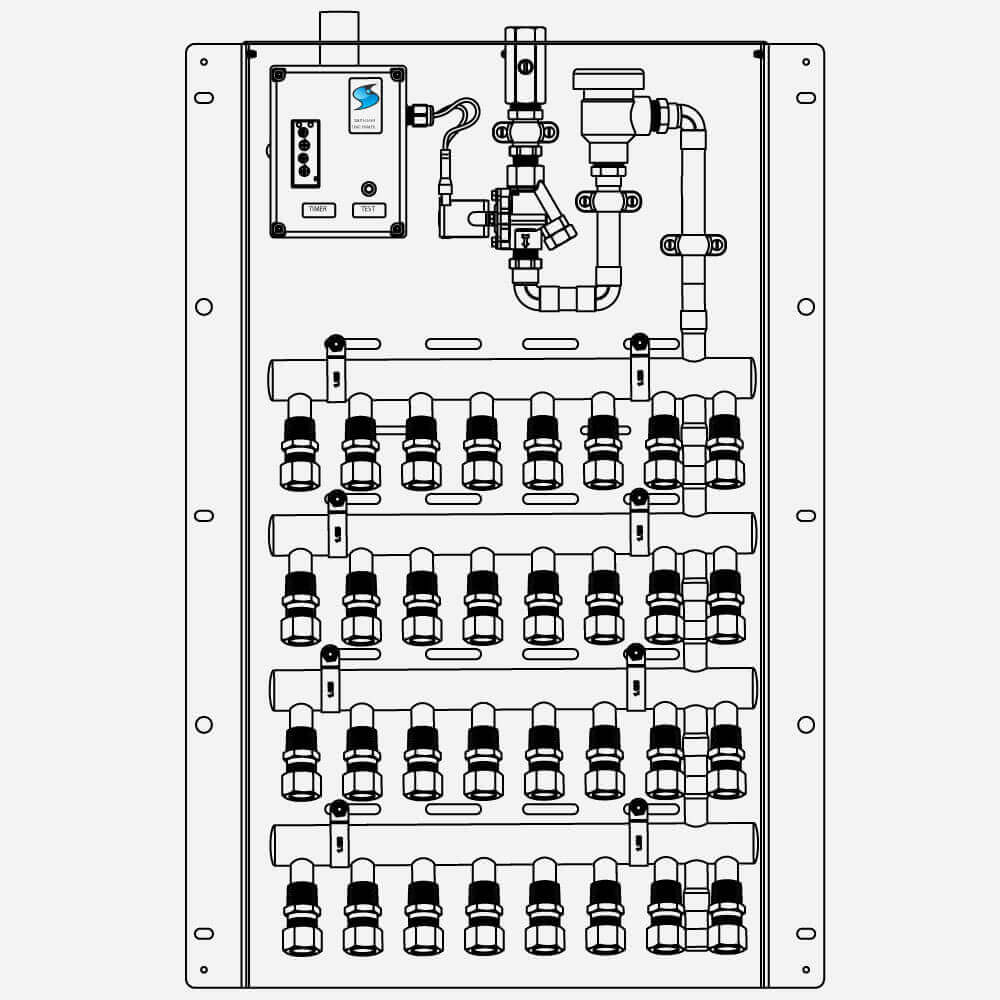

Figure Number 270FM Series [ submittal] Multi-port outlet assembly designed to prime 4 to 16 floor drain P-traps. Designed to inferface with Building Management System (BMS). Hardwire electrical connections provided. Figure Number 271FM Series [ submittal] Multi-port outlet assembly designed to prime 16 to 24 floor drain P-traps. Designed to inferface with BMS. Hardwire electrical connections provided. Figure Number 272FM Series [ submittal] Multi-port outlet assembly designed to prime 24 to 32 floor drain P-traps. Designed to inferface with BMS. Hardwire electrical connections provided.
