Model 2683
Branch Style Trap Priming Distribution Unit

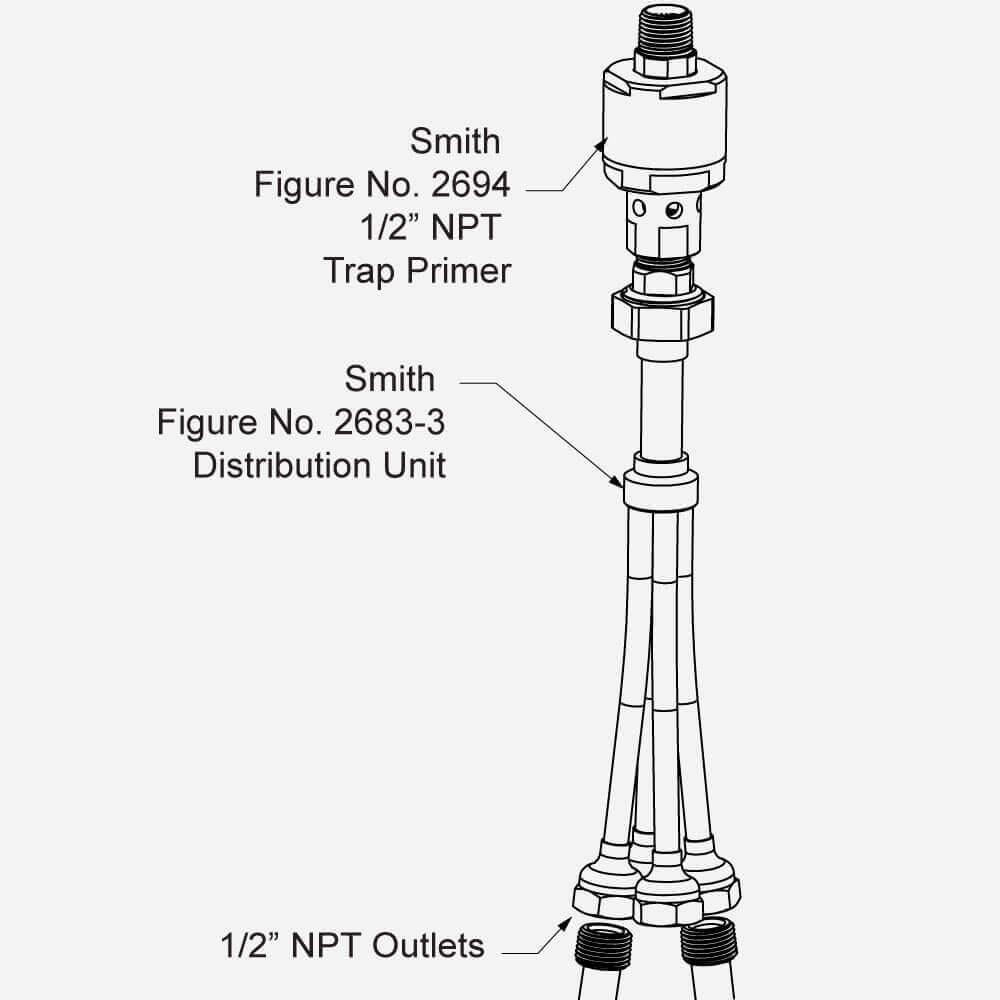

The distribution unit simply and effectively primes up to four floor drain traps with one trap primer. The distribution unit connnects with the trap primer and can be provided with various outlet connections.
Branch Distribution Unit feature:
- Branches are flexible for ease of connection
- Water leaving the trap primer is distributed evenly between branches
- A variety of connection types are available
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Branch Style Trap Priming Distribution Units [2693-1, 2683-2, 2683-3, 2683-4, 2683-5, 2683-6] | 1 MB | |||
 | | Branch Style Trap Priming Distribution Units | 0 | 423 KB | ||
| | Brochure - Trap Primers, Distribution Units and other Accessories | 0 | 5 MB | ||
| | Flyer - Trap Primer, Distribution Units and other Accessories | 0 | 2 MB | ||
 | | Fluid Controls with Chris Rylant | 0 | 132 KB | ||
| | Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering | 0 | 132 KB | ||
| | Fluid Controls Distribution Units Overview with Chris Levins | 0 | 133 KB | ||
| | Fluid Controls - Trap Primers & Distribution Units with Chris Levins | 0 | 133 KB |
Specifications
| Compliance/Certifications | cUPC, IAPMO IGC 178 |

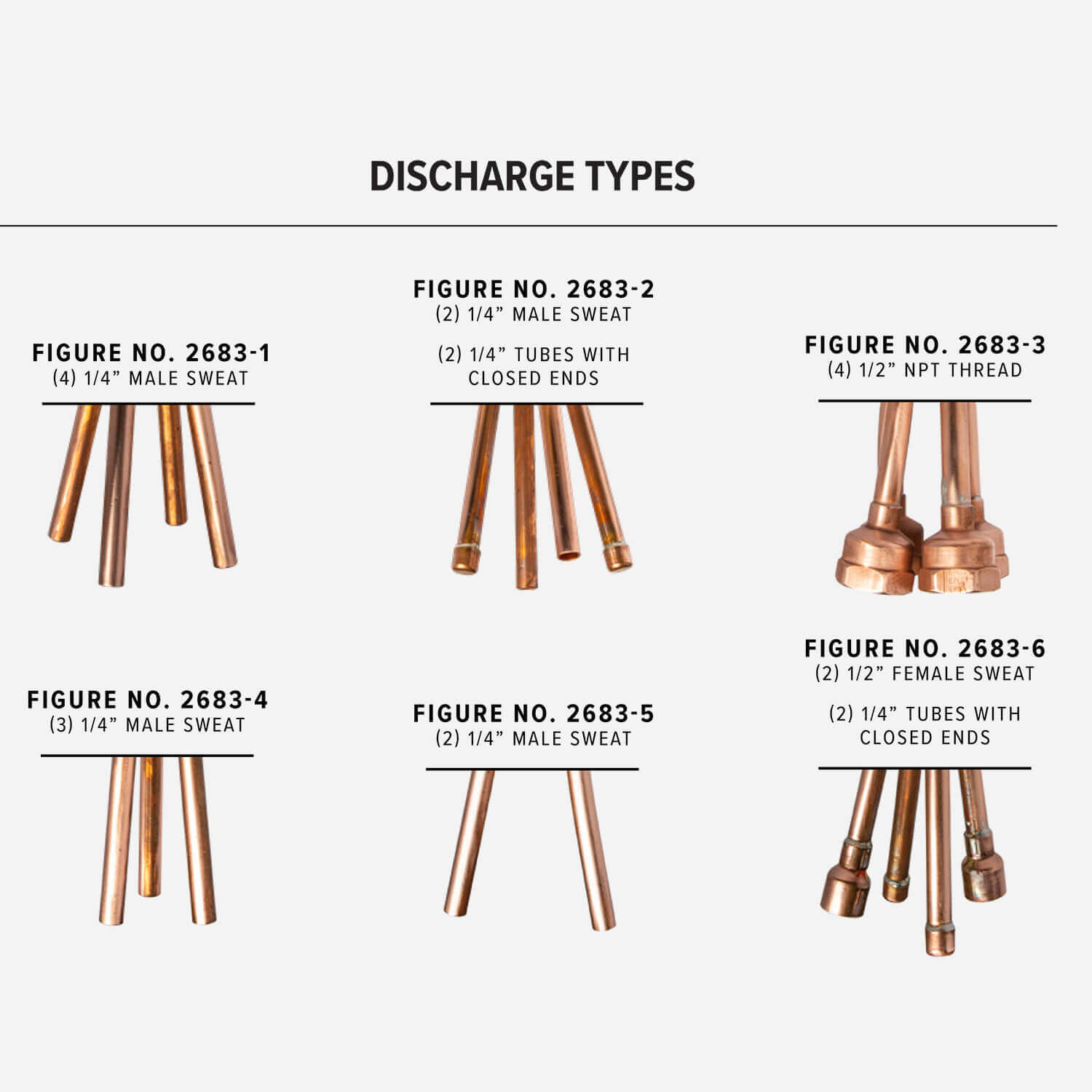

Models
2683-1 | (4) 1/4" Male Sweat End Outlets
2683-2 | (4) 1/4" Sweat Plain Ends (2) Closed Ends
2683-3 | (4) 1/2" NPT Outlets
2683-4 | (3) 1/4" Male Sweat End Outlets
2683-5 | (2) 1/4" Male Sweat End Outlets
2683-6 | (2) 1/2" Female Sweat Outlets (2) Closed Ends
