Model 280
Air Gap Fitting
An air gap is a vertical break between the supply pipe and the receiving source to provide backflow protection into the potable water system. The fitting is cast lead-free brass.
Smith air gap fittings feature:
- Protects water supply from cross connection
- Available in threaded or sweat connections
- Cast Brass construction
- Available with Nickel or Chrome plating
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Air Gap Fitting | 801 KB | |||
 | | Air Gap Fitting | 0 | 144 KB | ||
| | Brochure - Trap Primers, Distribution Units and other Accessories | 0 | 5 MB | ||
| | Flyer - Trap Primer, Distribution Units and other Accessories | 0 | 2 MB | ||
 | | Fluid Controls with Chris Rylant | 0 | 132 KB | ||
| | Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering | 0 | 132 KB | ||
| | Fluid Controls - Trap Primers & Distribution Units with Chris Levins | 0 | 133 KB |
Specifications
| Optional Materials | Chrome Plated -CP, Nickel Plated -NP |
Models
 |
 |
 |
| Figure Number 280 1/2" NPT Threaded Connections |

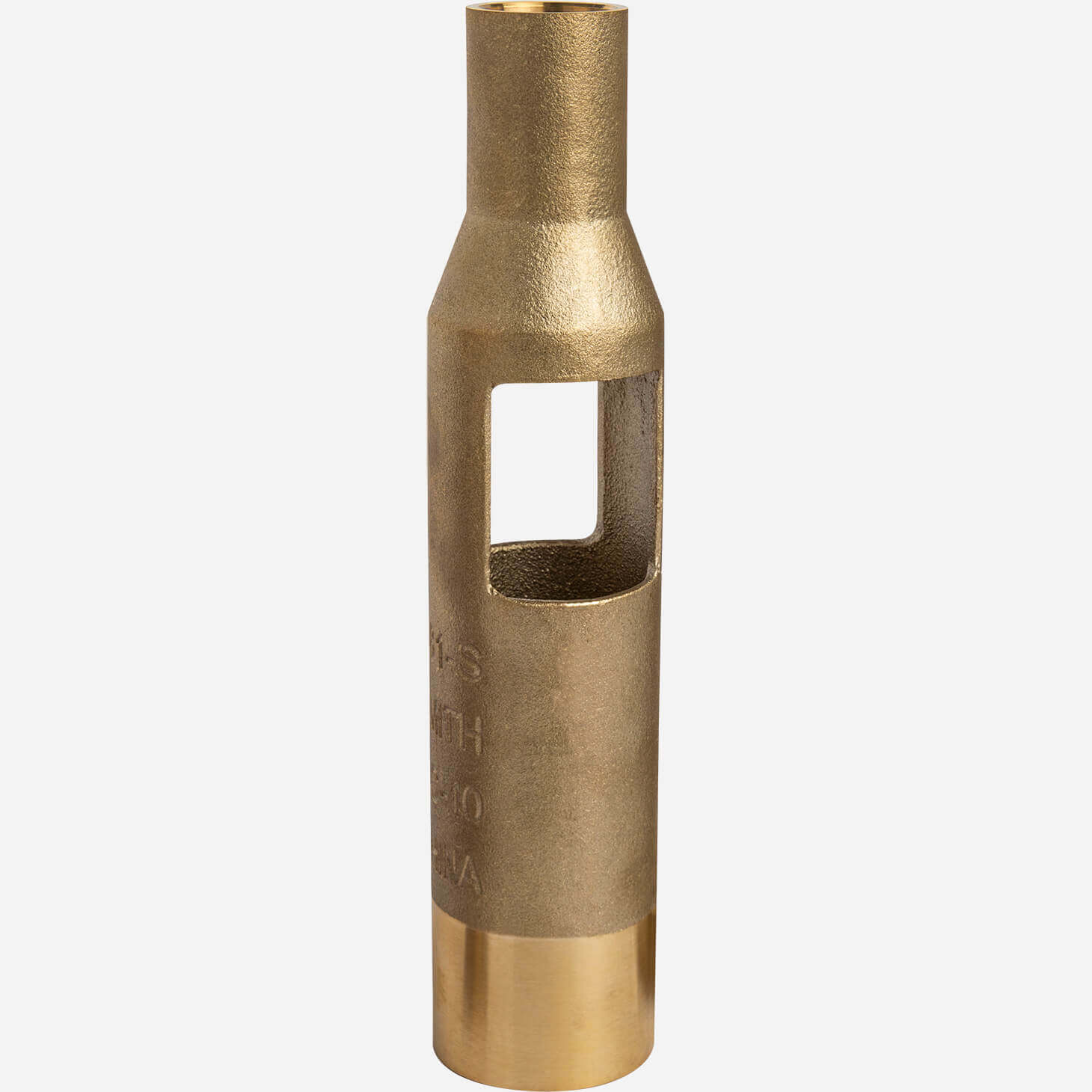

Figure Number 281-S 3/4" x 1-1/2" Sweat Connections |

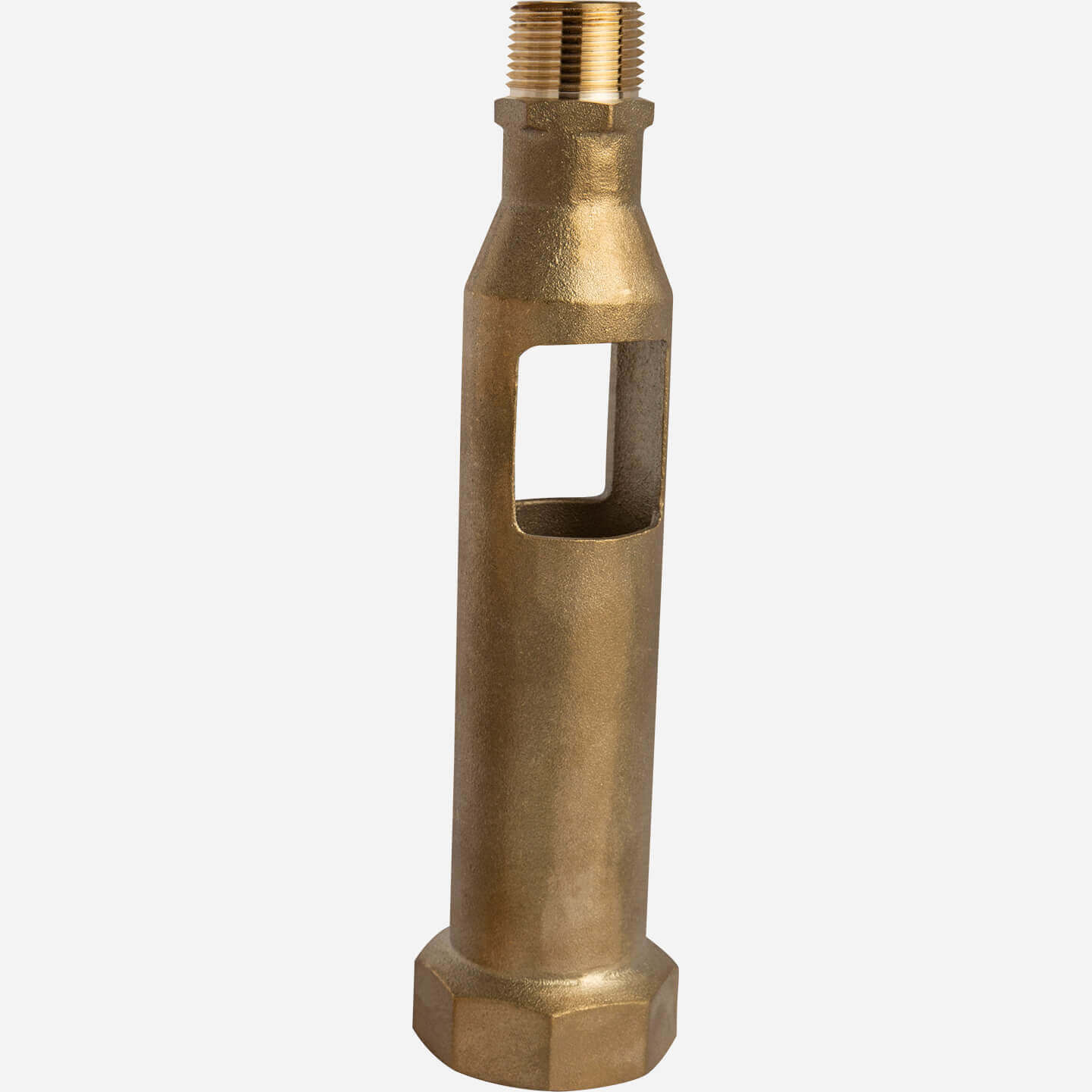

Figure Number 281-T 3/4" x 1-1/2" Threaded Connections |
