Model 3750 thru 3765
Round Top and Oval Funnel
The 8-1/4” by 3-1/4 oblong funnel provided with this medium duty drain may be secured anywhere to the drain’s 8-1/2”, or 12” diam. strainer head and is designed to catch wastewater from several waste pipes (indirect connections) while the remainder of the strainer serves the surrounding floor area. The Duco coated cast iron drain has an integral collar that can be specified for use as a flashing clamp for a watertight seal with flooring materials and is available with down or side outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Funnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Oval Funnel [3750C, 3750T, 3755C, 3755T, 3760C, 3760T, 3765C, 3765T] | 603 KB | |||
 | | Funnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Oval Funnel [3750C, 3750T, 3755C, 3755T, 3760C, 3760T, 3765C, 3765T] | 0 | 61 KB | ||
| | Article: Considerations to be Addressed When Selecting Sanitary Floor Drains | 0 | 271 KB | ||
| | Specifications for Sanitary Floor Drains | 0 | 328 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data | 0 | 599 KB | ||
| | Order Guidelines for Sanitary Floor Drains | 0 | 116 KB | ||
| | 0 | 1 MB |
Specifications
| Variations | L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only on Bottom Outlet Drains, Secured Grate -SG, Sediment Bucket -B, 6"(150) Dia. Funnel (Fig. 3581), 6(150) x 2 1/2(64) x 1"(25) High Oval Funnel (Fig. 3590), Vandal Proof -U - Secured Grate, Y NO-HUB - (Available on Bottom Outlet Drains), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Chrome Plated -CP - Grate and Funnel, Nickel Bronze -NB - Grate and Funnel, Polished Bronze -PB - Grate and Funnel |
| Product Type | Sanitary Floor, Area and Indirect Waste Drain |
Models
Funnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Oval Funnel

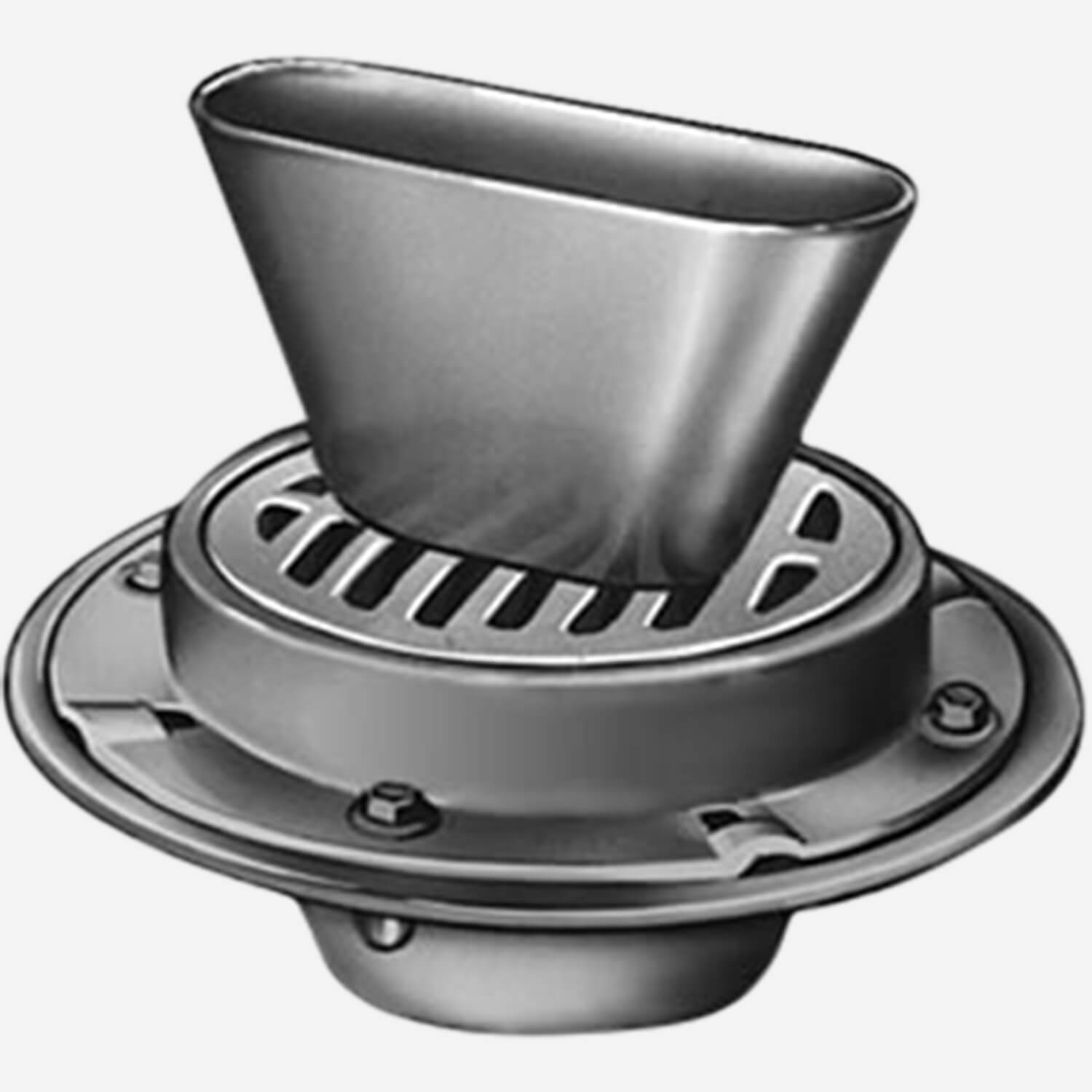

Bottom Outlet
8-1/2" Round Top
3750C | Caulk Outlet
3750T | Threaded Outlet
12" Round Top
3755C | Caulk Outlet
3755T | Threaded Outlet

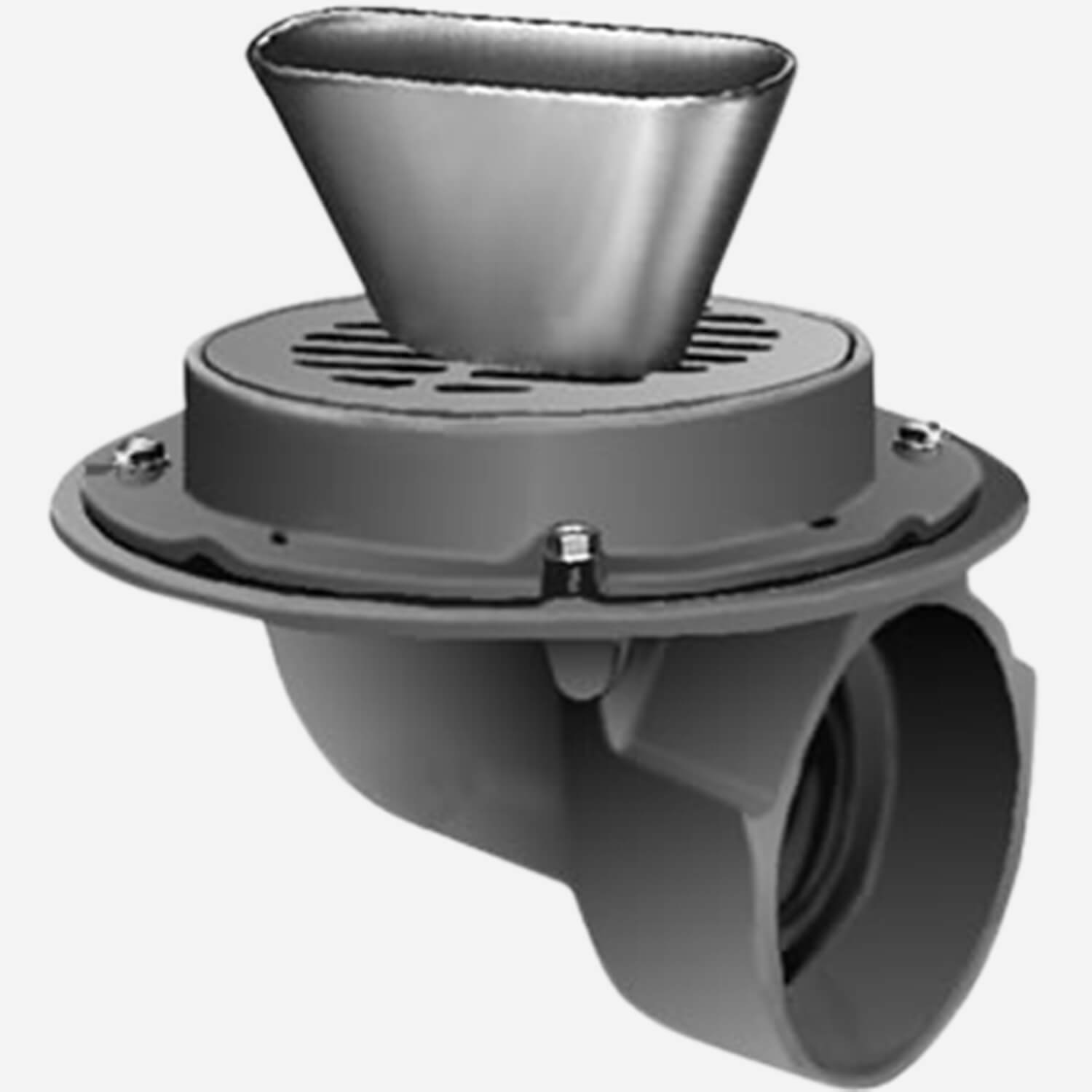

Side Outlet
8-1/2" Round Top
3760C | Caulk Outlet
3760T | Threaded Outlet
12" Round Top
3765C | Caulk Outlet
3765T | Threaded Outlet
