Sani-Ceptor® Can Washing Sanitary Floor Drains

Find A Representative
Figure 3370
Submittal
Submittal 3370, 3371 Waste Drain
3370 Preview
Model 3370

Sani-Ceptor® Can Washing Sanitary Floor Drains

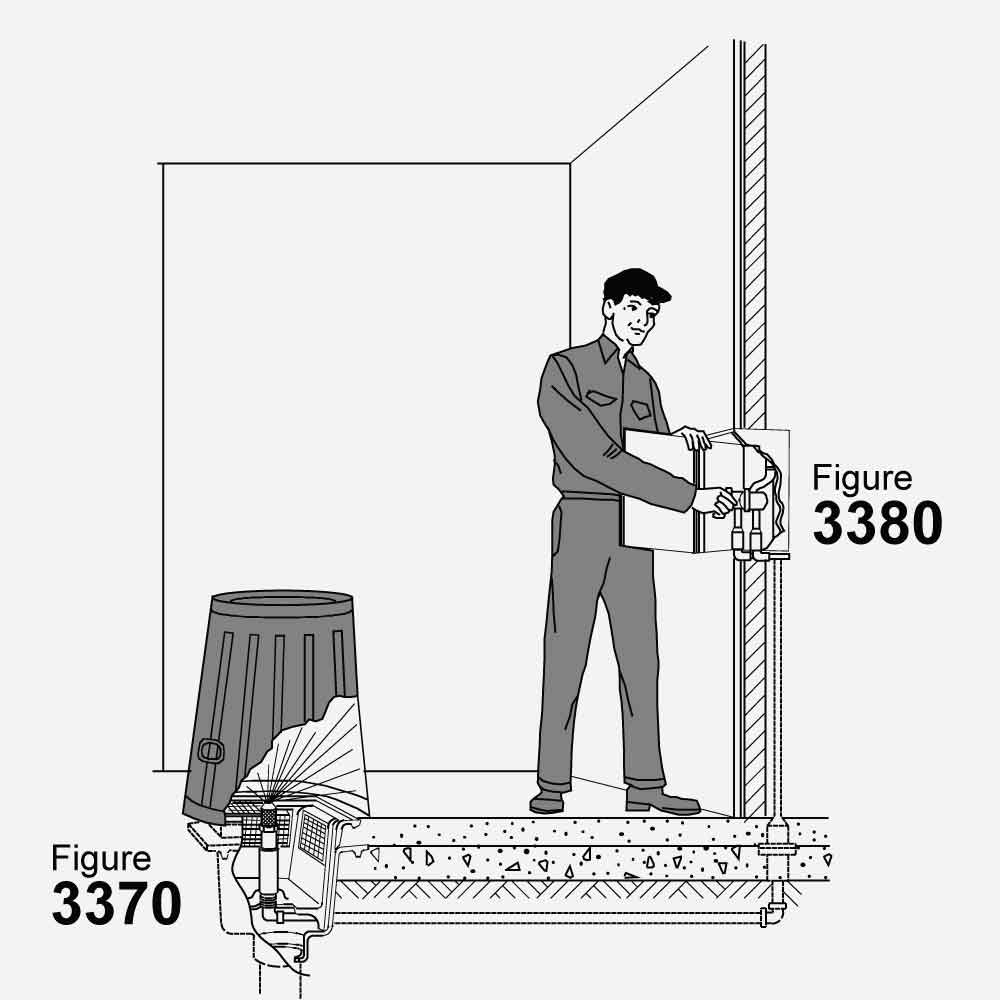

Our exclusive 12-1/2" square Sani-Ceptor® Can Washing Floor Drain is fitted with a "single orifice" spray nozzle that can be set from driving fine mist to solid stream to scour waste thoroughly can interiors. This unique drain's durable cast iron receptacle is specially coated for abrasion and chemical attack. Waste solids are kept from entering drain lines by a free-standing aluminum sediment bucket just below the drain corrosion-resistant nickel bronze rim and grate.

Standard figure is 3370, it is available with caulk outlet or No-Hub outlet. Figure 3371Y features a 14-Gauge Stainless Steel Body with No. 4 Finish Interior, Stainless Steel Grate, No-Hub Outlet

Figure 3380 is available providing a Water Supply Control Box.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal 3370, 3371 Waste Drain
Sani-ceptor® Can Washing Floor Drains [Cast-Iron Body with A.R.C Interior, Nickel Bronze Rim and Grate 3370C | Caulk Outlet; 3370Y | No-Hub Outlet; 3371Y | 14 Gauge Stainless Steel Body with No. 4 Finish Interior with Stainless Steel Grate, No-Hub Outlet]880 KB
drawing/dwg icon
Drawings
drawing/dwg icon
3370, 3371 Drain (dwg)
Sani-ceptor® Can Washing Floor Drains [Cast-Iron Body with A.R.C Interior, Nickel Bronze Rim and Grate 3370C | Caulk Outlet; 3370Y | No-Hub Outlet; 3371Y | 14 Gauge Stainless Steel Body with No. 4 Finish Interior with Stainless Steel Grate, No-Hub Outlet]69 KB
RFA icon
Revit/BIM/ITM Files
RFA icon
3370 Drain Revit Drawing
Sani-ceptor® Can Washing Floor Drains [Cast-Iron Body with A.R.C Interior, Nickel Bronze Rim and Grate 3370C | Caulk Outlet; 3370Y | No-Hub Outlet; 3371Y | 14 Gauge Stainless Steel Body with No. 4 Finish Interior with Stainless Steel Grate, No-Hub Outlet]740 KB
PDF icon
Technical Data Sheets
PDF icon
Article: Considerations to be Addressed When Selecting Sanitary Floor Drains
Article: Considerations to be Addressed When Selecting Sanitary Floor Drains271 KB
RTF icon
Specifications
RTF icon
Specifications for Sanitary Floor Drains
Specifications for Sanitary Floor Drains328 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Manuals
PDF icon
Technical Data for Sanitary Floor Drains
Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data599 KB
PDF icon
Ordering
PDF icon
Order Guidelines for Sanitary Floor Drains
Order Guidelines for Sanitary Floor Drains116 KB
PDF icon
Parts Manuals
PDF icon
Parts Order Guide for Sanitary Floor Drains
1 MB

Specifications

VariationsFlashing Clamp -C, LXH Speedi-Set® Extra Heavy - (3370 Series only), L Speedi-Set® Service Weight - (3370 Series Only), (2) 3/8” (10) Tappings -TAP
Optional MaterialsPolished Bronze Rim and Grate -PB (3370 Series Only)
Product TypeSanitary Floor, Area and Indirect Waste Drain

Models

Sani-ceptor® Can Washing Floor Drain

3370C | Cast-Iron Body with A.R.C Interior, Nickel Bronze Rim and Grate, Caulk Outlet
3370Y | Cast-Iron Body with A.R.C Interior, Nickel Bronze Rim and Grate, No-Hub Outlet
3371Y | 14 Gauge Stainless Steel Body with No. 4 Finish Interior, Stainless Steel Grate, No-Hub Outlet

Specify pipe size | 02(50), 03(75), or 04(100)
