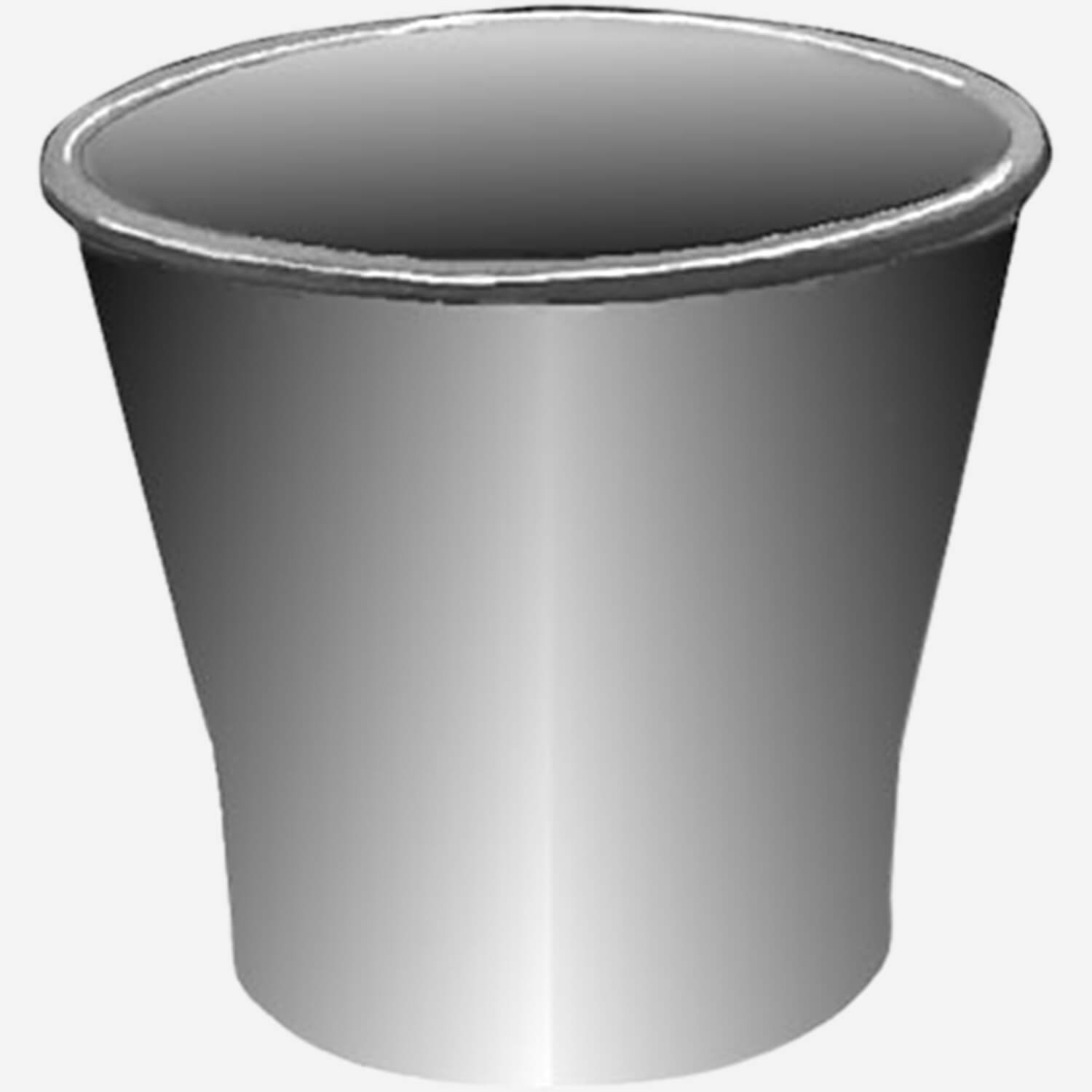

Name: Drip and Condensate Funnel, Bottom and Side Outlet
Brand: Jay R. Smith Mfg. Co.
SKU: 3811 thru 3834

Model 3811 thru 3834

Drip and Condensate Funnel, Bottom and Side Outlet

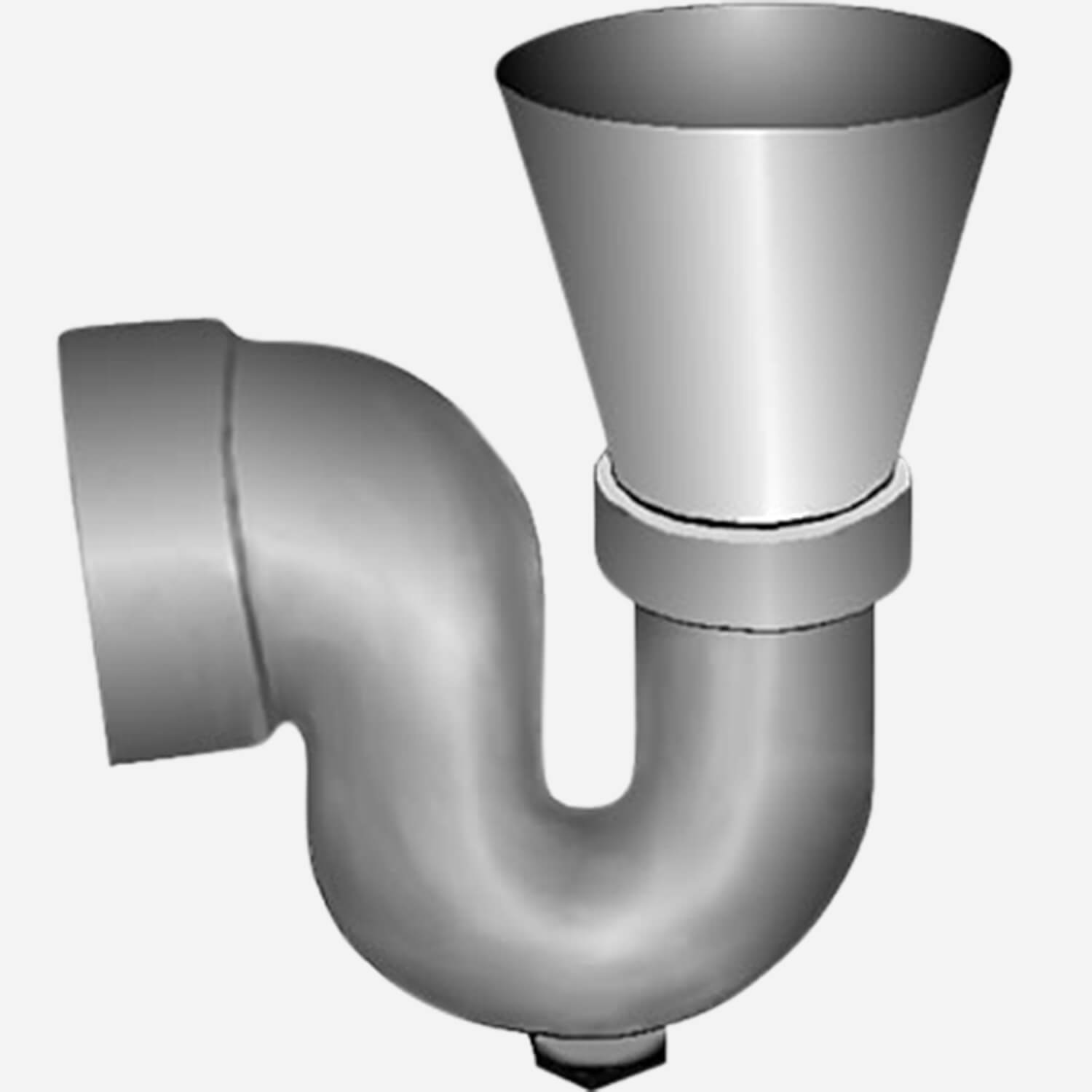

These drip and condensate funnels are available in 4”, 6”, 7” 8”, and 10” diameters and several corrosion resistant materials. The are designed to catch wastewater from disconnected outlets overhead (an indirect connection) without splashing and are ideal for installation in hospitals and industrial laboratories. It is recommended that these funnels are threaded to "P" traps to prevent sewer gases from entering the facility.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 3811-3824 Funnel Drain	Drip and Condensate Funnels [Caulk Bottom Outlet 3811C, 3812C, 3813C, 3814C; Threaded Side Outlet 3821T, 3822T, 3823T, 3824T]	419 KB
Drawings	3811-3824 Funnel Drain (dwg)	Drip and Condensate Funnels [Caulk Bottom Outlet 3811C, 3812C, 3813C, 3814C; Threaded Side Outlet 3821T, 3822T, 3823T, 3824T]	63 KB
Drawings	3831-3834 Funnel Drain (dwg)	Drip and Condensate Funnels - 4" Diameter Funnel Opening Size, Threaded Side Outlet [3831T, 3832T, 3833T, 3834T]	68 KB
Submittals	Submittal 3831-3834 Funnel Drain	Drip and Condensate Funnels - 4" Diameter Funnel Opening Size, Threaded Side Outlet [3831T, 3832T, 3833T, 3834T]	505 KB
Technical Data Sheets	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	271 KB
Specifications	Specifications for Sanitary Floor Drains	Specifications for Sanitary Floor Drains	328 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Sanitary Floor Drains	Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data	599 KB
Ordering	Order Guidelines for Sanitary Floor Drains	Order Guidelines for Sanitary Floor Drains	116 KB
Parts Manuals	Parts Order Guide for Sanitary Floor Drains		1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Aluminum Dome Bottom Strainer -DBS, Dome Bottom Strainer -DBS - (Same finish and materials as described by Figure No.), Less Cleanout (Fig. 3820 Series only), Front Cleanout (Fig. 3820 Series only), NO-HUB Adaptor - 02(50), 03(75), 04(100), 06"(150) Sizes Only, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
Optional Materials	All Galvanized -G
Product Type	Sanitary Floor, Area and Indirect Waste Drain

Models

Drip and Condensate Funnels

Caulk Bottom Outlet; Funnel Opening Sizes 6", 7", 8", 10" Diameter
3811C | Cast Iron with Acid-Resistant Interior and Exterior
3812C | Duco-Coated Cast Iron
3813C | Cast Bronze
3814C | Polished Chrome-plated Cast Bronze

Threaded Side Outlet, 4" Diameter Funnel
3821T | Cast Iron with Acid-Resistant Interior and Exterior
3822T | Duco-Coated Cast Iron
3823T | Cast Bronze
3824T | Polished Chrome-plated Cast Bronze

4" Diameter Funnel Opening Size, Threaded Side Outlet
3831T | Cast Iron with Acid-Resistant Interior and Exterior
3832T | Duco-Coated Cast Iron
3833T | Cast Bronze
3834T | Polished Chrome-plated Cast Bronze
