Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Extra Deep Receptor and ARC Rectangular Non-Traffic Top

Find A Representative
Model 3482
Submittal
Submittal 3482, 3483 Drain (pdf)
View
Model 3482

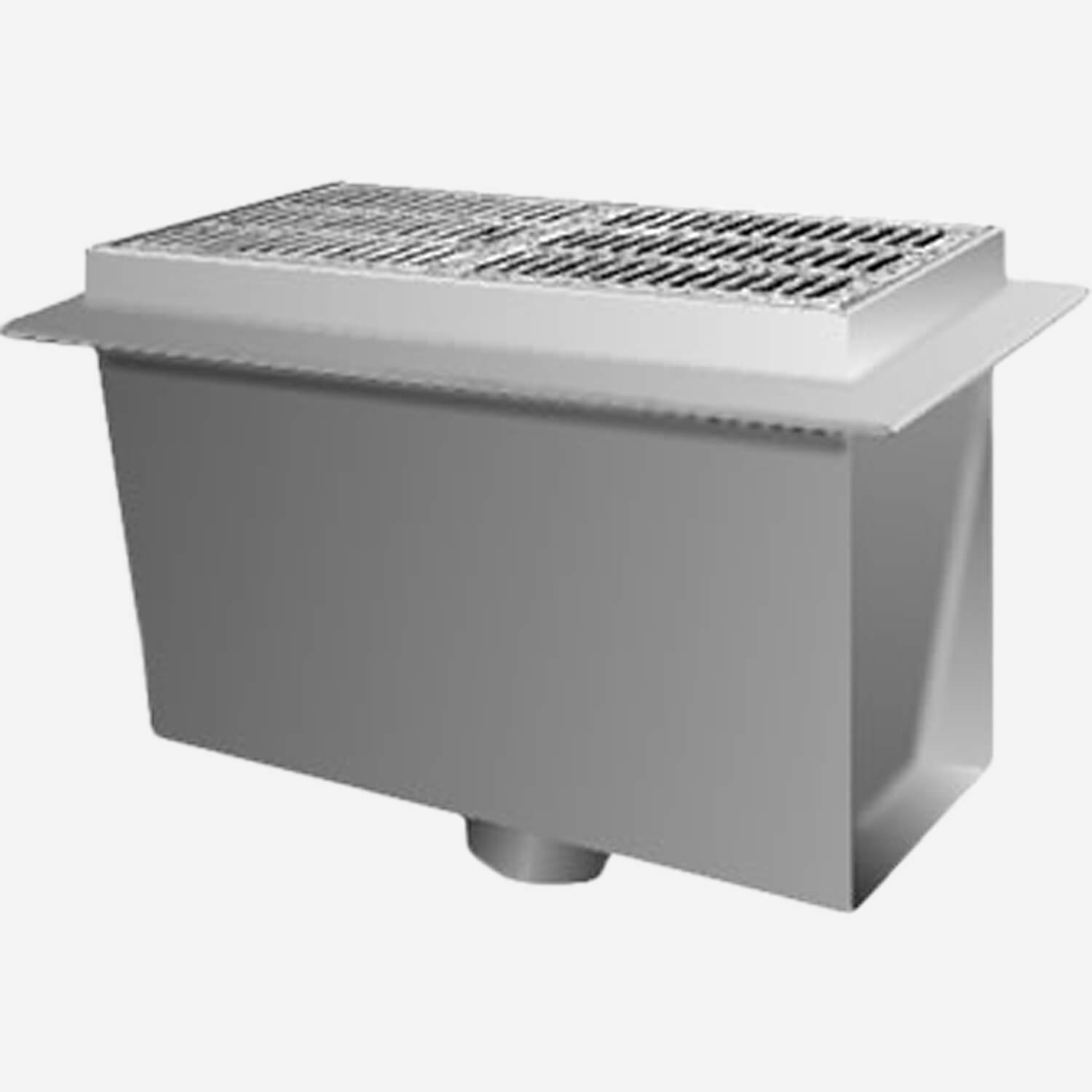

Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Extra Deep Receptor and ARC Rectangular Non-Traffic Top

Engineered for long service life in commercial food handling facilities, schools, and hospitals, our 12” by 24” Sani-Ceptor® fabricated steel floor drain is specially coated for acid resistance where the highest standard of sanitation is required. Designed to fit under counters and near walls away from foot or other traffic, the extra deep 17” drain body has an integral flange which accepts an optional flashing clamp permitting installation in many construction types. Covered by a loose set grate, this drain is available with an aluminum dome bottom strainer or stainless steel sediment bucket to keep drain lines debris free.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Submittals
PDF icon
Submittal 3482, 3483 Drain (pdf)
Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 24" x 12" Top - 17" Depth Receptor [With Dome Bottom Strainer 3482C | Caulk Outlet; 3482Y | No-Hub Outlet; With Sediment Bucket 3483C | Caulk Outlet; 3483Y | No-Hub Outlet]500 KB
drawing/dwg icon
Drawings
drawing/dwg icon
3482 Drain (dwg)
Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 24" x 12" Top - 17" Depth Receptor [With Dome Bottom Strainer 3482C | Caulk Outlet; 3482Y | No-Hub Outlet; With Sediment Bucket 3483C | Caulk Outlet; 3483Y | No-Hub Outlet]056 KB
PDF icon
Technical Data Sheets
PDF icon
Article: Considerations to be Addressed When Selecting Sanitary Floor Drains
Article: Considerations to be Addressed When Selecting Sanitary Floor Drains0271 KB
RTF icon
Specifications
RTF icon
Specifications for Sanitary Floor Drains
Specifications for Sanitary Floor Drains0328 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today07 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)0718 KB
PDF icon
Manuals
PDF icon
Technical Data for Sanitary Floor Drains
Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data0599 KB
PDF icon
Ordering
PDF icon
Order Guidelines for Sanitary Floor Drains
Order Guidelines for Sanitary Floor Drains0116 KB
PDF icon
Parts Manuals
PDF icon
Parts Order Guide for Sanitary Floor Drains
01 MB

Specifications

VariationsFlashing Clamp -C, Acid Resistant Coated Flat Bottom Strainer -FBS, Acid Resistant Coated 1/2 Grate (Suffix -12), (2) 3/8” (10) Tappings -TAP, Vandal Proof Screws -U
Optional MaterialsAll Galvanized -G, All Duco Coated Receptor -CI
Product TypeSanitary Floor, Area and Indirect Waste Drain

Models

With Dome Bottom Strainer
3482C | Caulk Outlet
3482Y | No-Hub Outlet

With Sediment Bucket
3483C | Caulk Outlet
3483Y | No-Hub Outlet

SUFFIX FOR OPTIONAL TOP GRATES/COVERS FOR INDIRECT WASTE APPLICATIONS
-10 | Less Grate
-12 | 1/2 Grate
-13 | 3/4 Grate
-14 | Grate with 2-1/2" Square Center Hole
-41 | Solid Cover
-42 | 1/2 Solid Cover
-43 | 3/4 Solid Cover
-44 | Solid Cover with 2-1/2" Square Center Hole
