PVC Roof Drains

Name: PVC Roof Drains
Brand: Jay R. Smith Mfg. Co.
SKU: 101 - 102

Find A Representative

Figure 101 - 102

Submittal

Submittal 101, 102 Roof Drain (pdf)

Model 101 - 102

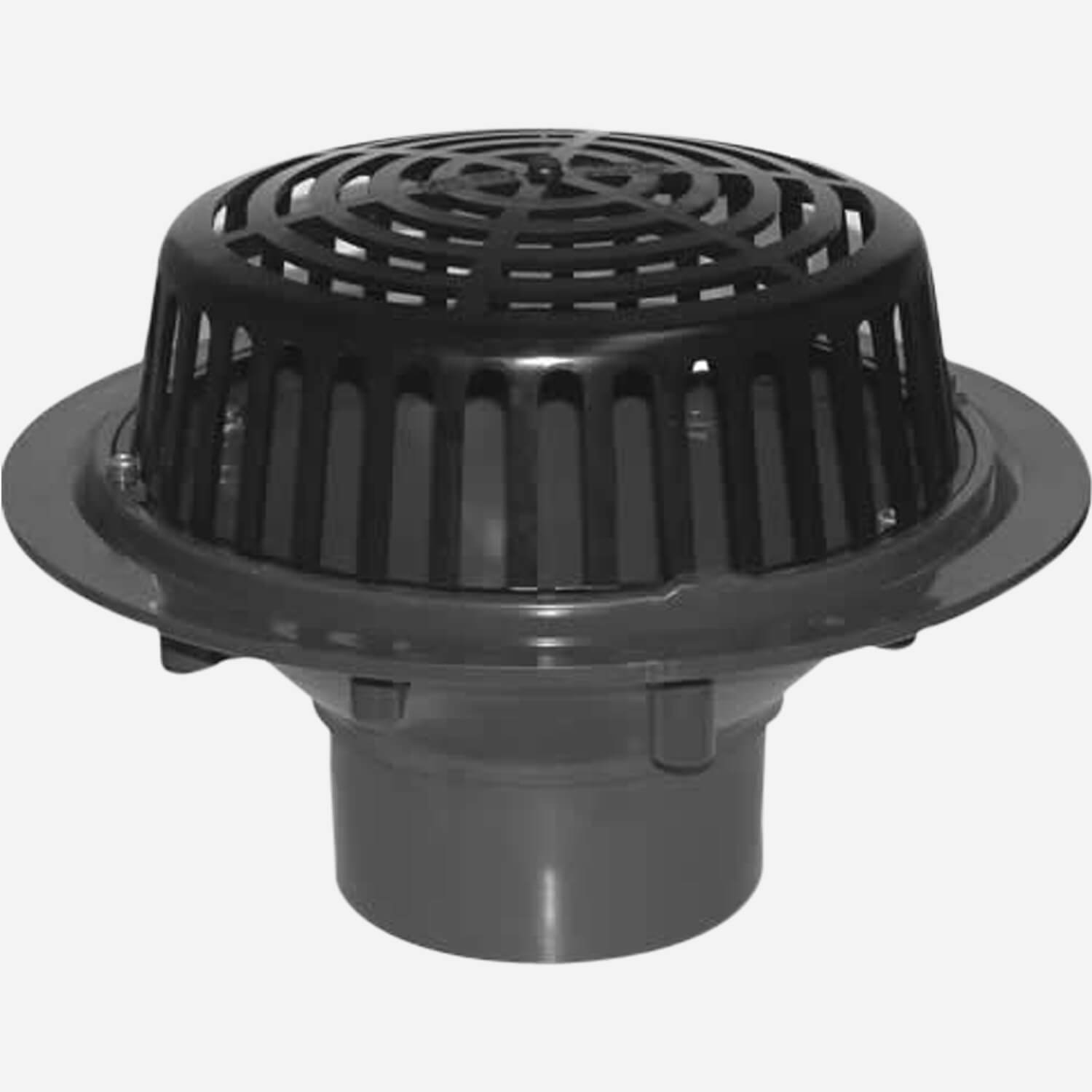

PVC Roof Drains

These roof drains are constructed of long wearing PVC and designed for installation on flat roofs. They each have a deep sump and a combined flashing clamp and gravel stop that create a watertight, secure, and puncture-free hold with roofing materials. Each is available with an ABS strainer dome for additional drainage system protection.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 101, 102 Roof Drain (pdf)	Roof Drain and Accessories [Roof Drain with Hub Outlet 101-H02, 101-H03, 101-H04; 101-10 \|Collar; 101-11 \| PVC Dome; 101-12 \| Clamp; 102-S06 \| PVC Roof Drain, 6" Spigot Outlet; 102-10 \| Collar; 102-11 \| Dome; 102-12 \| Clamp]	526 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Ordering	Order Guidelines for Light Commercial Roof Drains		70 KB
Unknown	Stainless Steel - Best In Class Ad (pdf)	Stainless Steel - Best In Class Ad (pdf)	391 KB
Videos	JRS Products Overview (video)	An Overview of JRS Products - Products for Light Commercial and Design Build Projects.	133 KB

Can't find what you are looking for? Get in touch

Models

101-H02 | PVC Roof Drain with Dome 2" Hub Outlet Size
101-H03 | PVC Roof Drain with Dome 3" Hub Outlet Size
101-H04 | PVC Roof Drain with Dome 4" Hub Outlet Size
101-10 | PVC Flashing Collar for 2", 3" & 4" Drain
101-11 | PVC Dome for 2", 3" & 4" Drain
101-12 | Steel Under Deck Clamp for 2", 3" & 4" Drain

102-S06 | PVC Roof Drain with ABS Dome, 6" Spigot Outlet
102-10 | PVC Flashing Collar for 6" Drain
102-11 | ABS Dome for 6" Drain
102-12 | Steel Under Deck Clamp for 6" Drain
