Model 5830
Flush Boxed Ground Hydrant

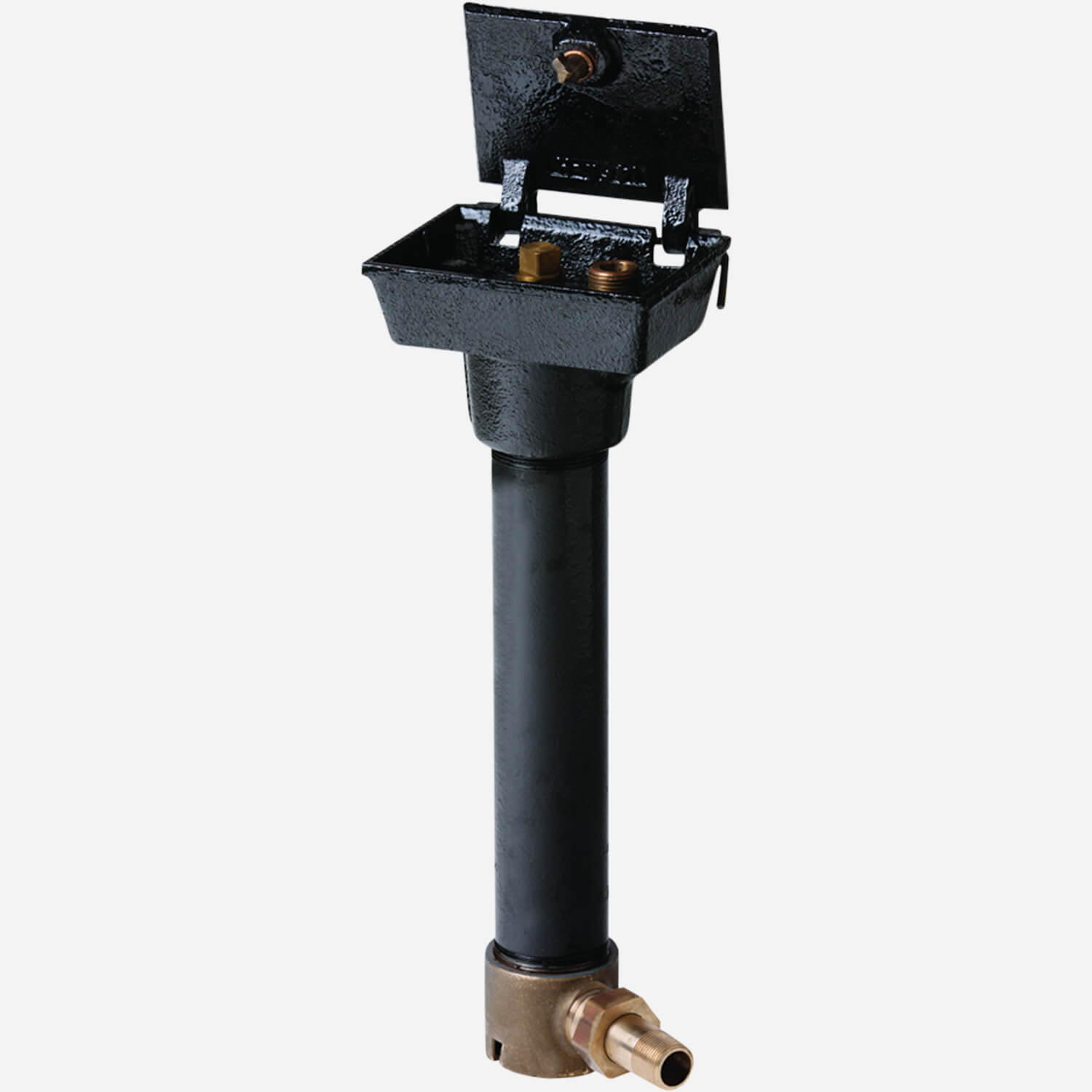

Developed for inconspicuous and tamper proof placement, this hydrant's locking cast iron hinged lid is designed for installation flush with adjacent hard and soil-type surfaces. Under the lid, below grade, the hydrant's brass 3/4" hose connection, valve control, and valve casing are encased in cast iron that has been enamel coated against corrosion. The casing extends below the frost line, ensuring freeze-proof operation, where it is capped by a solid brass 3/4" inlet. Field serviceable parts are easily accessible from the top of the hydrant.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Boxed Ground Hydrant [Figure 5830 | 3/4" (19 mm) Connection; Figure 5831 | 1" (25 mm) Connection] | 714 KB | |||
 | | Flush Boxed Ground Hydrant | 0 | 175 KB | ||
 | | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 262 KB | ||
| | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 209 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 0 | 2 MB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 0 | 6 MB | ||
 | | Flush Boxed Ground Hydrant | 0 | 128 KB | ||
| | Technical Data of Hydrants | 0 | 265 KB | ||
| | Order Guidelines for Hydrants | 0 | 118 KB |
Specifications
| Product Type | Hydrant |
| Variations | Depth of Bury [2 ft (610 mm); 3 ft (915 mm); 4 ft (1,220 mm); 5 ft (1,525 mm); 6 ft (1,830 mm)] |
