Name: Pro-Set Upright with Acid Resistant Coated Exposed Arms with Offset Arms for Enameled Iron Service Sinks with Cast Iron under Basin - Floor Mounted
Brand: Jay R. Smith Mfg. Co.
SKU: 0871

Model 0871

Pro-Set Upright with Acid Resistant Coated Exposed Arms with Offset Arms for Enameled Iron Service Sinks with Cast Iron under Basin - Floor Mounted

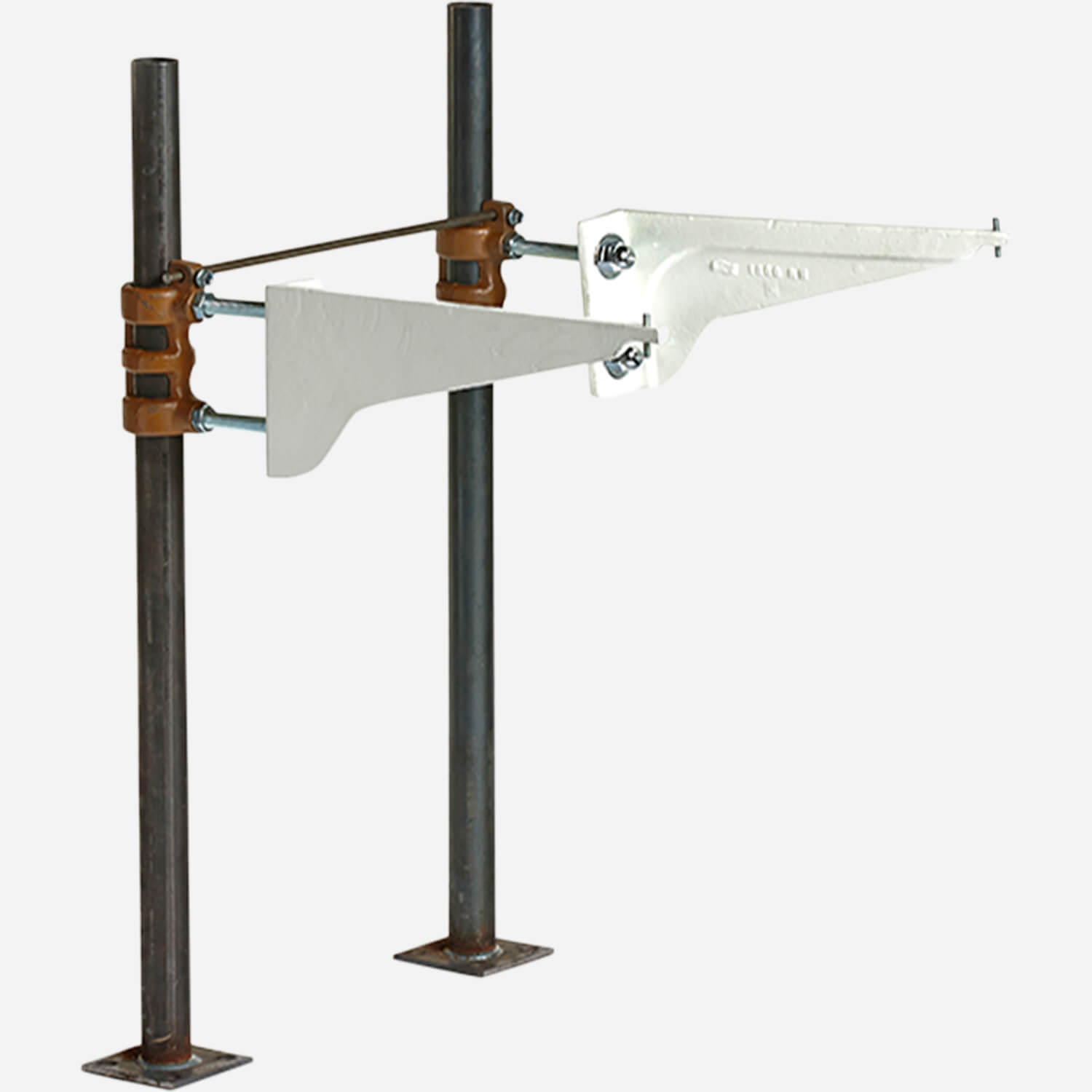

Our rigid floor mounted (Pro-Set) supports are fabricated of epoxy coated heavy gauge steel uprights welded to pre-drilled steel bases. Adjustable sleeves clamp onto the uprights when height specifications are met. Support arms coated for acid resistance are bolted to the sleeves and are visible under the lavatory upon installation. Leveling screws can be adjusted from underneath the arms to ensure a precise installation. Toggle bolts secure the lavatory to the arms.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
BIM/CAD/Revit	0871 Lav Support (dwg)	Heavy Duty Sink Supports - Floor Mounted with Acid-Resistant Coated Exposed Offset Arms for Enamel Iron Service Sinks with Cast Lugs Under Basin, "Pro-Set" Upright	37 KB

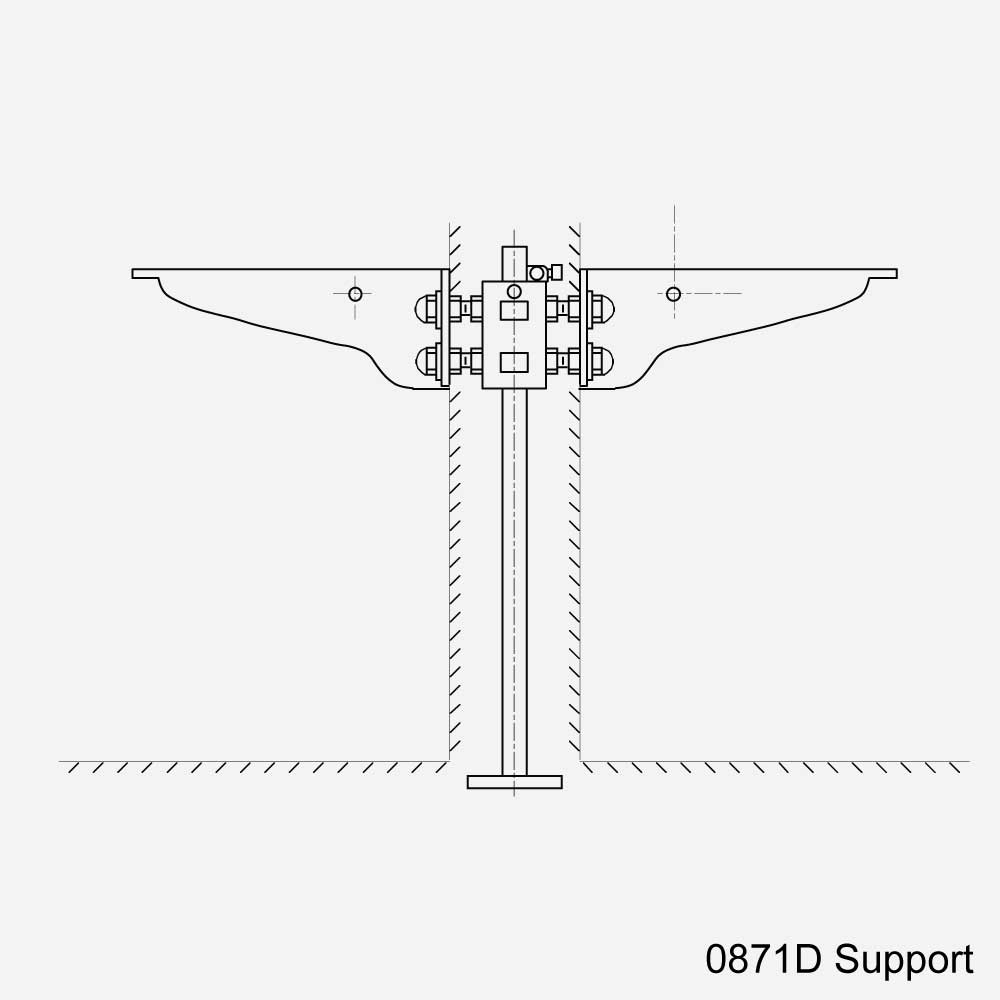

BIM/CAD/Revit	0871D Lav Support (dwg)	Heavy Duty Sink Supports - Floor Mounted with Acid-Resistant Coated Exposed Arms & Pro-Set" Upright - Back to Back	55 KB
Submittals	Submittal 0871 Lav Support (pdf)	Heavy Duty Sink Supports - Floor Mounted with Acid-Resistant Coated Exposed Offset Arms for Enamel Iron Service Sinks with Cast Lugs Under Basin, "Pro-Set" Upright	378 KB
Submittals	Submittal 0871D Lav Support (pdf)	Heavy Duty Sink Supports - Floor Mounted with Acid-Resistant Coated Exposed Arms & "Pro-Set" Upright - Back to Back	442 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Cross References	Cross Ref Standard Fixture Support vs LaborSaver®	Cross Ref Standard to Labor Saver Fixture Support	242 KB
Manuals	Technical Data for Lavatory Supports	Technical Data for Lavatory Supports	493 KB
Ordering	Order Guidelines for Lavatory Supports	Order Guidelines for Lavatory Supports	120 KB
Parts Manuals	Parts Order Guide for Lavatory Supports	Parts Order Guide for Lavatory Supports	749 KB
Specifications	Specifications for Lavatory Supports	Specifications for Lavatory Supports	142 KB
