Name: Labor Saver® Upright with Offset Arms for High Back Enameled Iron Lavatories - Floor Mounted
Brand: Jay R. Smith Mfg. Co.
SKU: 0762

Model 0762

Labor Saver® Upright with Offset Arms for High Back Enameled Iron Lavatories - Floor Mounted

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

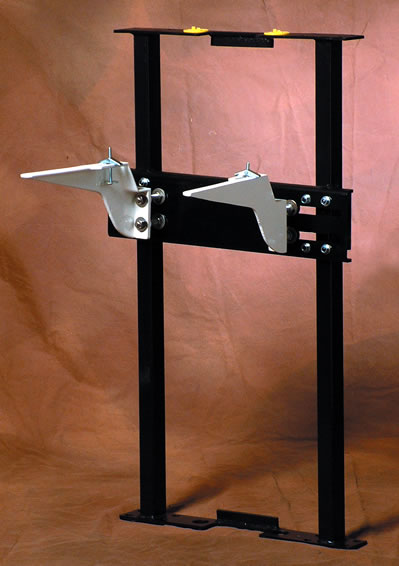

The welded, unitized frame of our Labor Saver® floor mounted lavatory supports for high back enameled iron lavatories drastically speeds and simplifies installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. A vertically and horizontally adjustable steel plate clamps onto the frame’s uprights to meet rough-in height specifications. Support arms coated for acid resistance are bolted to the plate and remain visible under the lavatory upon installation. Leveling screws can be adjusted from underneath the arms to ensure a precise installation.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.
