Labor Saver® Upright with Acid Resistant Coated Arms for Flat Slab and High Back Lavatories - Floor Mounted
Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

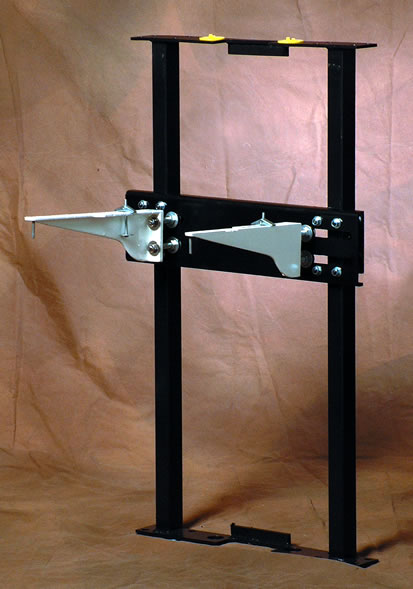

The welded, unitized frame of our Labor Saver® floor mounted lavatory support drastically speeds and simplifies installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. A vertically and horizontally adjustable steel plate clamps on to the frame’s uprights when height specifications are met. Support arms coated for acid resistance are bolted to the plate and remain visible under the lavatory upon installation. Leveling screws can be easily adjusted from underneath the arms to ensure a precise installation. Toggle bolts secure the lavatory to the support arms.
Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Submittal 0760 Support | 382 KB | ||
 | | DWG 0760 Support | 94 KB | ||
| | DWG 0760D Support | 94 KB | ||
| | Submittal 0760D Support | 391 KB | ||
| | Submittal 0761 Support | 378 KB | ||
| | Submittal 0761D Support | 392 KB | ||
| | Article: Labor Saver® | 142 KB | ||
| | Specifications for Lavatory Supports | 142 KB | ||
| | Flyer Lavatory Support | 2 MB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Case Study Federal Building Installation Labor Saver® | 58 KB | ||
| | Case Study Lourdes Hospital Labor Saver® | 153 KB | ||
| | Case Study Pre-Fabrication Battery Installation Labor Saver® | 52 KB | ||
 | | 39 KB | |||
| | Technical Data for Lavatory Supports | 493 KB | ||
| | Quote Worksheet Smith Drainage Systems | 39 KB | ||
| | Order Guidelines for Lavatory Supports | 120 KB | ||
| | Parts Order Guide for Lavatory Supports | 749 KB | ||
 | | Video Labor Saver® | 132 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 5 MB | ||
| | Quote Worksheet Smith Drainage Systems | 39 KB |
Specifications
| Product Type | Lavatory and Sink Support |
| Patent | 6,360,381 |
| Benefit | Labor Saving |
