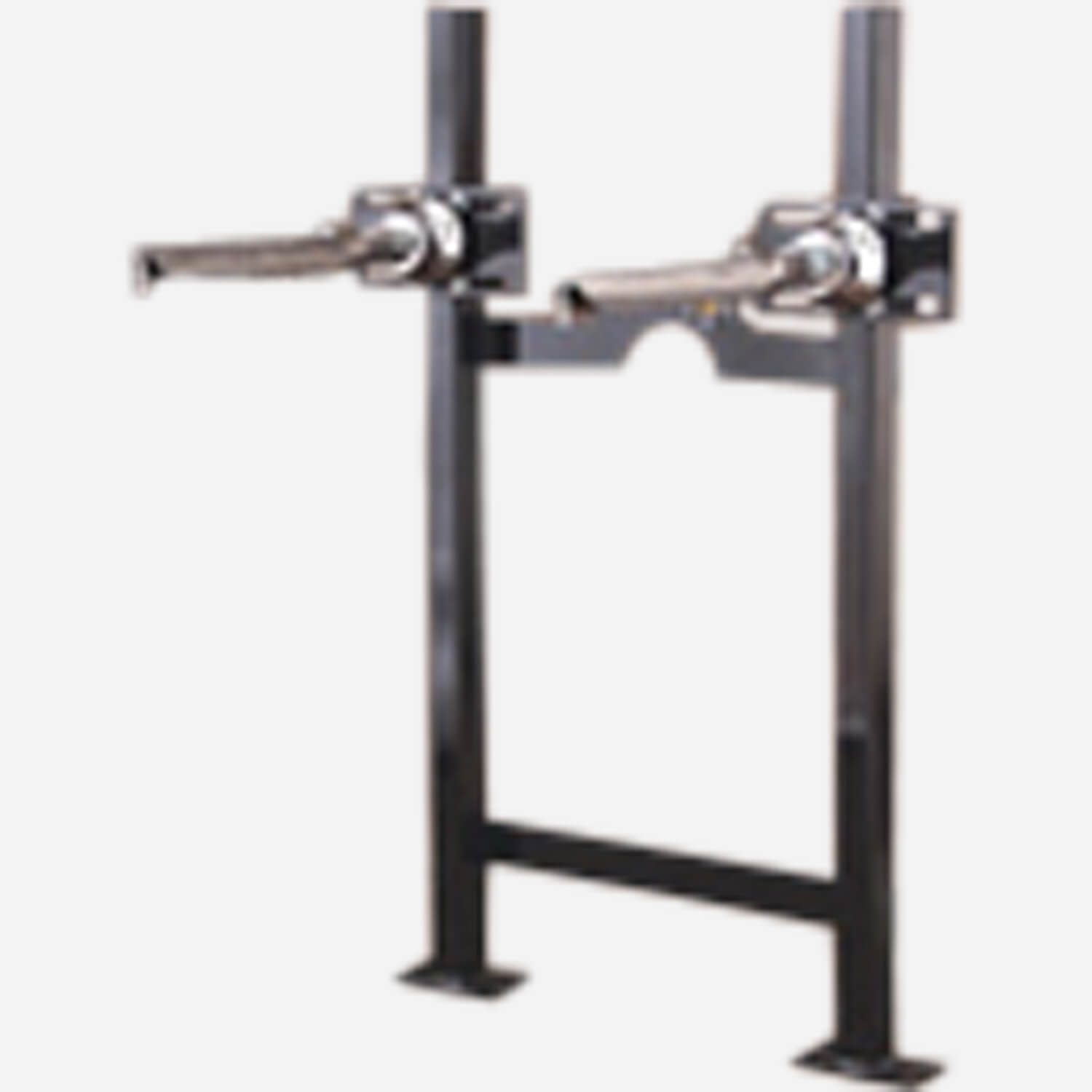

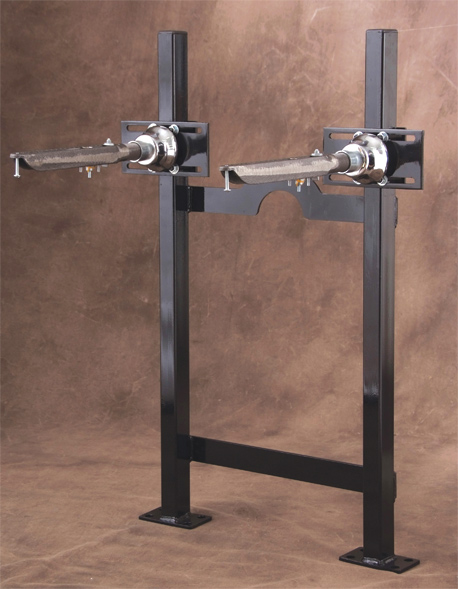

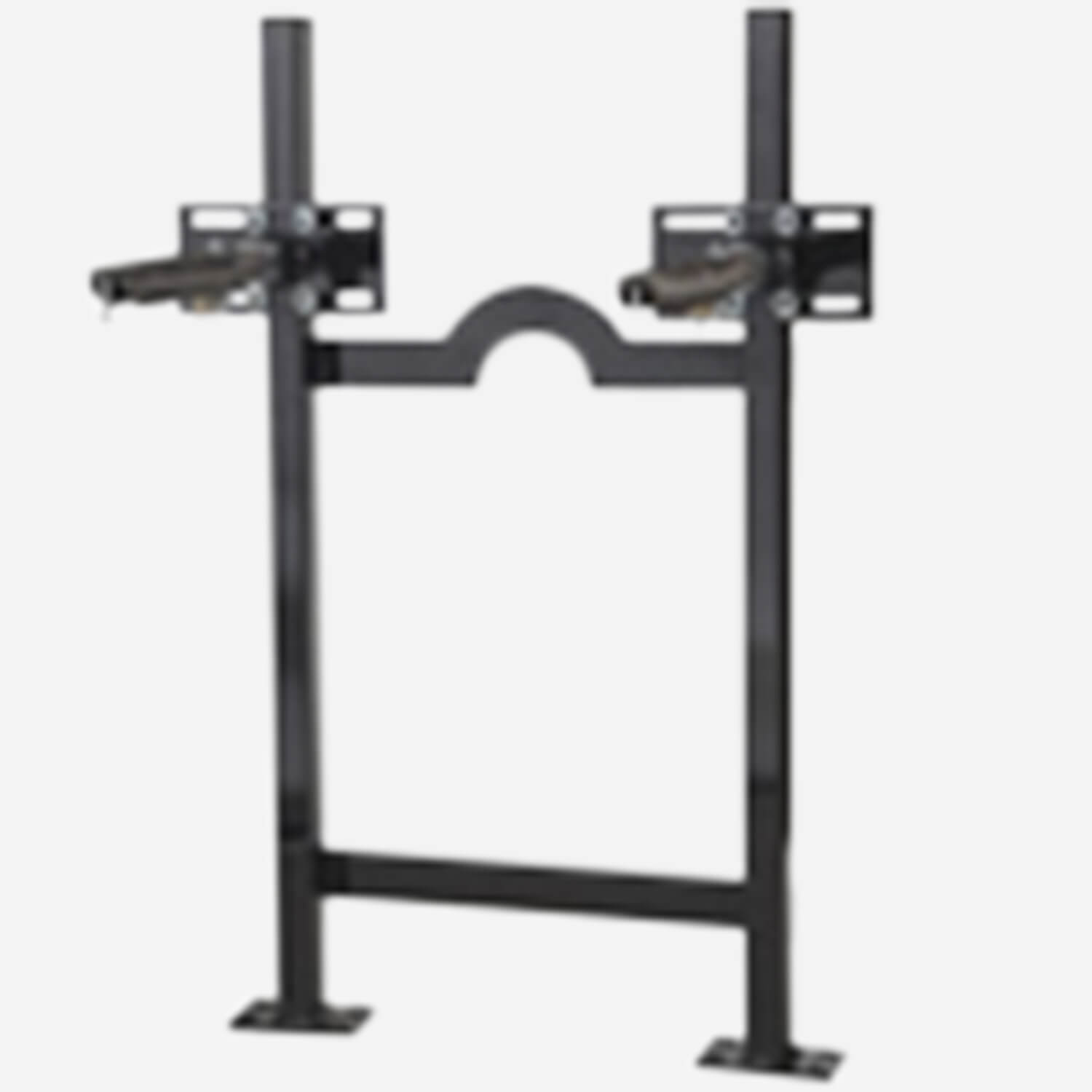

Labor Saver® Support for High Back Lavatories - Floor Mounted

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations

The rigid, one-piece frame of our Labor Saver® floor mounted supports for high back lavatories drastically speed and simplify installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. Adjustable steel sleeves clamp onto the frame’s uprights when height specifications are met. These sleeves are internally threaded to permit horizontal adjustment of the threaded arms. To ensure that the lavatory is solidly affixed to the concealed support arms, our Sure-set locking device easily adjusts from underneath the lavatory to firmly grip its inner wall while leveling screws ensure a precise installation.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.
