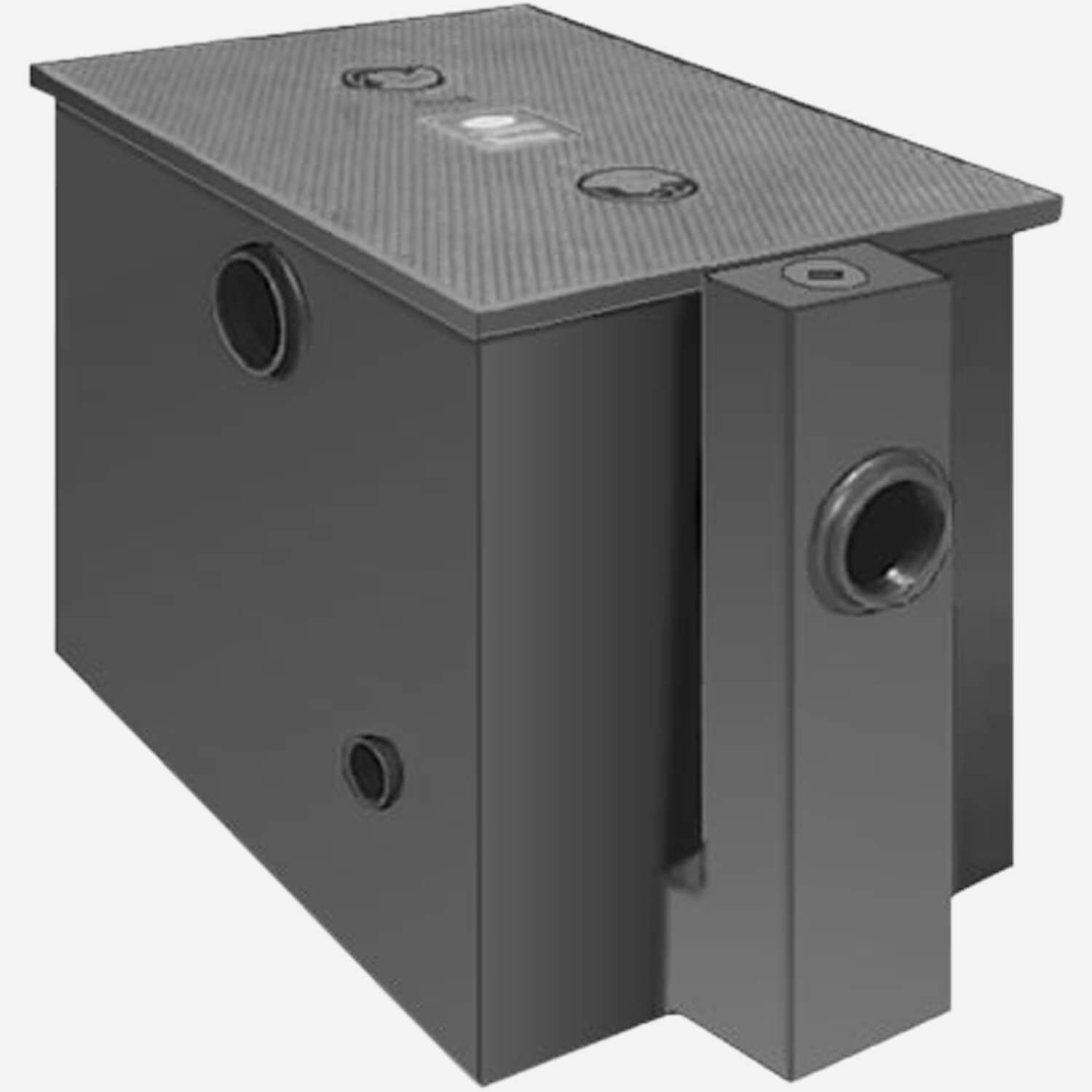

Model 8560
Large Capacity Steel Oil Interceptors
This large capacity, fabricated steel, oil interceptor is used in large garages, service areas, and industrial plants where wastewater laden with oil and sediment must be intercepted. The intercepted oils are drawn off by gravity to a storage tank or container. Any sediment which is included in the discharge is collected in a large sediment bucket and periodically removed. Interceptors should not be located directly in trafffic areas. If required, please specify an extra heavy duty traffic cover.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Submittal 8560 Interceptor | 579 KB | ||
 | | DWG 8560 Interceptor | 682 KB | ||
| | DWG 8560E Interceptor | 320 KB | ||
| | Submittal 8560E Interceptor | 1014 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Brochure Guide to Interception | 250 KB | ||
| | Technical Data for Interceptors | 196 KB | ||
| | Parts Order Guide for Interceptors | 2 MB | ||
| | Order Guidelines for Interceptors | 120 KB | ||
| | Large Capacity Steel Oil Interceptor | 993 KB |
Specifications
| Variations | Anchor Flange -F, Traffic Rated Cover -H20, Flange with Flashing Clamp -F-C, NO-HUB Adaptor - (4) Required, Traffic Rated Cover -H20, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Acid Resistant Coating Inside -ARI, Acid Resistant Coating Outside - ARO, Acid Resistant Coating Inside and Outside -ARIO, Aluminum Cover -AC |
| Product Type | Interceptor |
