Name: Oil Interceptors
Brand: Jay R. Smith Mfg. Co.
SKU: 8510

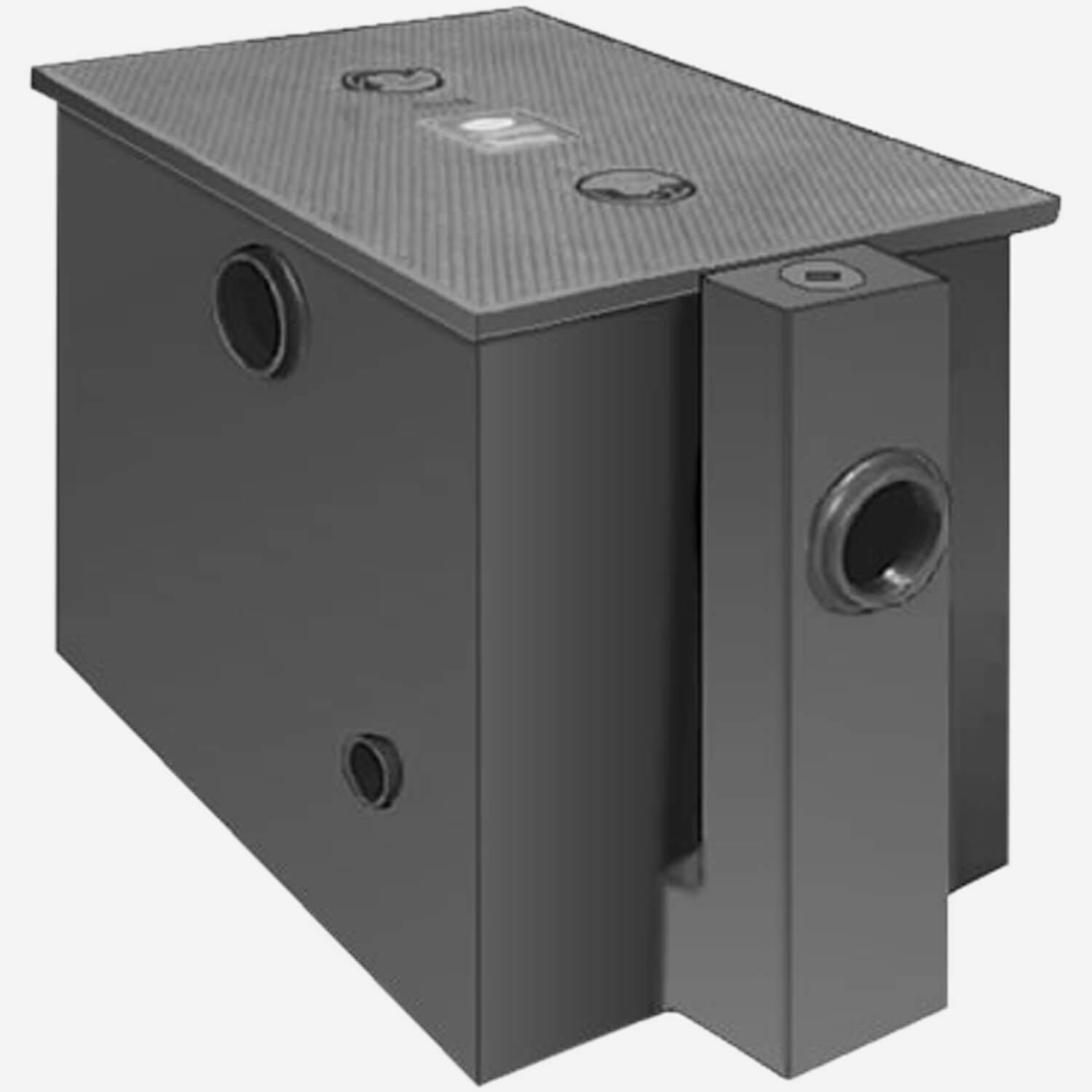

Model 8510

Oil Interceptors

This fabricated steel, oil interceptor is used in service stations, parking garages, and industrial plants where discharged water contains oil and sediment. The interceptor collects oil and conveniently permits the collected oil to be drained to a storage tank by means of an adjustable gravity draw-off connection. Sediment and chips are collected in a sediment bucket and should be periodically removed. Interceptors should not be located directly in traffic areas. If required, please specify an extra heavy duty traffic cover.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 8510 Interceptor	Submittal 8510 Interceptor	562 KB
Drawings	DWG 8510 Interceptor	DWG 8510 Interceptor	255 KB
Drawings	DWG 8510E Interceptor	DWG 8510E Interceptor	321 KB
Drawings	DWG 8500-SC Interceptor	DWG 8500 8500-SC Interceptor	119 KB
Revit/BIM/ITM Files	RFA 8510 Interceptor	RFA 8510 Interceptor	316 KB
Submittals	Submittal 8510E Interceptor	Submittal 8510E Interceptor	1 MB
Submittals	Submittal 8500-SC Interceptor	Submittal 8500 8500-SC Interceptor	876 KB
Submittals	Submittal d8510-E-CAN Interceptor (pdf)	Submittal d8510-E-CAN Interceptor (pdf)	779 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Guide to Interception Brochure (pdf)	Brochure Guide to Interception	250 KB
Ordering	Technical Data for Interceptors	Technical Data for Interceptors	196 KB
Parts Manuals	Parts Order Guide for Interceptors	Parts Order Guide for Interceptors	2 MB
Ordering	Order Guidelines for Interceptors	Order Guidelines for Interceptors	120 KB
Submittals (CANADA)	Submittal (Canada) 8510 Interceptor	Oil Interceptor	541 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Anchor Flange -F (Flange Available with Extension Only), Traffic Rated Cover -H20, Flange with Flashing Clamp -F-C, NO-HUB Adaptor - (4) Required, Steel Extension -E (Specify Height), (2) 3/8” (10) Tappings -TAP
Optional Materials	Acid Resistant Coating Inside -ARI, Acid Resistant Coating Outside - ARO, Acid Resistant Coating Inside and Outside -ARIO, Aluminum Cover -AC
Product Type	Interceptor
