Name: Large Capacity Grease Interceptors
Brand: Jay R. Smith Mfg. Co.
SKU: 8400

Model 8400

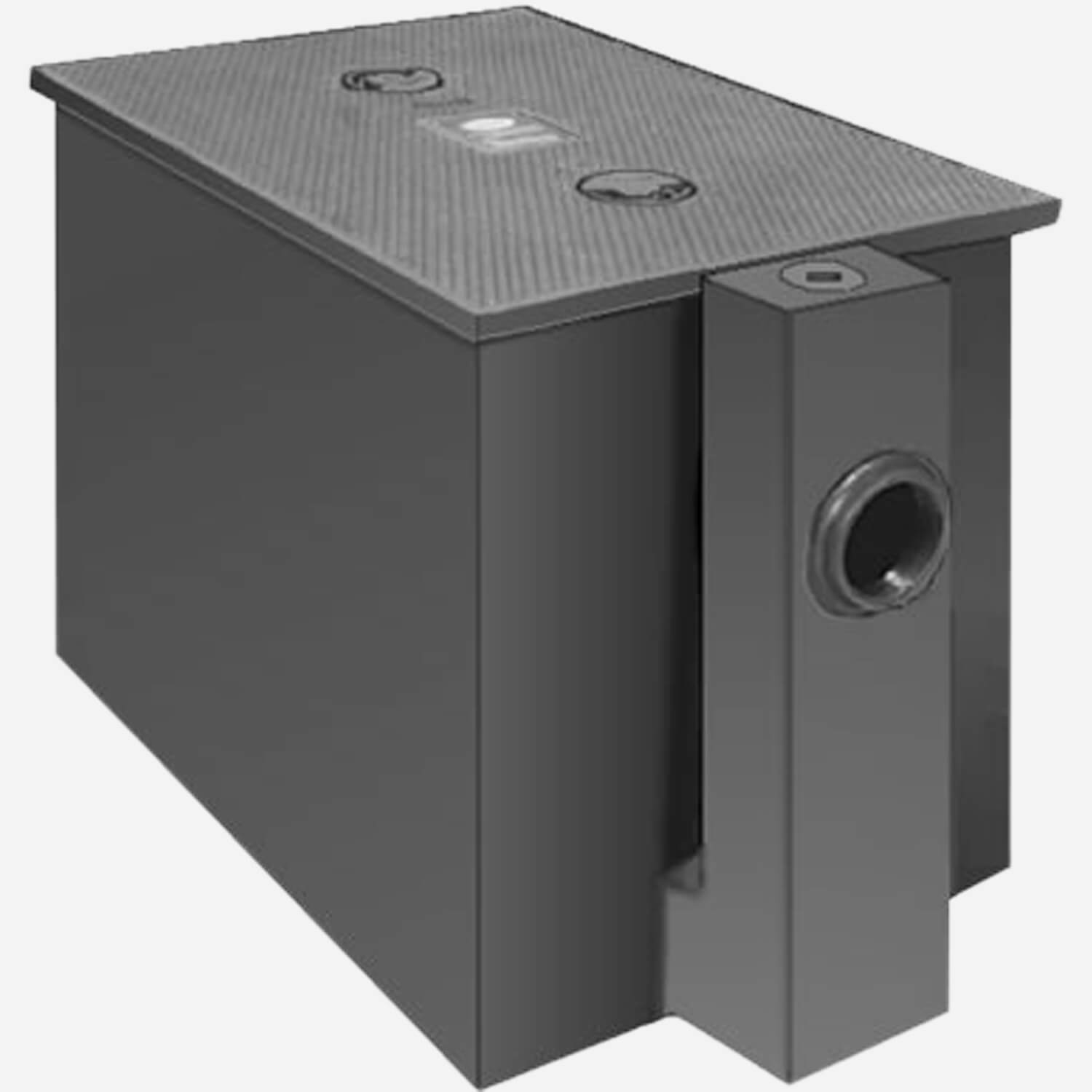

Large Capacity Grease Interceptors

This large capacity greace interceptor is ideal for large kitchens or institutions where there is an anticipated high rate of discharge of fats, oils, and greases (F.O.G.s) laden waste from the fixtures. F.O.Gs will solidify and build up in pipes and lead to blockages, backups, pipe bursts, and overflows. These large fabricated steel units available from 75 to 500 gallons per minute are most adaptable to industrial applications such as food processing and packaging plants.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 8400 Interceptor (pdf)	Large Capacity Grease Interceptors [8450 \| 75 gpm,Grease Capacity 150 lbs; 8460 \| 100 gpm, 200 lbs; 8465 \| 150 gpm, 300 lbs; 8470 \| 200 gpm, 400 lbs; 8475 \| 250 gpm, 500 lbs; 8480 \| 350 gpm, 700 lbs; 8490 \| 500 gpm, 1000 lbs]	583 KB
Drawings	DWG 8400 Interceptor	DWG 8400 Interceptor	67 KB
Revit/BIM/ITM Files	RFA 8400 Interceptor	RFA 8400 Interceptor	452 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Guide to Interception Brochure (pdf)	Brochure Guide to Interception	250 KB
Ordering	Technical Data for Interceptors	Technical Data for Interceptors	196 KB
Parts Manuals	Parts Order Guide for Interceptors	Parts Order Guide for Interceptors	2 MB
Ordering	Order Guidelines for Interceptors	Order Guidelines for Interceptors	120 KB
Submittals (CANADA)	Submittal (Canada) 8400 Interceptor	Large Capacity Grease Interceptor	570 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Anchor Flange -F, Extension -E - (Specify Height), Flange with Flashing Clamp -F-C, NO-HUB Adaptor - (2) Required, Sediment Bucket -B, Traffic Rated Cover -H20, (2) 3/8” (10) Tappings -TAP
Optional Materials	Acid Resistant Coating Inside -ARI, Acid Resistant Coating Outside - ARO, Acid Resistant Coating Inside and Outside -ARIO, Aluminum Cover -AC
Product Type	Interceptor

Models

Large Capacity Grease Interceptors
8450 | 75 gallons (283.91 liters) per minute Flow Rate, Grease Capacity 150 lbs (68.04 kg)
8460 | 100 gallons (378.54 liters) per minute Flow Rate, Grease Capacity 200 lbs (90.72 kg)
8465 | 150 gallons (567.81 liters) per minute Flow Rate, Grease Capacity 300 lbs (136.08 kg)
8470 | 200 gallons (757.08 liters) per minute Flow Rate, Grease Capacity 400 lbs (181.44 kg)
8475 | 250 gallons (946.35 liters) per minute Flow Rate, Grease Capacity 500 lbs (226.80 kg)
8480 | 350 gallons (1324.89 liters) per minute Flow Rate, Grease Capacity 700 lbs (317 51 kg)
8490 | 500 gallons (1892.71 liters) per minute Flow Rate, Grease Capacity 1000 lbs (453.59 kg)

Details

How Grease Interceptors Work

"The advantage of an interceptor is its proven track record and long-established acceptance by the plumbing industry."
– *PM Engineer Magazine

Learn about the importance of agrease trapor interceptor and how one works to keep plumbing functioning properly.

A grease trap (or grease interceptor) is a plumbing device (a type of trap) designed to intercept most greases and solids before they enter a wastewater disposal system. These units reduce the amount of fats, oils, and greases (FOGs) that enter sewers.
