Stack or Wall Sleeves

Name: Stack or Wall Sleeves
Brand: Jay R. Smith Mfg. Co.
SKU: 1720

Find A Representative

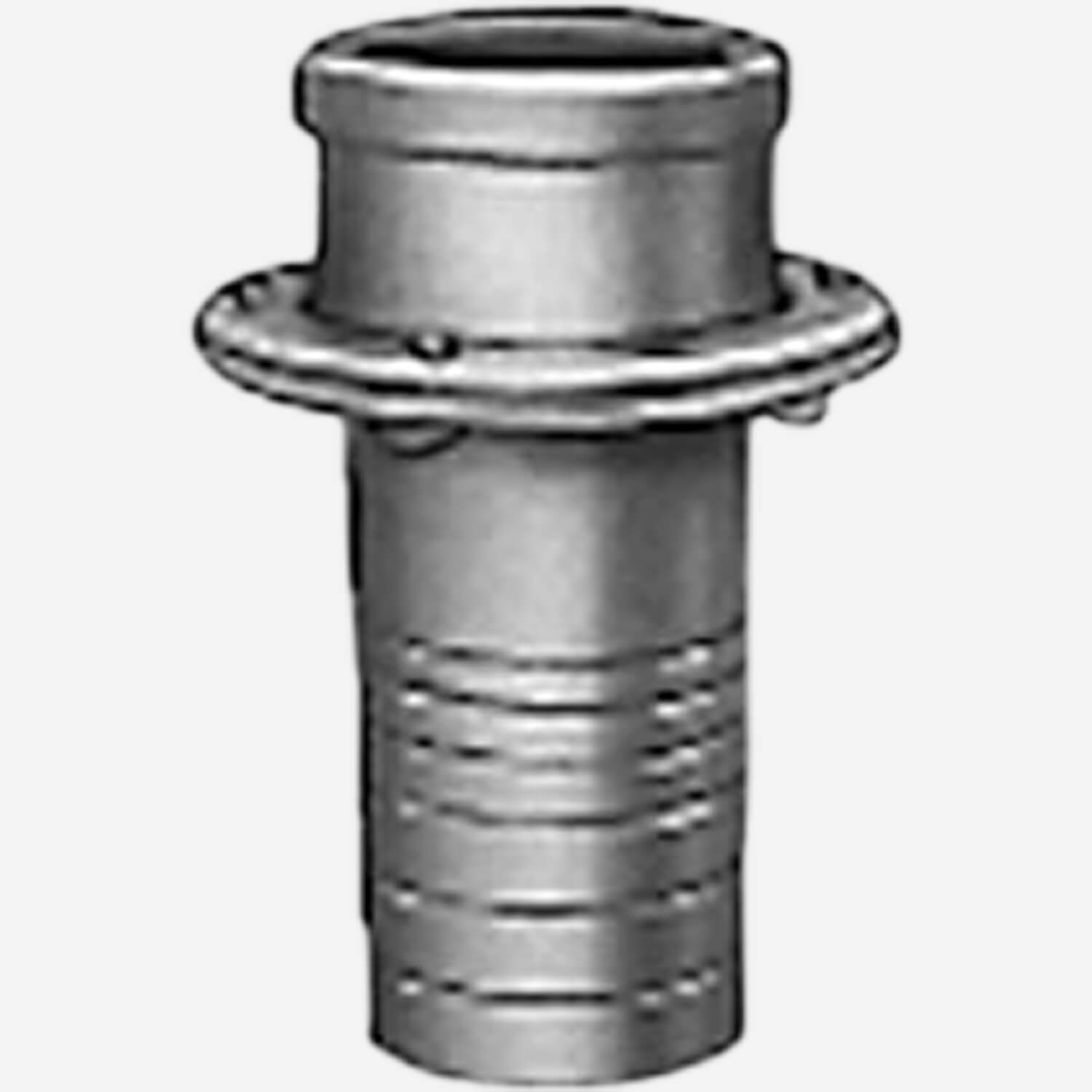

Figure 1720

Submittal

Submittal 1720 Roof Drain

Model 1720

Stack or Wall Sleeves

Our stack or wall sleeve provides a watertight passage for piping to pass through in concrete floors and walls. Constructed of Duco coated cast iron, the sleeve has an integral flashing clamp for attachment to waterproof flooring materials. For a watertight installation, pass pipe through the sleeve and caulk top hub.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1720 Roof Drain	Submittal 1720 Roof Drain	419 KB
Drawings	1720 Roof Drain (dwg)	DWG 1720 Roof Drain	60 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Underdeck Clamp -C, (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron -G
Product Type	Roof Drain
