12" Diameter Body Roof Drain with Low Profile Dome

Find A Representative
Figure 1310 & 1320
Submittal
8 available
1310 & 1320 Preview
Model 1310 & 1320

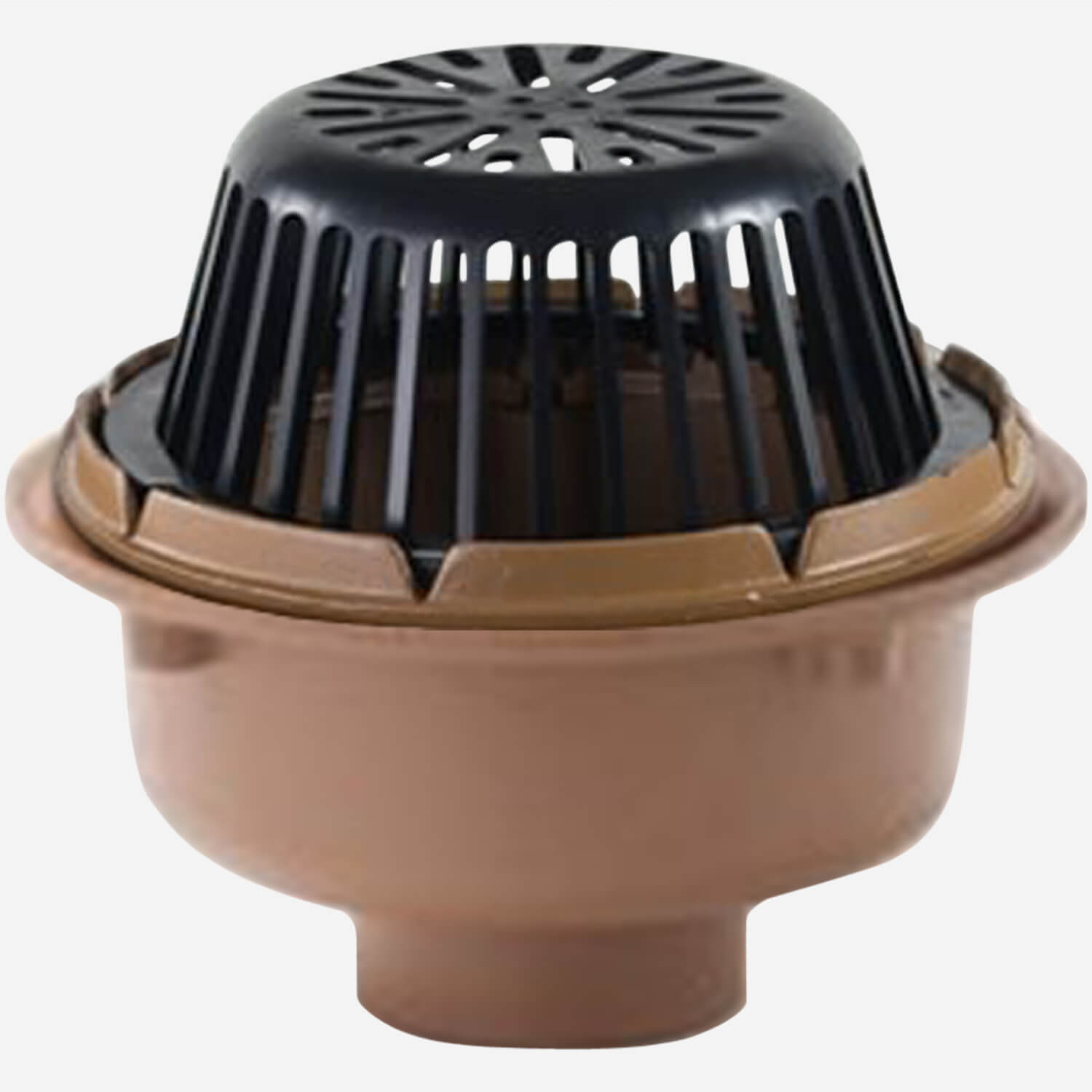

12" Diameter Body Roof Drain with Low Profile Dome

This 12" (305) diam. roof drain is fitted with a combined flashing clamp and gravel stop that securely grips roofing materials without puncturing them for a watertight seal. It is constructed of corrosion resistant Duco coated cast iron and topped by a polyethylene dome strainer. This drain is engineered for a long, maintenance free life in flat roofs requiring a medium size drain.

Downloads

Resource Type
Title
Description
File Size
Action
drawing/dwg icon
BIM/CAD/Revit
drawing/dwg icon
1320 Roof Drain (dwg)
General Purpose Roof Drain - 12" Diameter - Low Profile [1320C | Caulk Side Outlet;1320Y | No-Hub Side Outlet] also shown 1310C | Caulk Bottom Outlet; 1310Y | No-Hub Bottom Outlet113 KB
drawing/dwg icon
BIM/CAD/Revit
drawing/dwg icon
1310-RDP Roof Drain (dwg)
General Purpose Roof Drain with Deck Plate 12" Diameter - Low Profile [1310C-RDP | Caulk Bottom Outlet; 1310Y-RDP | No-Hub Bottom Outlet]103 KB
drawing/dwg icon
BIM/CAD/Revit
drawing/dwg icon
1310-DEP Roof Drain (dwg)
General Purpose Roof Drain with Top Mount Deck Extension Plate - 12" Diameter - Low Profile [1310C-DEP | Caulk Bottom Outlet; 1310Y-DEP | No-Hub Bottom Outlet; 1310T-DEP | Threaded Bottom Outlet]83 KB
drawing/dwg icon
BIM/CAD/Revit
drawing/dwg icon
1310 Roof Drain (dwg)
General Purpose Roof Drain 12" Diameter - Low Profile [1310C | Caulk Bottom Outlet 1310Y | No-Hub Bottom Outlet]181 KB
JPG icon
Images
JPG icon
1310-RDP Roof Drain (hi res jpg)
General Purpose Roof Drain with Deck Plate 12" Diameter - Low Profile [1310C-RDP | Caulk Bottom Outlet; 1310Y-RDP | No-Hub Bottom Outlet]20 KB
PDF icon
Submittals
PDF icon
Submittal 1310, 1320 Roof Drain (pdf)
General Purpose Roof Drain - 12" Diameter - Low Profile [1310C | Caulk Bottom Outlet; 1310Y | No-Hub Bottom Outlet;1320C | Caulk Side Outlet;1320Y | No-Hub Side Outlet]653 KB
PDF icon
Submittals
PDF icon
Submittal 1310-RDP Roof Drain (pdf)
General Purpose Roof Drain with Deck Plate 12" Diameter - Low Profile [1310C-RDP | Caulk Bottom Outlet; 1310Y-RDP | No-Hub Bottom Outlet]649 KB
PDF icon
Submittals
PDF icon
Submittal 1310-DEP Roof Drain (pdf)
General Purpose Roof Drain with Top Mount Deck Extension Plate - 12" Diameter - Low Profile [1310C-DEP | Caulk Bottom Outlet; 1310Y-DEP | No-Hub Bottom Outlet; 1310T-DEP | Threaded Bottom Outlet]970 KB
PDF icon
Submittals
PDF icon
Submittal 1310-E, 1320-E Roof Drain (pdf)
General Purpose Roof Drain with Vertical Extension, 12" Diameter - Low Profile [1310C-E | Caulk Bottom Outlet; 1310Y-E | No-Hub Bottom Outlet; 1320C-E | Caulk Side Outlet; 1320Y-E | No-Hub Side Outlet]663 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Manuals
PDF icon
Technical Data for Roof Drains
Technical Data for Roof Drains2 MB
PDF icon
Parts Manuals
PDF icon
Parts Order Guide for Roof Drains
Parts Order Guide for Roof Drains4 MB
PDF icon
Ordering
PDF icon
Order Guidelines for Roof Drains
Order Guidelines for Roof Drains120 KB
PDF icon
Submittals
PDF icon
Submittal 1310-WD02, 1320-WD02 Roof Drain (pdf)
General Purpose Roof Drain with Vertical Extension, 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam [1310C-WD02 | Caulk Bottom Outlet; 1310Y-WD02 | No-Hub Bottom Outlet; 1310T-WD02 | Threaded Bottom Outlet; 1320C-WD02 | Caulk Side Outlet; 1320Y-WD02 | No-Hub Side Outlet; 1320T-WD02 | Threaded Side Outlet]301 KB
PDF icon
Submittals
PDF icon
Submittal 1310-WD02-DEP Roof Drain (pdf)
Roof Drain with Top Mount Deck Extension Plate - 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam [1310C-WD02-DEP | Caulk Bottom Outlet; 1310T-WD02-DEP | Threaded Bottom Outlet; 1310Y-WD02-DEP | No-Hub Bottom Outlet]240 KB
PDF icon
Submittals
PDF icon
Submittal 1310-WD02-RDP Rood Drain (pdf)
Roof Drain with Deck Plate - 12-Inch Diameter - Low Profile Dome, Combined Flash Clamp and 2-inch Water Dam [1310-WD02-RDP | Caulk Bottom Outlet; 1310-WD02-RDP | No-Hub Bottom Outlet]186 KB
PDF icon
Submittals
PDF icon
Submittal 1310-E-WD02, 1320-E-WD02 Roof Drain (pdf)
Roof Drain with Vertical Extension - 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam [1310C-E-WD02 | Caulk Bottom Outlet; 1310Y-E-WD02 | No-Hub Bottom Outlet; 1310T-E-WD02 | Threaded Bottom Outlet; 1320C-E-WD02 | Caulk Side Outlet; 1320Y-E-WD02 | No-Hub Side Outlet; 1320T-E-WD02 | Threaded Side Outlet]216 KB
RFA icon
BIM/CAD/Revit
RFA icon
1310 Roof Drain (rfa)
General Purpose Roof Drain - 12" Diameter - Low Profile [1310C | Caulk Bottom Outlet; 1310Y | No-Hub Bottom Outlet]292 KB
RFA icon
BIM/CAD/Revit
RFA icon
1320 Roof Drain (rfa)
General Purpose Roof Drain - 12" Diameter - Low Profile [1320C | Caulk Side Outlet;1320Y | No-Hub Side Outlet]296 KB
RTF icon
Specifications
RTF icon
Specifications for Roof Drains
Specifications for Roof Drains230 KB

Specifications

VariationsExpansion Joint (Specify Fig. 1710) - (Fig. 1330 only), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1310 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only(Fig. 1310 Only), NO-HUB Adaptor - Fig. 1320 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP, Water Dams (see submittal for available sizes) -WD

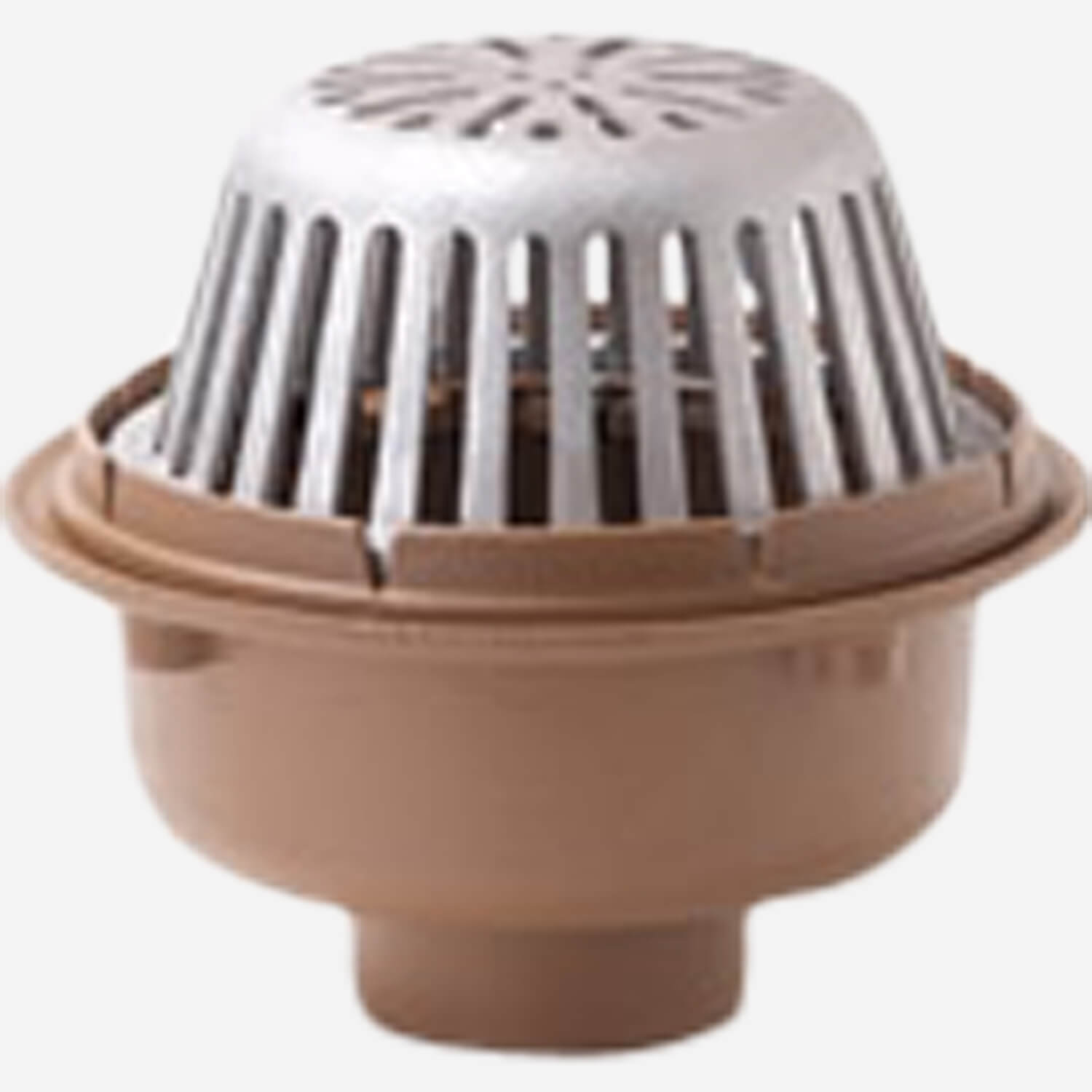

Optional MaterialsAluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G - Body & Collar, Galvanized Cast Iron Dome -CIDG, Rough Bronze Dome -RBD
Product TypeRoof Drain

Models

General Purpose Roof Drain - 12" Diameter - Low Profile [submittal]
1310C | Caulk Bottom Outlet
1310Y | No-Hub Bottom Outlet
1310T | Threaded Bottom Outlet
1320C | Caulk Side Outlet
1320Y | No-Hub Side Outlet
1320T | Threaded Bottom Outlet

General Purpose Roof Drain with Top Mount Deck Extension Plate - 12" Diameter - Low Profile [submittal]
1310C-DEP | Caulk Bottom Outlet
1310Y-DEP | No-Hub Bottom Outlet
1310T-DEP | Threaded Bottom Outlet

General Purpose Roof Drain with Vertical Extension - 12" Diameter - Low Profile [submittal]
1310C-E | Caulk Bottom Outlet
1310Y-E | No-Hub Bottom Outlet
1310T-E | Threaded Bottom Outlet
1320C-E | Caulk Side Outlet
1320Y-E | No-Hub Side Outlet
1310T-E | Threaded Side Outlet

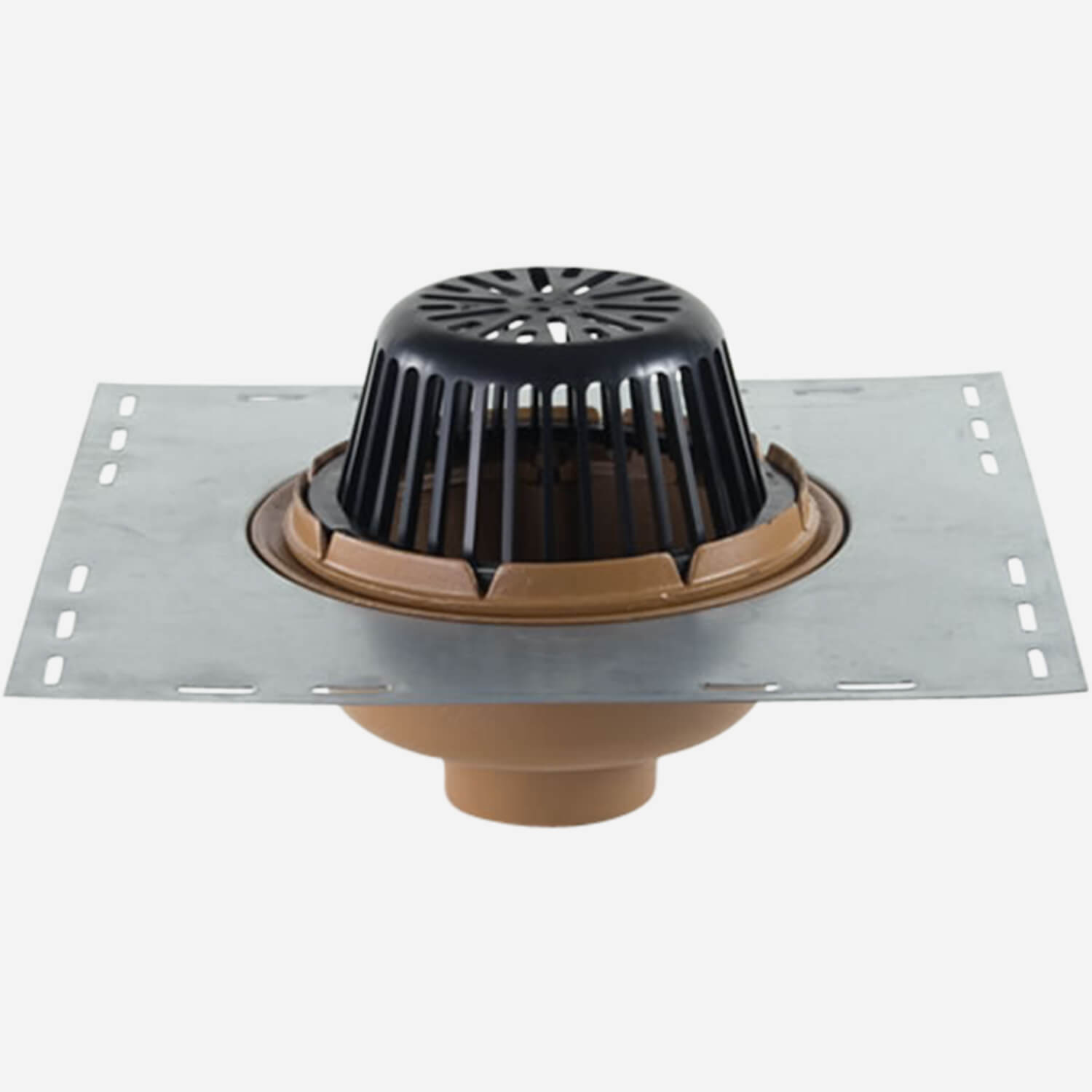

General Purpose Roof Drain with Deck Plate - 12" Diameter - Low Profile [submittal]
1310C-RDP | Caulk Bottom Outlet
1310Y-RDP | No-Hub Bottom Outlet

General Purpose Roof Drain with Top Mount Deck Extension Plate - 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam [submittal]
1310C-WD02-DEP | Caulk Bottom Outlet
1310Y-WD02-DEP | No-Hub Bottom Outlet
1310T-WD02-DEP | Threaded Bottom Outlet

General Purpose Roof Drain with Vertical Extension - 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam [submittal]
1310C-WD02 | Caulk Bottom Outlet
1310Y-WD02 | No-Hub Bottom Outlet
1310T-WD02 | Threaded Bottom Outlet
1320C-WD02 | Caulk Side Outlet
1320Y-WD02 | No-Hub Side Outlet
1310T-WD02 | Threaded Side Outlet

General Purpose Roof Drain with Deck Plate - 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam [submittal]
1310-WD02-RDP | Caulk Bottom Outlet
1310-WD02-RDP | No-Hub Bottom Outlet

General Purpose Roof Drain with Vertical Extension - 12" Diameter - Low Profile, Combined Flash Clamp and 2-inch Water Dam  [submittal]
1310C-E-WD02 | Caulk Bottom Outlet
1310Y-E-WD02 | No-Hub Bottom Outlet
1310T-E-WD02 | Threaded Bottom Outlet
1320C-E-WD02 | Caulk Side Outlet
1320Y-E-WD02 | No-Hub Side Outlet
1320T-E-WD02 | Threaded Side Outlet
