Large General Purpose Roof Drains with Adjustable Extension

Name: Large General Purpose Roof Drains with Adjustable Extension
Brand: Jay R. Smith Mfg. Co.
SKU: 1015

Find A Representative

Figure 1015

Submittal

6 available

Model 1015

Large General Purpose Roof Drains with Adjustable Extension

Easily Adjusts to Accommodate Variations in Insulation Depth

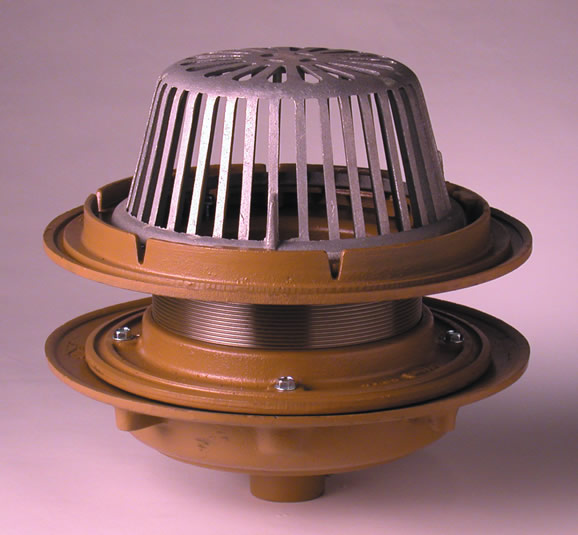

This general purpose drain is adjustable on-site to accommodate roofs of any construction between 1-1/4" (32) and 4" (100) thick with up to 2-3/4" (70) of insulation. The combination flange clamp and gravel stop of this 15-1/4" (390) diam. adjustable roof drain spins around a threaded extension sleeve to conform to varying roof thicknesses. The drain body and flange assembly are made of Duco coated cast iron. It is protected by a polyethylene dome strainer.

Pro Tip: Every bit of savings counts on a big job. When you choose an adjustable roof drain you eliminate the need to order multiple extensions in varying heights. Contractors appreciate the fact that this roof drain can accommodate the inevitable inconsistencies in roof insulation thickness. Simply spin the adjustable extension to fit insulation from 1-1/4 to 4 inches (32 to 102 mm) thickness.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	1015 Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet]	57 KB
Drawings	1015-08 Roof Drain (dwg)	General Purpose Roof Drain Specifically for 8" Pipe Size with Adjustable Extension [1015C-16 \| Caulk Bottom Outlet; 1015Y-16 \| No-Hub Bottom Outlet]	338 KB
Drawings	1015-39 Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension, Stainless Steel Mesh Secured to Dome [1015C-39 \| Caulk Bottom Outlet; 1015Y-39 \| No-Hub Bottom Outlet]	92 KB
Drawings	1015-E Roof Drain (dwg)	General Purpose Roof Drain with Specified Height Extension [1015C-E \| Caulk Bottom Outlet; 1015Y-E \| No-Hub Bottom Outlet]	106 KB
Drawings	1015-RDP Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension, Deck Plate [1015C-RDP \| Caulk Bottom Outlet; 1015Y-RDP \| No-Hub Bottom Outlet]	66 KB
Drawings	Canadian 1015-85 Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension, High Profile Cast Iron Dome with Weir Opening [1015C-85 \| Caulk Bottom Outlet; 1015Y-85 \| No-Hub Bottom Outlet]	503 KB
Images	1015 Roof Drain (hi res jpg)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet]	52 KB
Submittals	Submittal 1015 Roof Drain (pdf)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet; 1015T \| Threaded Bottom Outlet]	1 MB
Submittals	Submittal 1015-08 Roof Drain (pdf)	General Purpose Roof Drain Specifically for 8" Pipe Size with Adjustable Extension [1015C-16 \| Caulk Bottom Outlet; 1015Y-16 \| No-Hub Bottom Outlet]	729 KB
Submittals	Submittal 1015-39 Roof Drain (pdf)	General Purpose Roof Drain with Adjustable Extension, Stainless Steel Mesh Secured to Dome [1015C-39 \| Caulk Bottom Outlet; 1015Y-39 \| No-Hub Bottom Outlet]	1 MB
Submittals	Submittal 1015-E Roof Drain (pdf)	General Purpose Roof Drain with Specified Height Extension [1015C-E \| Caulk Bottom Outlet; 1015Y-E \| No-Hub Bottom Outlet]	991 KB
Submittals	Submittal 1015-RDP Support (pdf)	General Purpose Roof Drain with Adjustable Extension, Deck Plate [1015C-RDP \| Caulk Bottom Outlet; 1015Y-RDP \| No-Hub Bottom Outlet]	243 KB
Submittals	Submittal 1015-C2 Support (pdf)	General Purpose Roof Drain with Adjustable Extension, Wide Flange Body, Threaded Ring Used as Secondary Flashing Clamp [1015C-C2 \| Caulk Bottom Outlet; 1015Y-C2 \| No-Hub Bottom Outlet; 1015T-C2 \| Thread Bottom Outlet]	1 MB
Brochures/Flyers	Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	5 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Parts Manuals	Parts Order Guide for Roof Drains	Parts Order Guide for Roof Drains	4 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB
Submittals (CANADA)	Canadian Submittal 1015-85 Roof Drain (pdf)	General Purpose Roof Drain with Adjustable Extension, High Profile Cast Iron Dome with Weir Opening [1015C-85 \| Caulk Bottom Outlet; 1015Y-85 \| No-Hub Bottom Outlet]	632 KB
Brochures/Flyers	Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	5 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB
Revit/BIM/ITM Files	1015 Roof Drain (rfa)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet]	448 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Expansion Joint (Specify Fig. 1710), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, Side Outlet Drain (Specify Fig. 1025), T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
Optional Materials	Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G, Rough Bronze Dome -RBD
Product Type	Roof Drain
Benefit	Labor Saving

Models

Large General Purpose Roof Drains with Adjustable Extension

Standard Variation [submittal]
1015C | Caulk Bottom Outlet
1015Y | No-Hub Bottom Outlet
1015T | Threaded Bottom Outlet

Drain with Stainless Steel Mesh Secured to Dome [submittal]
1015C-39 | Caulk Bottom Outlet
1015Y-39 | No-Hub Bottom Outlet
1015T-39 | Threaded Bottom Outlet

Drain with Specified Height Extension [submittal]
1015C-E | Caulk Bottom Outlet
1015Y-E | No-Hub Bottom Outlet
1015T-E | Threaded Bottom Outlet

Drain with Deck Plate [submittal]
1015C-RDP | Caulk Bottom Outlet
1015Y-RDP | No-Hub Bottom Outlet

Drain with Wide Flange Body, Threaded Ring Used as Secondary Flashing Clamp [submittal]
1015C-C2 | Caulk Bottom Outlet
1015Y-C2 | No-Hub Bottom Outlet
1015T-C2 | Thread Bottom Outlet

Drain Specifically for 8" Pipe Size with Adjustable Extension [submittal]
1015C-16 | Caulk Bottom Outlet
1015Y-16 | No-Hub Bottom Outlet
1015T-16 | Threaded Bottom Outlet

Drain Specifically for 8" Pipe Size with Adjustable Extension and Deck Plate [submittal]
1015C-16-RDP | Caulk Bottom Outlet
1015Y-16-RDP | No-Hub Bottom Outlet

Roof Drain with Adjustable Extension, High Profile Cast Iron Dome with Weir Opening [CANADIAN submittal]
1015C-85 | Caulk Bottom Outlet
1015Y-85 | No-Hub Bottom Outlet
