Model 1083-1088

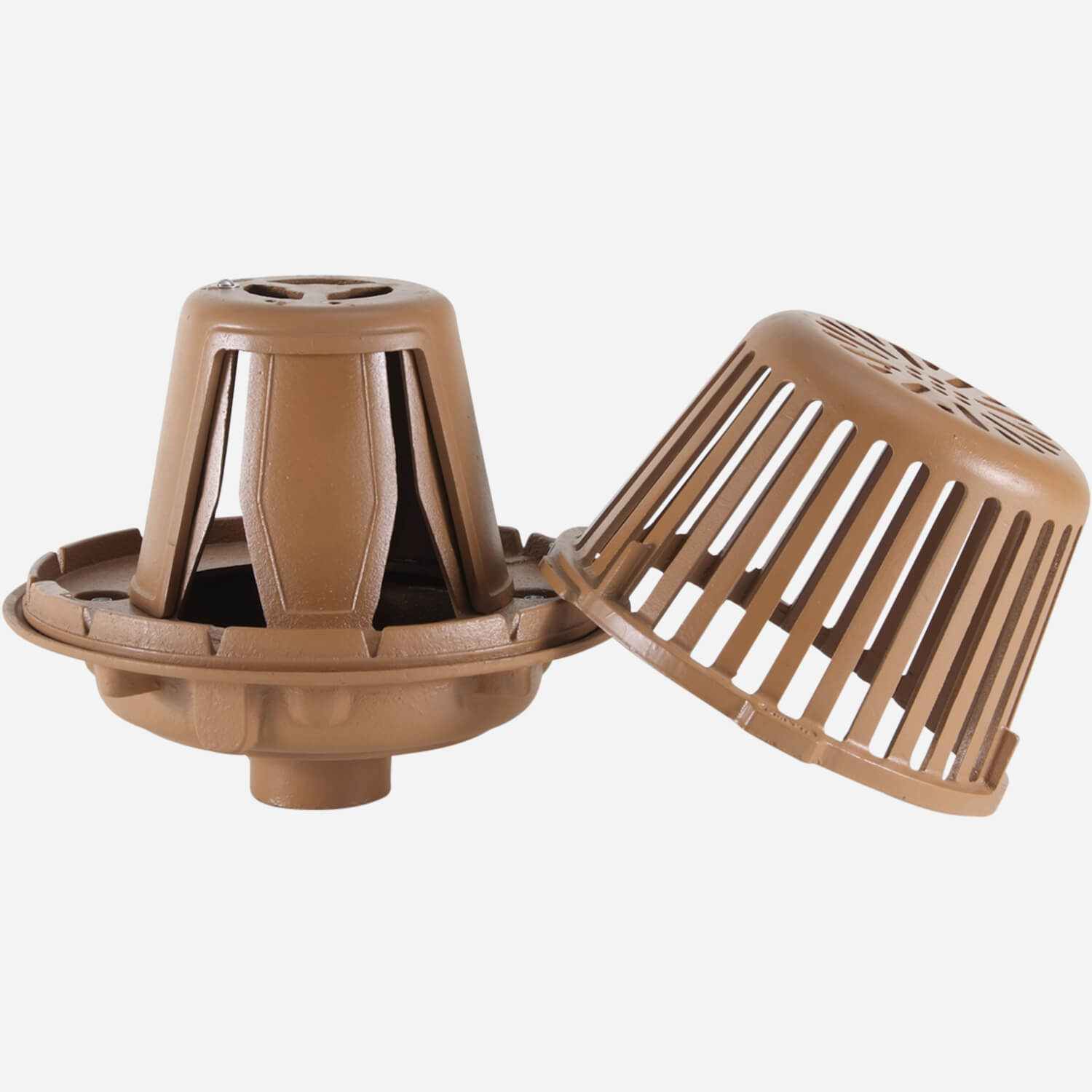

Raintrol® Roof Drain with Adjustable Flow Rate Control and Adjustable Top for Sloped Roof Design
Particularly effective for protecting older roof drainage and sewer systems from flooding, our Raintrol® roof drain has an easily calibrated adjustable flow rate control. This long wearing, 15-1/4" (390) diam. Duco coated cast iron drain is fitted with a combined gravel stop and flashing clamp for a watertight seal without puncturing or disturbing any existing or temporary roofing.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Raintrol® Roof Drain - Flat Roof Design [1083C | Caulk Bottom Outlet; 1083Y | No-Hub Bottom Outlet; 1083T | Threaded Bottom Outlet; 1088C | Caulk Side Outlet; 1088T | Threaded Side Outlet] | 732 KB | |||
 | | Raintrol® Roof Drain - Flat Roof Design [1083C | Caulk Bottom Outlet; 1083Y | No-Hub Bottom Outlet; 1083T | Threaded Bottom Outlet; 1088C | Caulk Side Outlet; 1088T | Threaded Side Outlet] | 0 | 251 KB | ||
| | Raintrol® Roof Drain - Flat Roof Design, Adjustable Extension [1083C-AE | Caulk Bottom Outlet; 1083Y-AE | No-Hub Bottom Outlet;1083T-AE | Threaded Bottom Outlet; 1088C-AE | Caulk Side Outlet;1088T-AE | Threaded Side Outlet] | 0 | 183 KB | ||
| | Raintrol® Roof Drain - Flat Roof Design, Adjustable Extension [1083C-AE | Caulk Bottom Outlet; 1083Y-AE | No-Hub Bottom Outlet;1083T-AE | Threaded Bottom Outlet] | 0 | 716 KB | ||
| | Raintrol® Roof Drain - Flat Roof Design Vertical Extension, Secondary Flashing Clamp [1083C-E-C2 | Caulk Bottom Outlet; 1083Y-E-C2 | No-Hub Bottom Outlet; 1083T-E-C2 | Threaded Bottom Outlet] | 0 | 627 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Roof Drains | 0 | 230 KB | ||
 | | Raintrol® Roof Drain - Flat Roof Design [1083C | Caulk Bottom Outlet; 1083Y | No-Hub Bottom Outlet; 1083T | Threaded Bottom Outlet; 1088C | Caulk Side Outlet; 1088T | Threaded Side Outlet] | 0 | 303 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Parts Order Guide for Roof Drains | 0 | 4 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB | ||
| | Raintrol® Roof Drain, Flat or Sloped Roof Design, 8" (203) Elongated Cast Iron Dome, Cone with Weir Opening [1083C | Caulk Bottom Outlet; 1083Y | No-Hub Bottom Outlet 1083T | Threaded Bottom Outlet] | 0 | 590 KB |
Specifications
| Variations | Expansion Joint (Specify Fig. 1710) - (Fig. 1083 Only), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1083 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig.1083 Only), NO-HUB Adaptor - Fig. 1088 Only (Specify Fig. 2646Y), Non-Adjustable Flow Rate Control Assembly, Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP |
| Optional Materials | Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G - Body & Collar, Galvanized Cast Iron Dome -CIDG, Rough Bronze Dome -RBD |
| Product Type | Roof Drain |
Models
Raintrol® Drains for Flat Roofs
[submittal]
1083C | Caulk Bottom Outlet
1083Y | No-Hub Bottom Outlet
1083T | Threaded Bottom Outlet
1088C | Caulk Side Outlet
1088T | Threaded Side Outlet
Adjustable Extension [submittal]
1083C-AE | Caulk Bottom Outlet
1083Y-AE | No-Hub Bottom Outlet
1083T-AE | Threaded Bottom Outlet
Vertical Extension, Secondary Flashing Clamp [submittal]
1083C-E-C2 | Caulk Bottom Outlet
1083Y-E-C2 | No-Hub Bottom Outlet
1083T-E-C2 | Threaded Bottom Outlet
CANADIAN SUBMITTAL - Flat or Sloped Roof Design, 8" (203) Elongated Cast Iron Dome, Cone with Weir Opening [submittal]
1083C | Caulk Bottom Outlet
1083Y | No-Hub Bottom Outlet
1083T | Threaded Bottom Outlet
