Model 1016

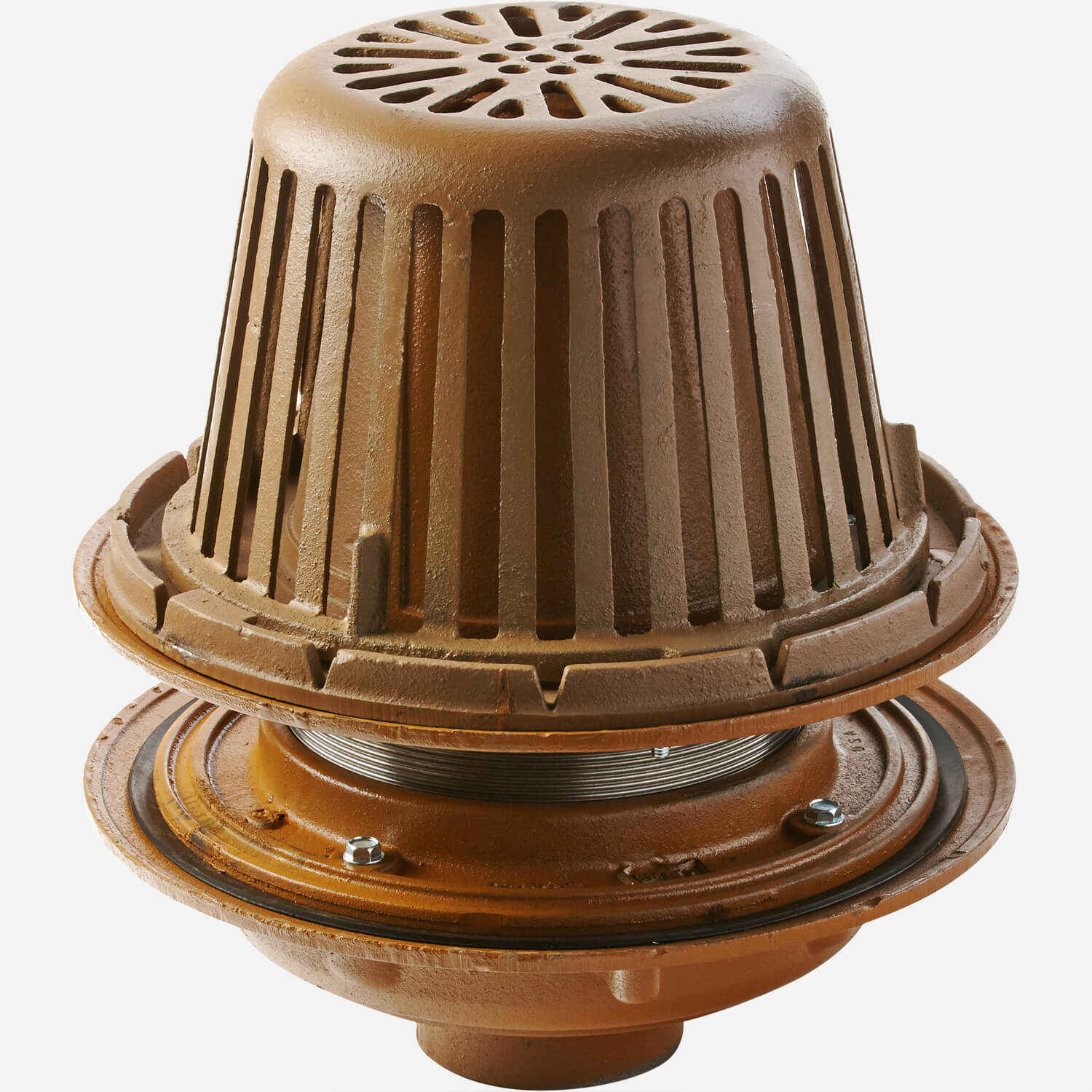

Raintrol® Roof Drain with Adjustable Flow Rate Control and Adjustable Top
Particularly effective for protecting older roof drainage and sewer systems from flooding, our 15-1/4" (390) Raintrol® roof drain has an easily calibrated, adjustable flow rate control. The Duco coated cast iron drain is also fitted with an extension sleeve that permits precise on-site adjustment to the varying thicknesses of roof insulation. Once adjusted, the drains combined gravel stop and flashing clamp grips roofing materials to create a watertight seal to waterproofing membranes without puncturing or disturbing existing or temporary roofing.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 1016 Roof Drain | 691 KB | |||
 | | DWG 1016 Roof Drain | 0 | 177 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Roof Drains | 0 | 230 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Parts Order Guide for Roof Drains | 0 | 4 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB |
Specifications
| Variations | Expansion Joint (Specify Fig. 1710), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor - Fig. 1026 Only (Specify Fig. 2646Y), Non-Adjustable Flow Rate Control Assembly, Sump Receiver -R, Underdeck Clamp -C, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Aluminum Dome -AD, Galvanized Cast Iron -G, Rough Bronze Dome -RBD |
| Product Type | Roof Drain |
