Name: Promenade Deck Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 1409

Model 1409

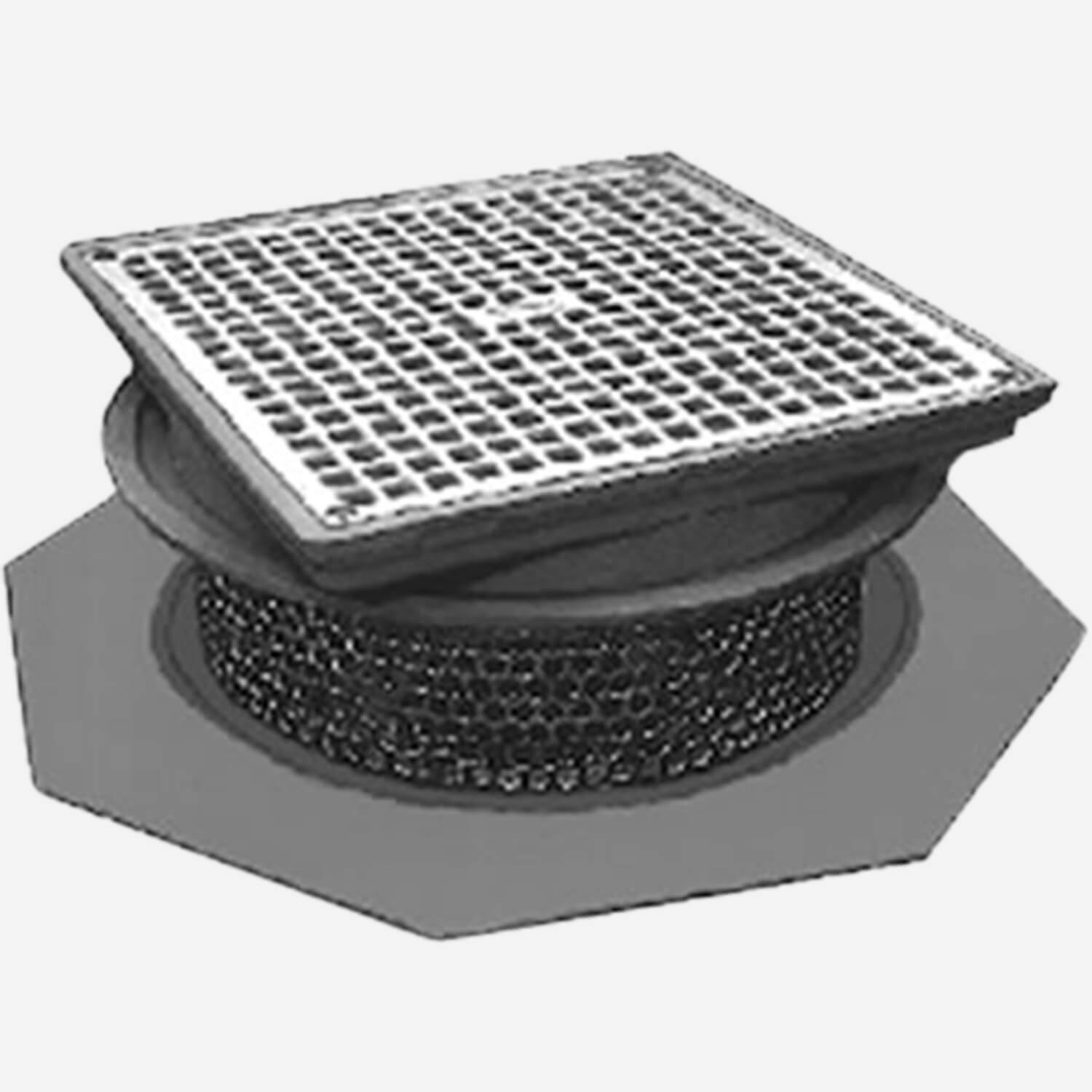

Promenade Deck Drain

This Promenade Deck Drain is engineered for placement in roof top recreational and parking decks where the Insulated Membrane Assembly (IRMA) method of waterproofing is used. Protected on top by a 14" (355) sq. heavy duty grate with combined flashing collar and clamp, this Duco coated cast iron drain securely grips waterproofing membranes without puncturing for a leakproof installation. Underneath the grate is a 4"(100) perforated stainles steel gravel guard that protects drain lines from crushed gravel.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1409 Roof Drain (pdf)	Promenade Deck Drain for Special Roof Applications [1409C \| Caulk Outlet 1409Y \| No-Hub Outlet, 1409T \| Threaded]	1 MB
Drawings	1409 Roof Drain (dwg)	Promenade Deck Drain for Special Roof Applications [1409C \| Caulk Outlet 1409Y \| No-Hub Outlet, 1409T \| Threaded]	292 KB
Drawings	1419 Roof Drain (dwg)	Promenade Deck Drain with Wide Flange [1419C \| Caulk Outlet; 1419Y \| No-Hub Outlet; 1419T \| Threaded Outlet]	249 KB
Revit/BIM/ITM Files	1409 Drain (rfa)	Promenade Deck Drain for Special Roof Applications [1409C \| Caulk Outlet 1409Y \| No-Hub Outlet, 1409T \| Threaded]	1 MB
Submittals	Submittal 1419 Roof Drain (pdf)	Promenade Deck Drain with Wide Flange [1419C \| Caulk Bottom Outlet; 1419Y \| No-Hub Bottom Outlet; 1419T \| Threaded Bottom Outlet]	533 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Sump Receiver -R, Underdeck Clamp -C, Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP, Heel Proof -HP
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Roof Drain

Models

Promenade Deck Drain for Special Roof Applications [submittal]
1409C | Caulk Bottom Outlet
1409Y | No-Hub Bottom Outlet
1409T | Threaded Bottom Outlet

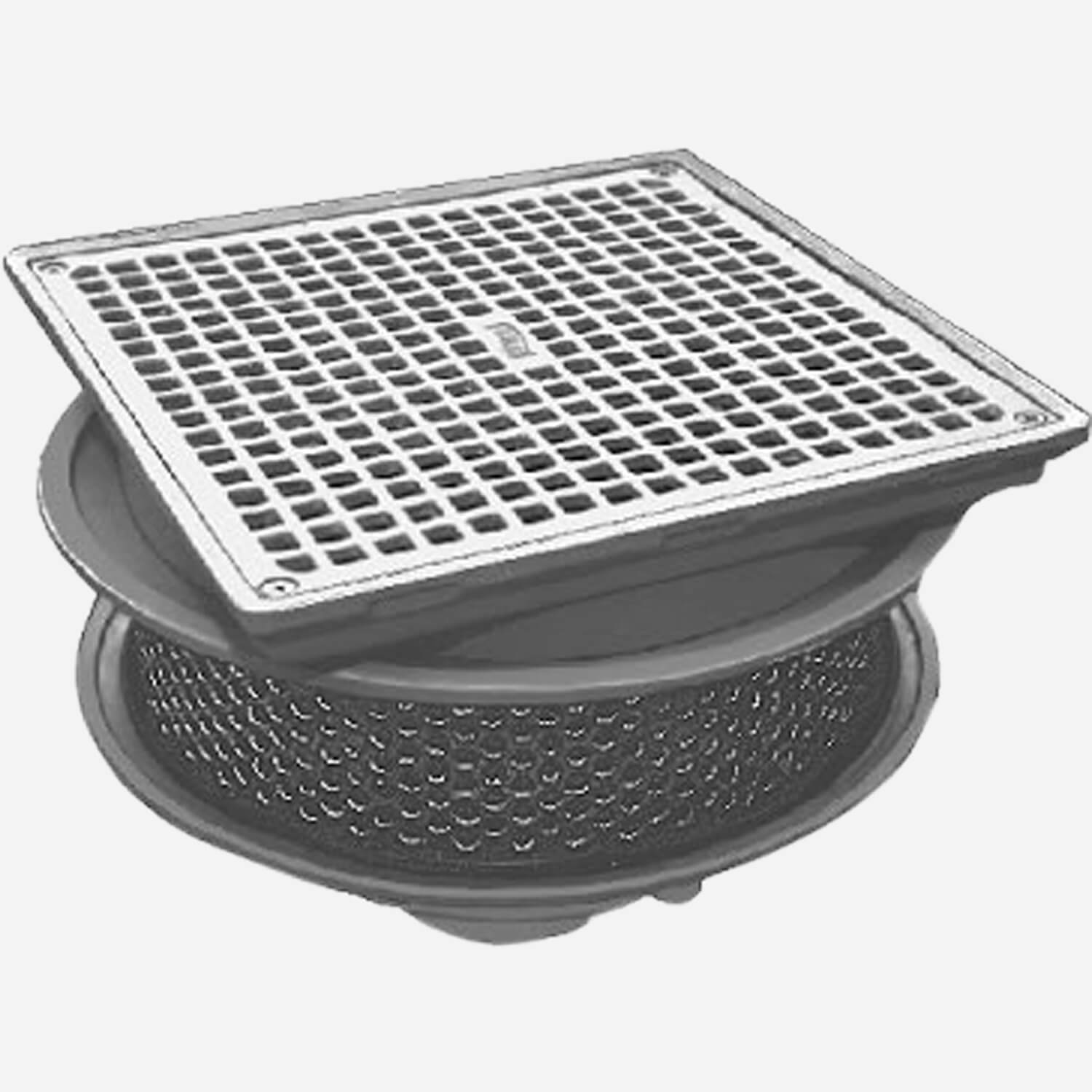

Promenade Deck Drain with Wide Flange [submittal]
1419C | Caulk Bottom Outlet
1419Y | No-Hub Bottom Outlet
1419T | Threaded Bottom Outlet
