Overflow Drain - Standpipe Type

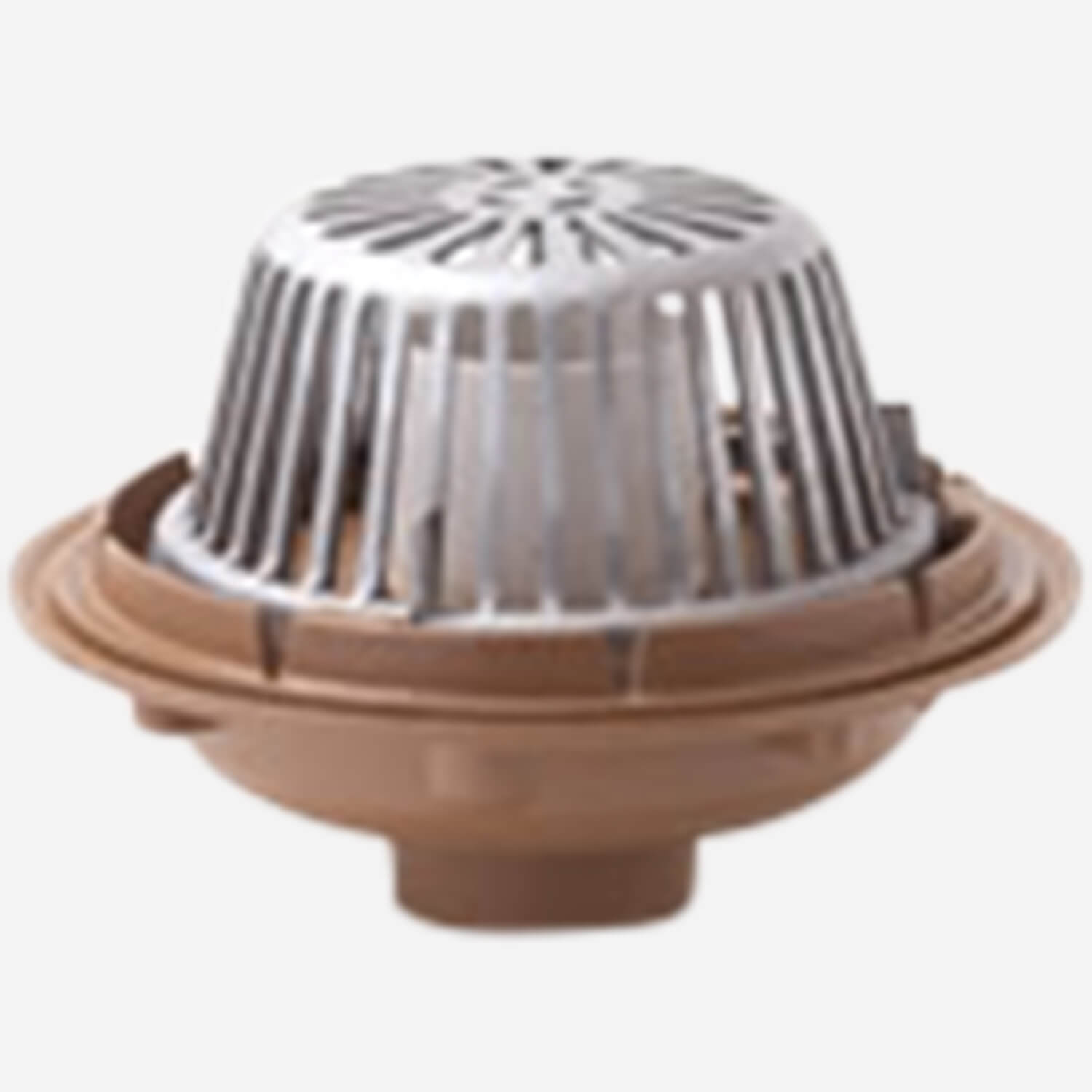

The PVC standpipe type water dam of this 15-1/4" (390) diam. Duco coated cast iron drain can be trimmed to retain up to 5" (125) of standing water on flat roofs where rooftop water is used to insulate the building's interior. This drain is also installed as a safety overflow drain in conventional roofs. To protect the drainage system, a polyethylene dome strainer restricts debris from entering the drainage system.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal 1070 Roof Drain (pdf)
Overflow Standpipe Roof Drain [1070C | Caulk Bottom Outlet; 1070Y | No-Hub Bottom Outlet; 1070T | Threaded Bottom Outlet]529 KB
drawing/dwg icon
Drawings
drawing/dwg icon
1070 Roof Drain (dwg)
Overflow Standpipe Roof Drain [1070C | Caulk Bottom Outlet; 1070Y | No-Hub Bottom Outlet; 1070T | Threaded Bottom Outlet]167 KB
drawing/dwg icon
Drawings
drawing/dwg icon
1070-E-W Roof Drain (dwg)
Overflow Standpipe Roof Drain - Extension with Secondary Clamping Device and 2 rows of 1/4" Holes [1070C-E-W | Caulked Bottom Outlet; 1070Y-E-W | No-Hub Bottom Outlet]97 KB
drawing/dwg icon
Drawings
drawing/dwg icon
1070-RDP Roof Drain (dwg)
Overflow Standpipe Roof Drain with Top Mount Roof Deck Plate [1070C-RDP | Caulk Bottom Outlet; 1070Y-RDP | No-Hub Bottom Outlet; 1070T-RDP | Threaded Bottom Outlet]425 KB
drawing/dwg icon
Drawings
drawing/dwg icon
1074-RDP Roof Drain (dwg)
Overflow Standpipe Roof Drain with Adjustable Top and 11 Gauge Deck Plate [1074C-RDP | Caulk Bottom Outlet; 1074Y-RDP | No-Hub Bottom Outlet]274 KB
RFA icon
Revit/BIM/ITM Files
RFA icon
1074 Roof Drain (rfa)
Overflow Standpipe Roof Drain with Adjustable Top [1074C | Caulk Bottom Outlet; 1074Y | No-Hub Bottom Outlet]1 MB
RFA icon
Revit/BIM/ITM Files
RFA icon
1070 Roof Drain (rfa)
Overflow Standpipe Roof Drain [1070C | Caulk Bottom Outlet; 1070Y | No-Hub Bottom Outlet; 1070T | Threaded Bottom Outlet]348 KB
PDF icon
Submittals
PDF icon
Submittal 1070-E-W Roof Drain (pdf)
Overflow Standpipe Roof Drain - Extension with Secondary Clamping Device and 2 rows of 1/4" Holes [1070C-E-W | Caulk Bottom Outlet; 1070Y-E-W | No-Hub Bottom Outlet]641 KB
PDF icon
Submittals
PDF icon
Submittal 1070-SO Roof Drain (pdf)
Overflow Standpipe Roof Drain with Side Outlet [1070-CSO | Caulk Side Outlet; 1070-TSO | Threaded Side Outlet]559 KB
PDF icon
Submittals
PDF icon
Submittal 1074 Roof Drain (pdf)
Overflow Standpipe Roof Drain with Adjustable Top [1074C | Caulk Bottom Outlet; 1074Y | No-Hub Bottom Outlet]1 MB
PDF icon
Submittals
PDF icon
Submittal 1070-RDP Roof Drain (pdf)
Overflow Standpipe Roof Drain with Top Mount Roof Deck Plate [1070C-RDP | Caulk Bottom Outlet; 1070Y-RDP | No-Hub Bottom Outlet; 1070T-RDP | Threaded Bottom Outlet]440 KB
PDF icon
Submittals
PDF icon
Submittal 1074-RDP Roof Drain (pdf)
Overflow Standpipe Roof Drain with Adjustable Top and 11 Gauge Deck Plate [1074C-RDP | Caulk Bottom Outlet; 1074Y-RDP | No-Hub Bottom Outlet]475 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
RTF icon
Specifications
RTF icon
Specifications for Roof Drains
Specifications for Roof Drains230 KB
PDF icon
Manuals
PDF icon
Technical Data for Roof Drains
Technical Data for Roof Drains2 MB
PDF icon
Parts Manuals
PDF icon
Parts Order Guide for Roof Drains
Parts Order Guide for Roof Drains4 MB
PDF icon
Ordering
PDF icon
Order Guidelines for Roof Drains
Order Guidelines for Roof Drains120 KB

Specifications

VariationsAdjustable Extension (Specify Fig. 1045), Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
Optional MaterialsAluminum Dome -AD, Bronze Standpipe -BZS, Cast Iron Dome -CID, Cast Iron Standpipe -CIS, Galvanized Cast Iron -G - Body & Collar, Galvanized Cast Iron Dome -CIDG, Rough Bronze Dome -RBD
Product TypeRoof Drain

Models

Overflow Standpipe Roof Drain

Standard Model [submittal]
1070C | Caulk Bottom Outlet
1070Y | No-Hub Bottom Outlet
1070T | Threaded Bottom Outlet

With Vertical Extension, Secondary Clamping Device
and Two rows of 1/4" Holes [submittal]
1070C-E-W | Caulk Bottom Outlet
1070Y-E-W | No-Hub Bottom Outlet
1070T-E-W | Threaded Bottom Outlet

With Top Mount Roof Deck Plate [submittal]
1070C-RDP | Caulk Bottom Outlet
1070Y-RDP | No-Hub Bottom Outlet
1070T-RDP | Threaded Bottom Outlet

With Side Outlet [submittal]
1070-CSO | Caulk Side Outlet
1070-TSO | Threaded Side Outlet

With Adjustable Top [submittal]
1074C | Caulk Bottom Outlet
1074Y | No-Hub Bottom Outlet
1074T | Threaded Bottom Outlet

With Adjustable Top and 11 Gauge Deck Plate [submittal]
1074C-RDP | Caulk Bottom Outlet
1074Y-RDP | No-Hub Bottom Outlet
