IRMA Roof Drain Applications

Name: IRMA Roof Drain Applications
Brand: Jay R. Smith Mfg. Co.
SKU: 1011-1019

Find A Representative

Figure 1011-1019

Submittal

5 available

Model 1011-1019

IRMA Roof Drain Applications

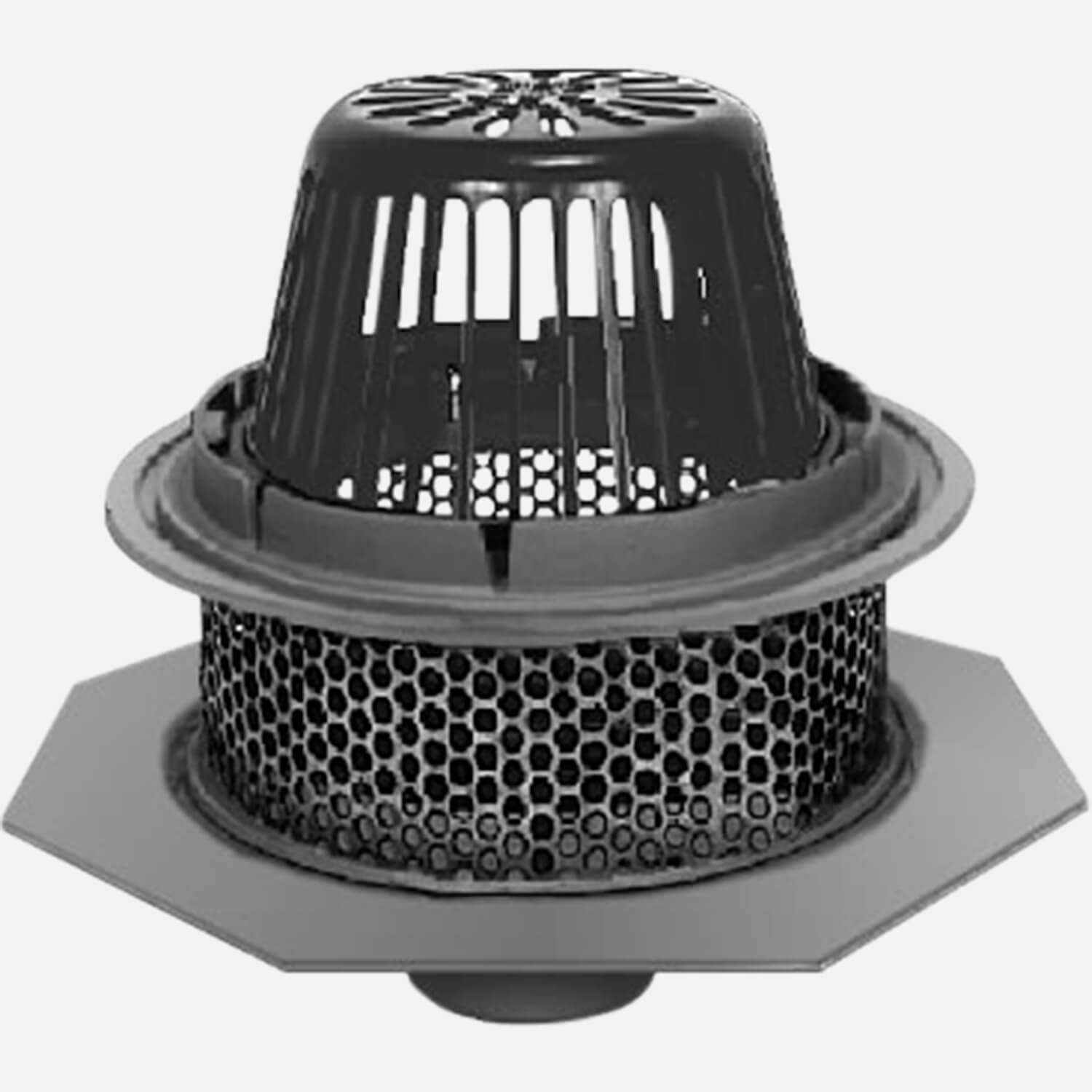

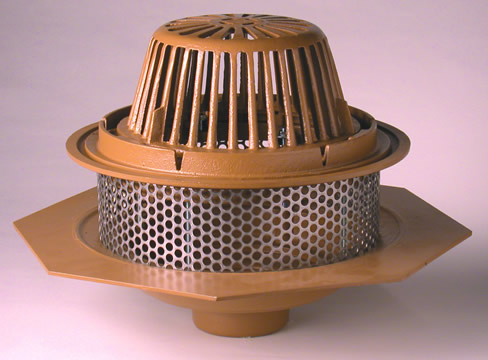

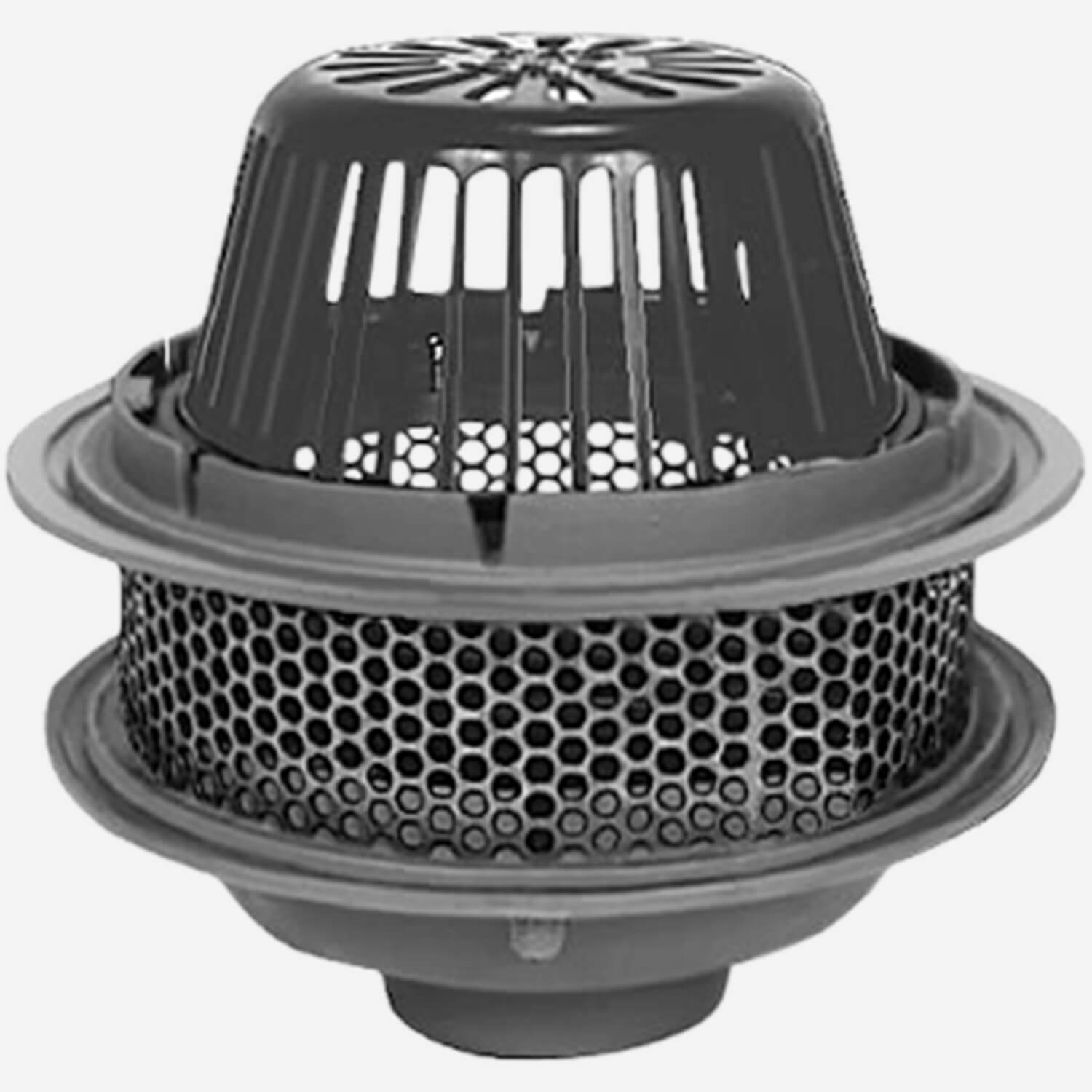

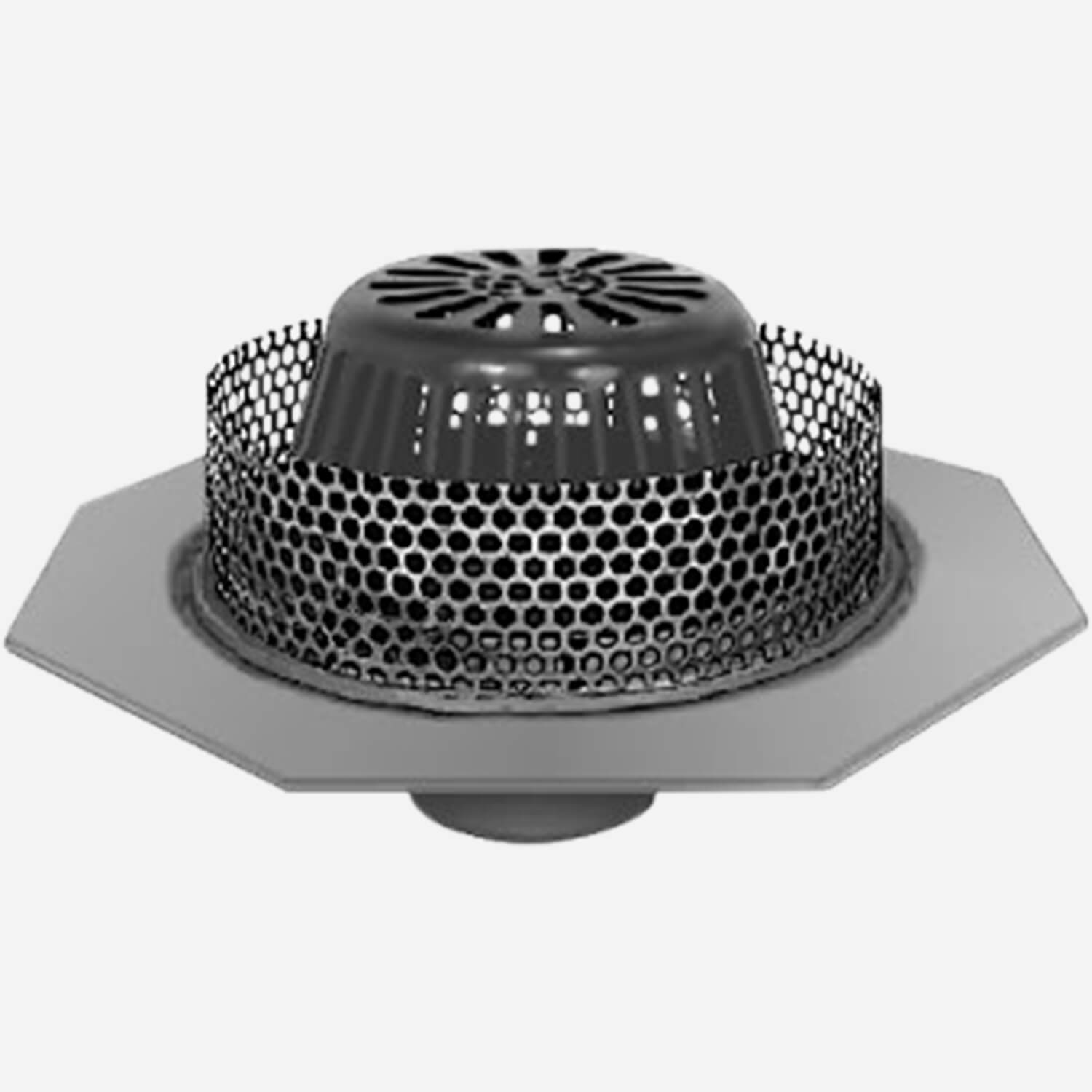

These 15-1/4” (390) diam. drain assemblies are engineered for installation in flat roofs waterproofed using the Insulated Roof Membrane Assembly (IRMA) method. A 4” (100) high perforated stainless steel gravel stop that restricts crushed gravel commonly installed with IRMA roofs from entering drain lines is provided with each drain along with a polyethylene domes (for leaf debris). These Duco coated cast iron drains are available with several flange and clamp configurations for installation in roofs where built-up felt and asphalt waterproofing is installed.
