Name: Green Roof Planter Drain & Overflow Standpipe
Brand: Jay R. Smith Mfg. Co.
SKU: 1901

Model 1901

Green Roof Planter Drain & Overflow Standpipe

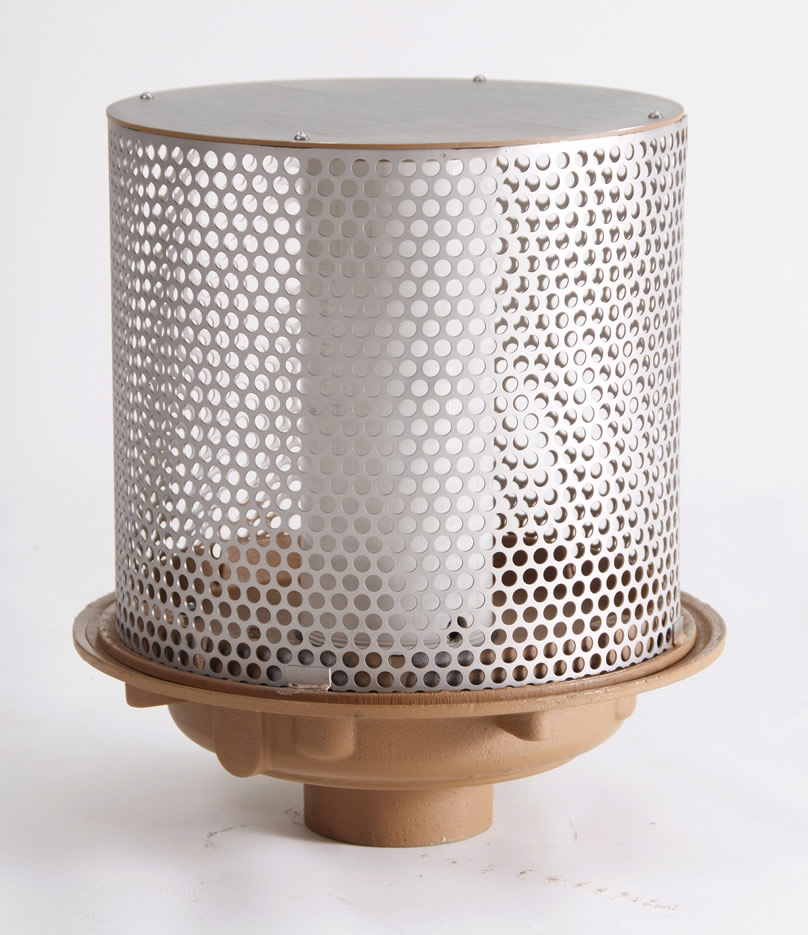

Engineered for planting areas of Intensive Green Roof Systems, this 15-1/4" (387.35 mm) diameter, cast iron drain protects roofs and maintains optimal growing conditions for plants. It is protected against clogging by a 10" (254 mm) perforated, stainless steel gravel stop. An 8-1/2" (215.9 mm) metering-capable PVC standpipe ensures that water level is maintained. This drain is fitted with a combination gravel stop and flashing clamp for leak free installation in roof decking. The P.V.C. Standpipe features a orifice

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	1901 Roof Drain (dwg)	Green Roof Planter Drain Standpipe Type with 5/8" Orifice [1901C \| Caulk Bottom Outlet 1901Y \| No-Hub Bottom Outlet]	81 KB
Images	1901 Roof Drain (hi res jpg)	Green Roof Planter Drain Standpipe Type with 5/8" Orifice [1901C \| Caulk Bottom Outlet 1901Y \| No-Hub Bottom Outlet]	128 KB
Submittals	Submittal 1901 Roof Drain (pdf)	Green Roof Planter Drain Standpipe Type with 5/8" Orifice [1901C \| Caulk Bottom Outlet 1901Y \| No-Hub Bottom Outlet]	974 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Green Roof and Cool Roof Drains Brochure (pdf)	Brochure Green Roof and Cool Roof Drains	945 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB
Revit/BIM/ITM Files	1901 Roof Drain (rfa)	Green Roof Planter Drain Standpipe Type with 5/8" Orifice [1901C \| Caulk Bottom Outlet 1901Y \| No-Hub Bottom Outlet]	556 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Adjustable Extension (Specify Fig. 1045), Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Sump Receiver -R, Underdeck Clamp -C, Roof Deck Plate -RDP, Vandal Proof Cover -U
Optional Materials	Bronze Standpipe -BZS, Cast Iron Standpipe -CIS, Galvanized Cast Iron -G - Body & Collar
Product Type	Roof Drain

Models

1901C | Caulk Bottom Outlet
1901T | Threaded Bottom Outlet
1901Y | No-Hub Bottom Outlet

Available in the following pipe sizes
02 (50), 03 (75), 04 (100) Pipe Sizes
Standpipe 4" (100) Diameter with 5/8 (16) Orifice

05 (125), 06 (150) Pipe Size
Standpipe 6" (150 Diameter with 1 (25) Orifice

08 (200) Pipe Size
Standpipe 8" (200) Diameter with 1 (25) Orifice
