Cornice - Parapet - Canopy - Gutter Drains

Name: Cornice - Parapet - Canopy - Gutter Drains
Brand: Jay R. Smith Mfg. Co.
SKU: 1600 Series

Find A Representative

Figure 1600 Series

Submittal

Submittal 1600 Series Drain

Model 1600 Series

Cornice - Parapet - Canopy - Gutter Drains

These 6" (150) diameter corrosion-resistant Duco-coated cast iron gutter drains are designed for installation where a drain is required for connecting to the downspout leader. They are available with flat, low dome, or high dome bronze strainers and with bottom, 45°, and 90° threaded outlets. A bronze flashing clamp attaches the drain to the gutter lining and is designed to allow easy strainer removal and replacement while leaving the attachment undisturbed.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1600 Series Drain	Gutter Drains - Bottom Outlet [1610T \| ADA Flat Strainer; 1620T \| Low Dome;1630T \| High Dome]; 45° Outlet [1640T \| ADA Flat Strainer;1650T \| Low Dome; 1660T \| High Dome]; Side Outlet [1670T \| ADA Flat Strainer; 1680T \| Low Dome]	797 KB
Drawings	1600 Series Drain (dwg)	Gutter Drains - Bottom Outlet [1610T \| ADA Flat Strainer; 1620T \| Low Dome; 1630T \| High Dome]; 45° Outlet [1640T \| ADA Flat Strainer; 1650T \| Low Dome; 1660T \| High Dome]; Side Outlet [1670T \| ADA Flat Strainer; 1680T \| Low Dome]	292 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	4"(100) Deep Body -B4 (Fig. 1610, 1620, 1630 only), Vandal Proof -U - Screws, Stainless Steel Mesh Over Dome -SSM, (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron Body -G, Nickel Bronze Top - NB, Polished Bronze Top - PB, Bronze Body -BB
Product Type	Roof Drain

Models

Typical models are shown below

BOTTOM THREADED OUTLET

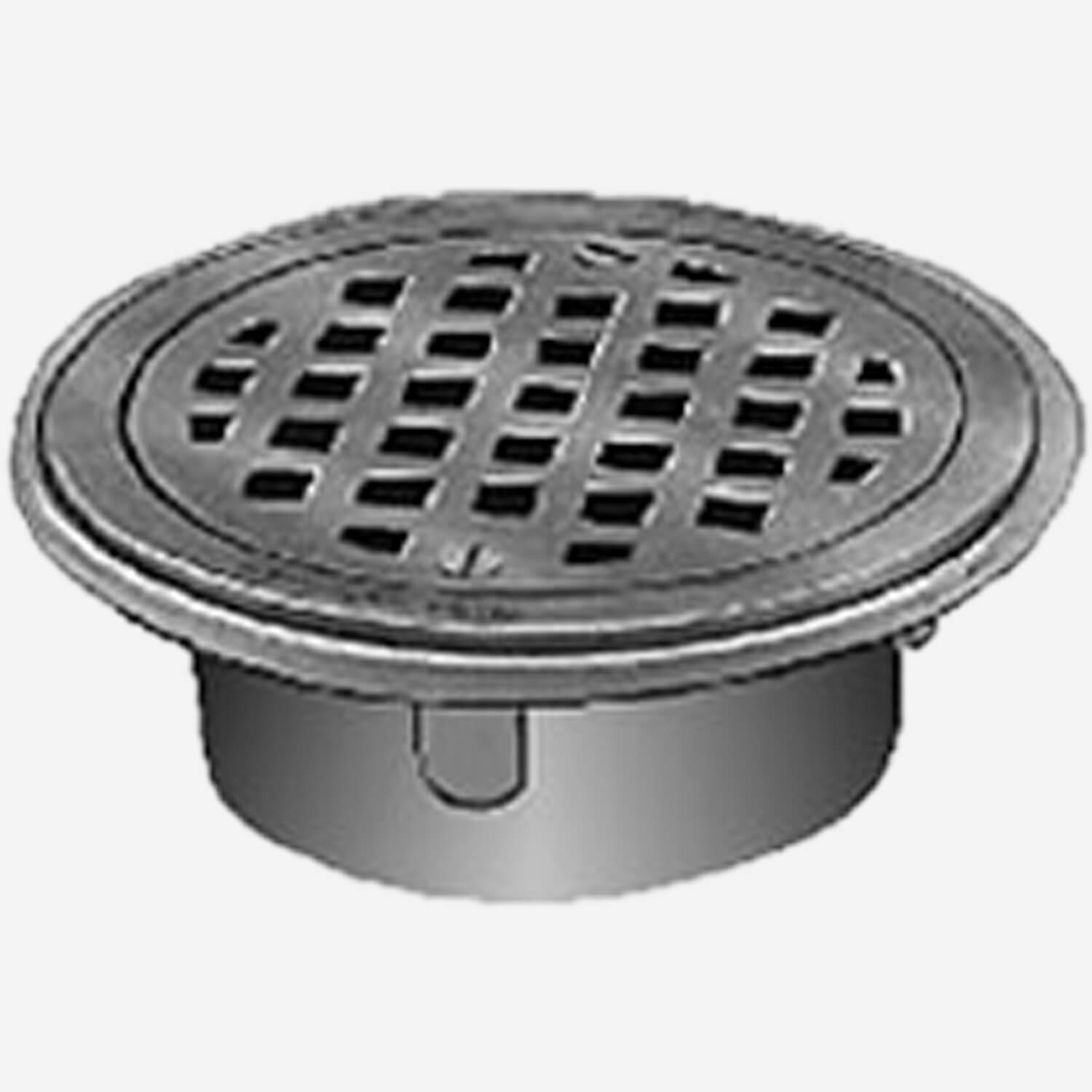

Figure 1610T | ADA Flat Strainer (shown)
Figure 1620T | Low Dome Strainer
Figure 1630T | High Dome Strainer

45° THREADED OUTLET
Figure 1640T | ADA Flat Strainer

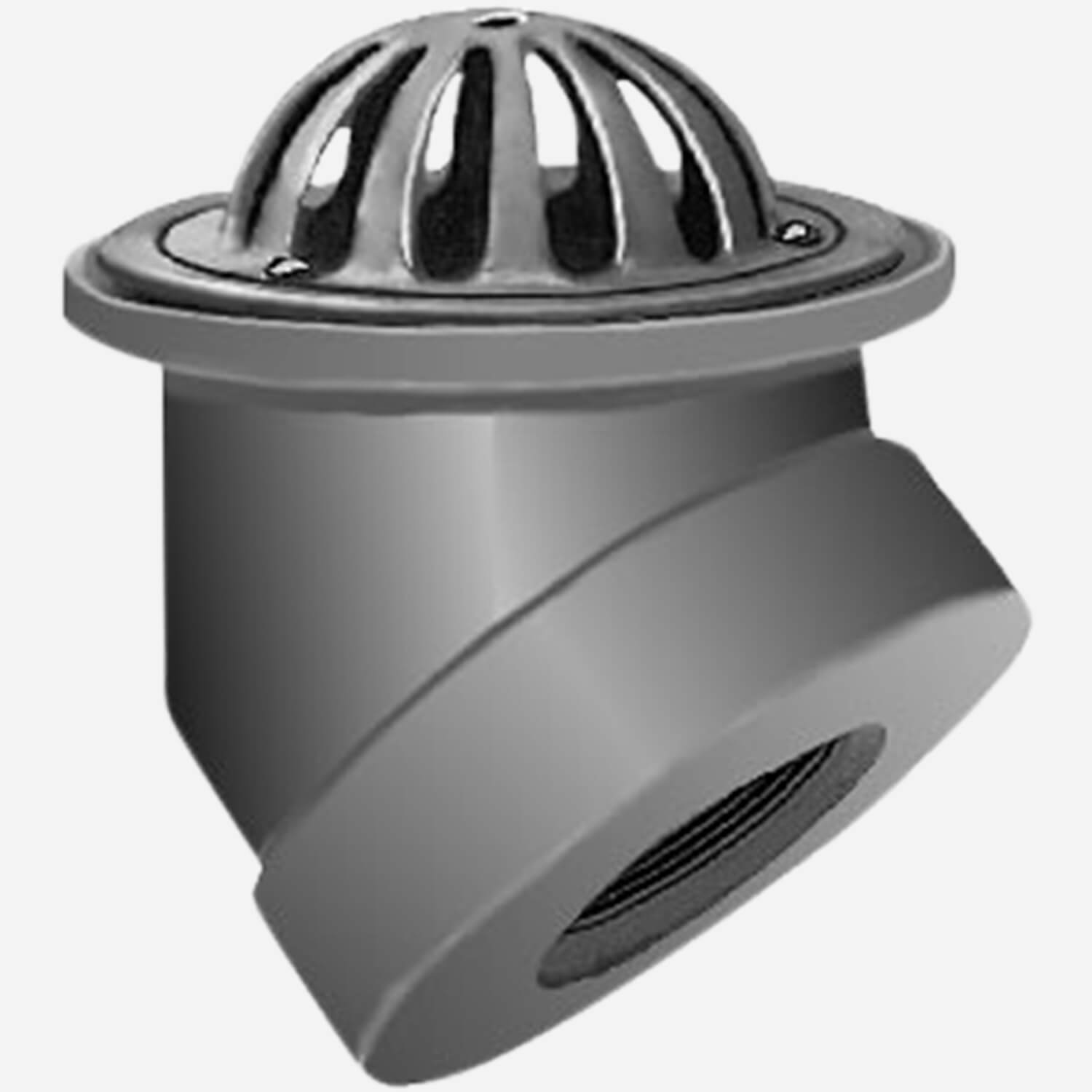

Figure 1650T | Low Dome Strainer (shown)
Figure 1660T | High Dome Strainer

SIDE THREADED OUTLET
Figure 1670T | ADA Flat Strainer
Figure 1680T | Low Dome Strainer

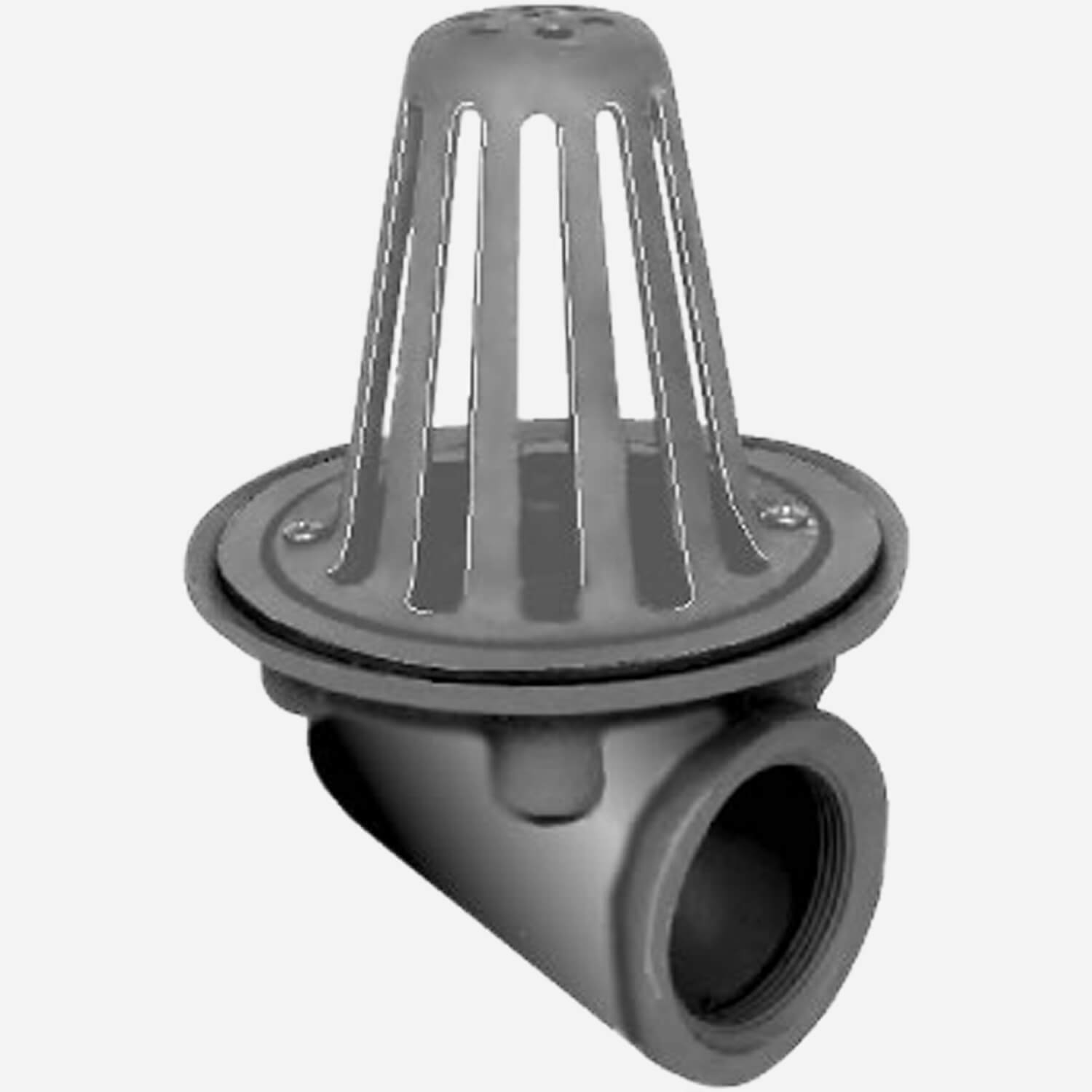

Figure 1690T | High Dome Strainer (shown)
