Name: Plaza and Planter Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 1915

Model 1915

Plaza and Planter Drain

Available in three multi-level configurations for three unique drain placements, these drains are used in plaza and/or planter areas of green roof systems.

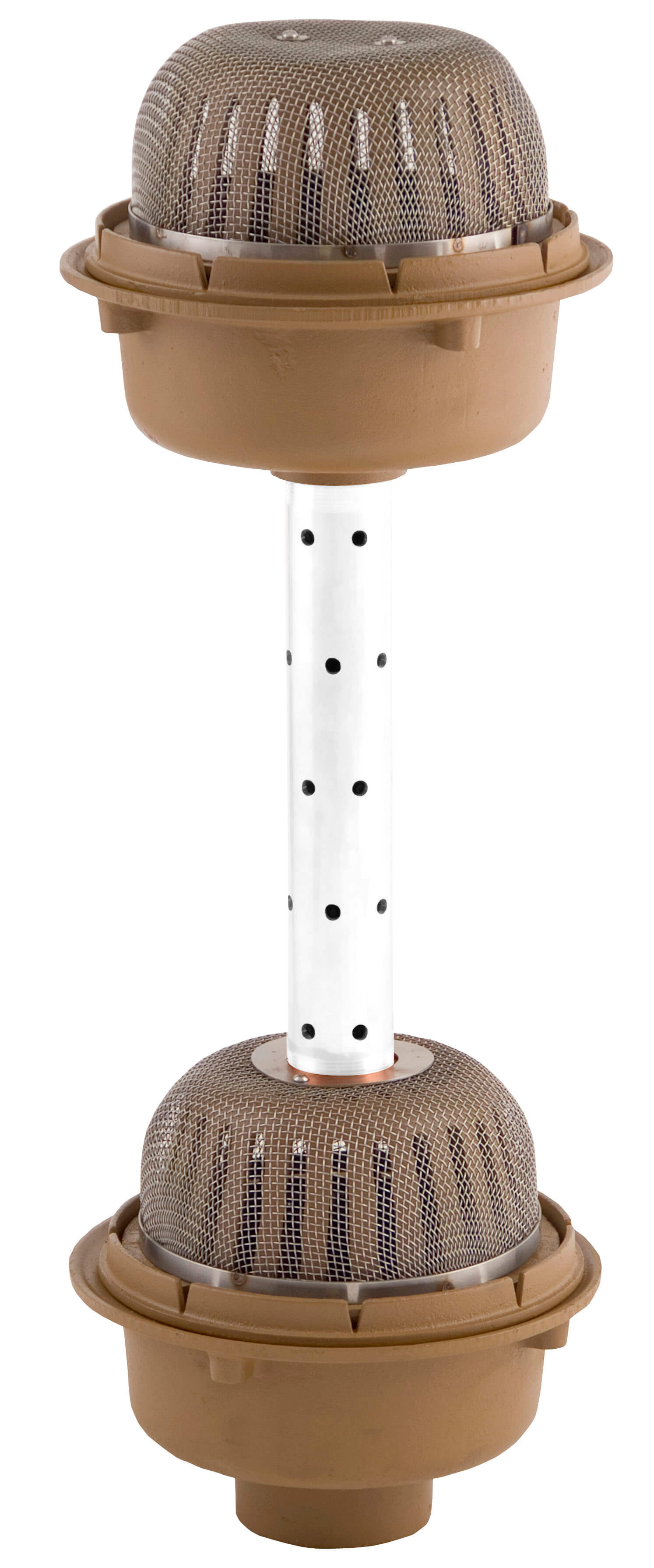

Figure 1915 plaza drain feature a 12" (305 mm) stainless steel mesh/cast iron dome.

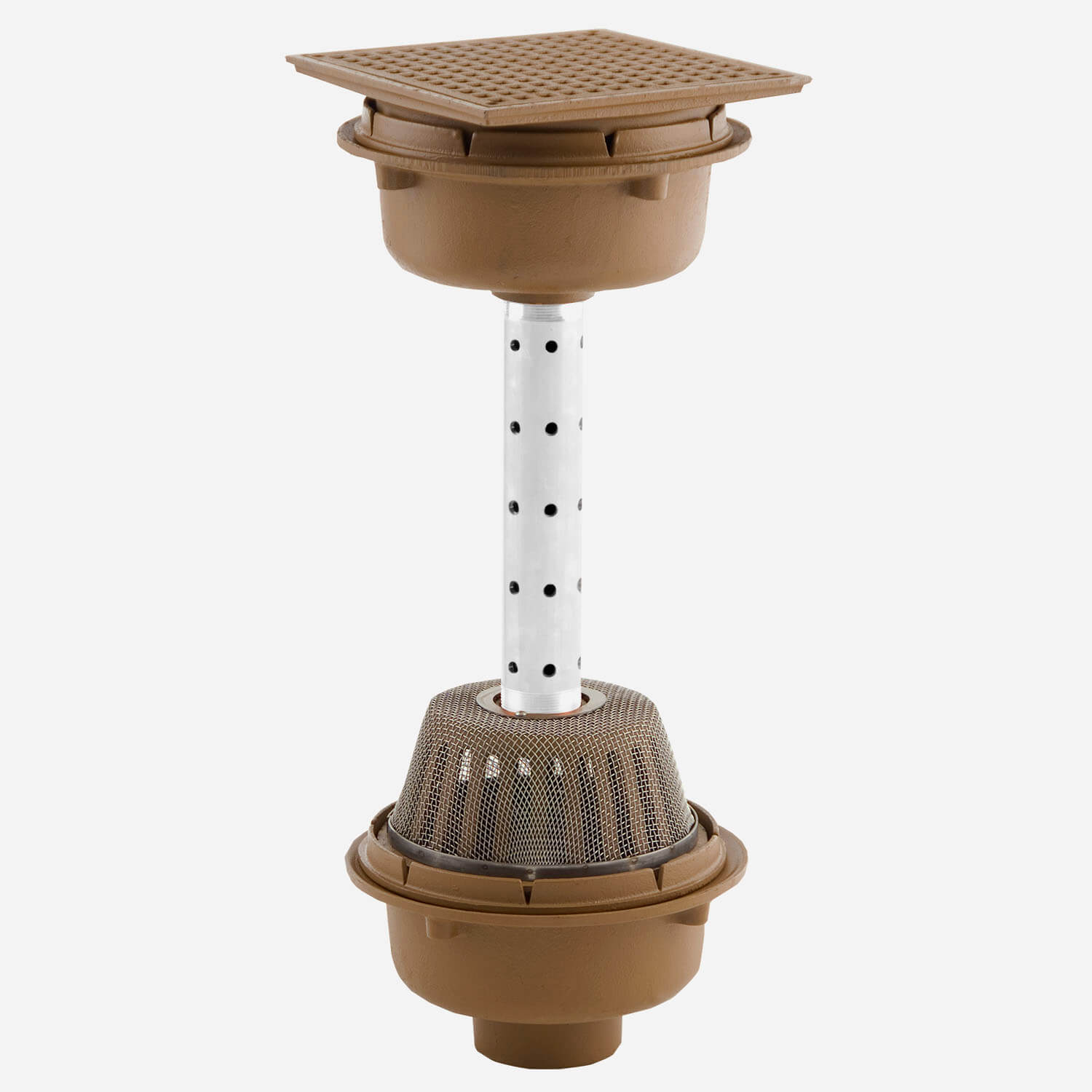

Figure 1920 plaza drain feature an 11" (279.4 mm) flat square grate

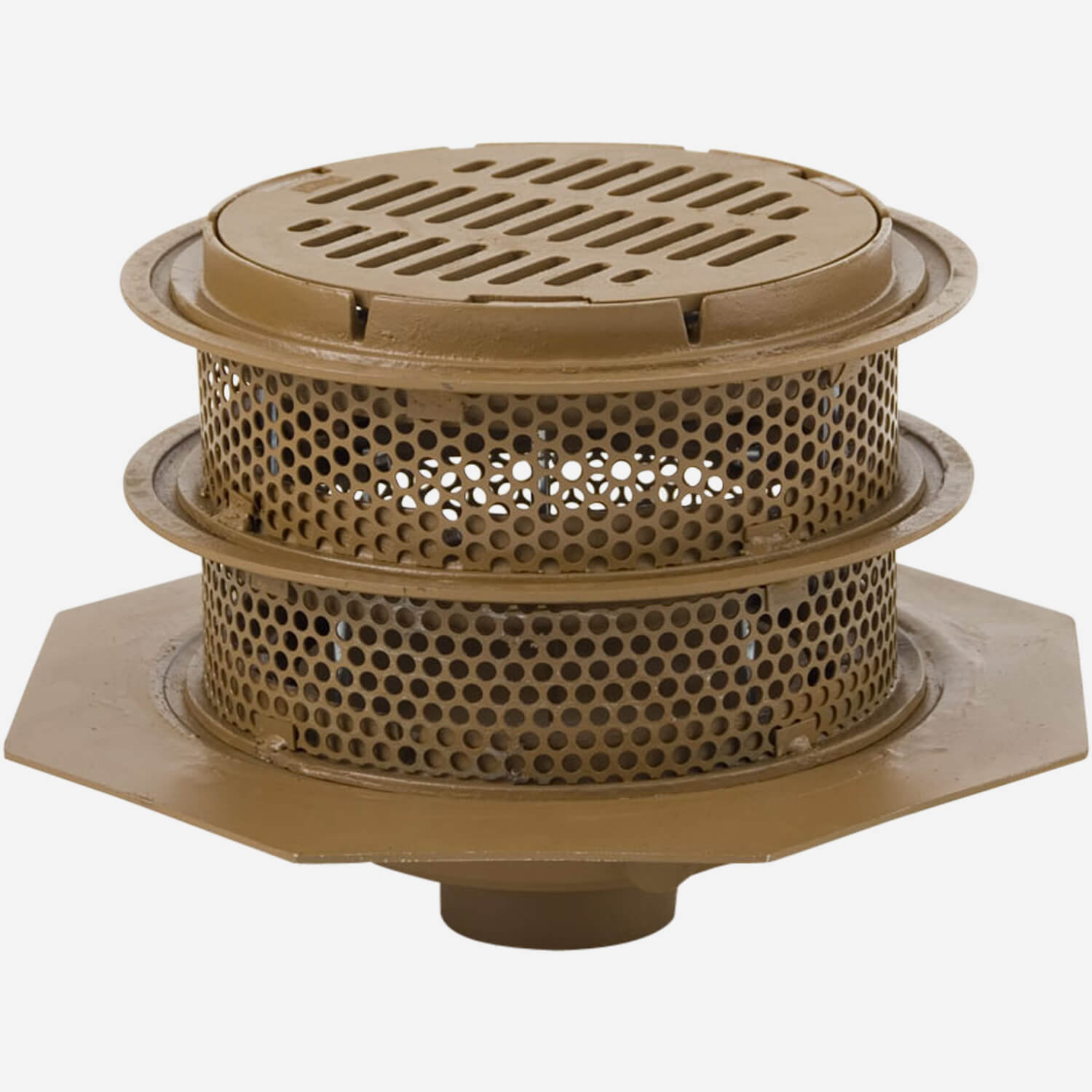

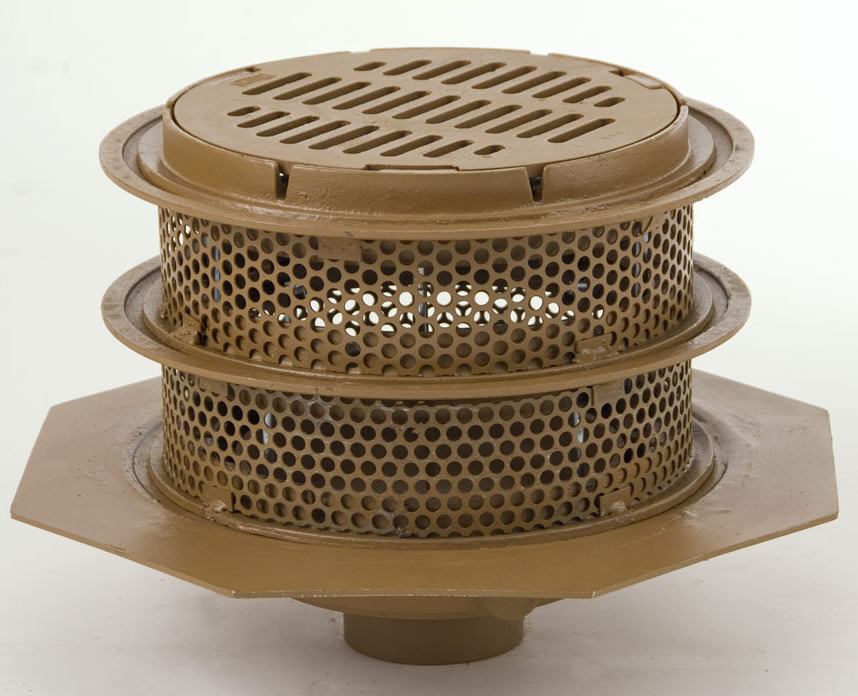

Figure 1930 planter area drain features a 12" (305 mm) diameter grate.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	1915 Drain (dwg)	Plaza Drain with 12" Stainless Steel Mesh/Cast Iron Dome	195 KB
Drawings	1920 Drain (dwg)	Plaza Drain with 11" Square Grate [1920Y \| No-Hub Outlet; 1920C \| Caulk Outlet]	160 KB
Drawings	1930 Drain (dwg)	Planter Area Drain with 12" Round Grate [1930Y \| No-Hub Outlet; 1930L \| Speedi-Set® Outlet]	224 KB
Images	1915 drain (hi res jpg)	Plaza Drain with 12" Stainless Steel Mesh/Cast Iron Dome	273 KB
Images	1920 Drain (hi res jpg)	Plaza Drain with 11" Square Grate	237 KB
Images	1930 Drain (hi res jpg)	Planter Area Drain with 12" Round Grate	101 KB
Submittals	Submittal 1915 Drain (pdf)	Plaza Drain with 12" Stainless Steel Mesh/Cast Iron Dome	573 KB
Submittals	Submittal 1920 Drain (pdf)	Plaza Drain with 11" Square Grate [1920Y \| No-Hub Outlet; 1920C \| Caulk Outlet]	654 KB
Submittals	Submittal 1930 Drain (pdf)	Planter Area Drain with 12" Round Grate [1930Y \| No-Hub Outlet; 1930L \| Speedi-Set® Outlet]	405 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Green Roof and Cool Roof Drains Brochure (pdf)	Brochure Green Roof and Cool Roof Drains	945 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB
Revit/BIM/ITM Files	1915 Drain (rfa)	Plaza Drain with 12" Stainless Steel Mesh/Cast Iron Dome	956 KB
Revit/BIM/ITM Files	1920 Roof Drain (rfa)	Plaza Drain with 11" Square Grate [1920Y \| No-Hub Outlet; 1920C \| Caulk Outlet]	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Roof Deck Plate -RDP, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only on Bottom Outlet Drains
Product Type	Roof Drain
Optional Materials	Galvanized Cast Iron -G, Upper Drain as Specified., Stainless Steel Mesh Screen over Perforated Standpipe., Ductile Iron Grate - M, Nickel Bronze Top - NB, Polished Bronze Top - PB, Stainless Steel Standpipe -SSP, 4" Dia Stainless Steel Standpipe -SSP4

Models

Plaza Drain with 12" Stainless Steel Mesh/Cast Iron Dome [submittal]
1915C | Caulk Bottom Outlet
1915T | Threaded Bottom Outlet
1915Y | No-Hub Bottom Outlet
Specify Pipe Size 02(50), 03(75), 04(100), 05(125) or 06(150)

Plaza Drain with 11" Square Grate [submittal]
1920C | Caulk Bottom Outlet
1920T | Threaded Bottom Outlet
1920C | Caulk Bottom Outlet
Specify Pipe Size 02(50), 03(75), 04(100), 05(125) or 06(150)

Planter Area Drain with 12" Round Grate [submittal]
1930Y | No-Hub Outlet
Specify Pipe Size 02(50), 03(75), 04(100), 05(125), 06(150) or 08 (203)

1930L | Speedi-Set® Outlet
Specify Pipe Size 02(50), 03(75), 04(100)
