Scupper Drain Downspout Adaptor

Name: Scupper Drain Downspout Adaptor
Brand: Jay R. Smith Mfg. Co.
SKU: 1550

Find A Representative

Figure 1550

Submittal

Submittal 1550 Drain

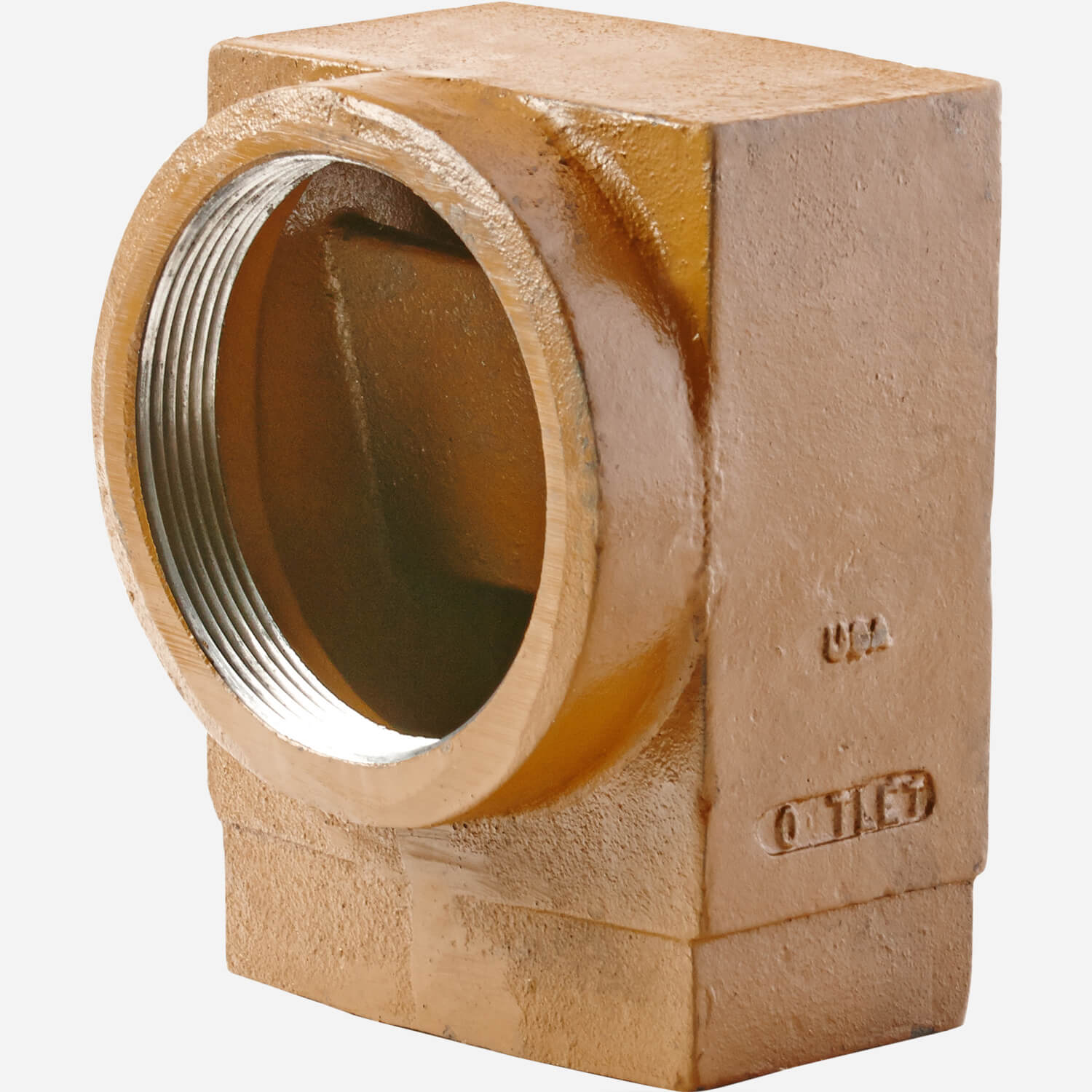

Model 1550

Scupper Drain Downspout Adaptor

This corrosion resistant Duco coated cast iron Downspout Adaptor is used to connect 90° side outlet scupper drains (figs 1510, 1580, 1585) installed at the junction of roof and sidewall to outside downspouts.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1550 Drain	Scupper Drain - Downspout Adapter	375 KB
Drawings	1550 Roof Drain (dwg)	Scupper Drain - Downspout Adapter	25 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Tapped 3" (76) NPT -T3 (When Specified), (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron -G
Product Type	Roof Drain
