Name: Small 8" Promenade Deck Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 1470

Model 1470

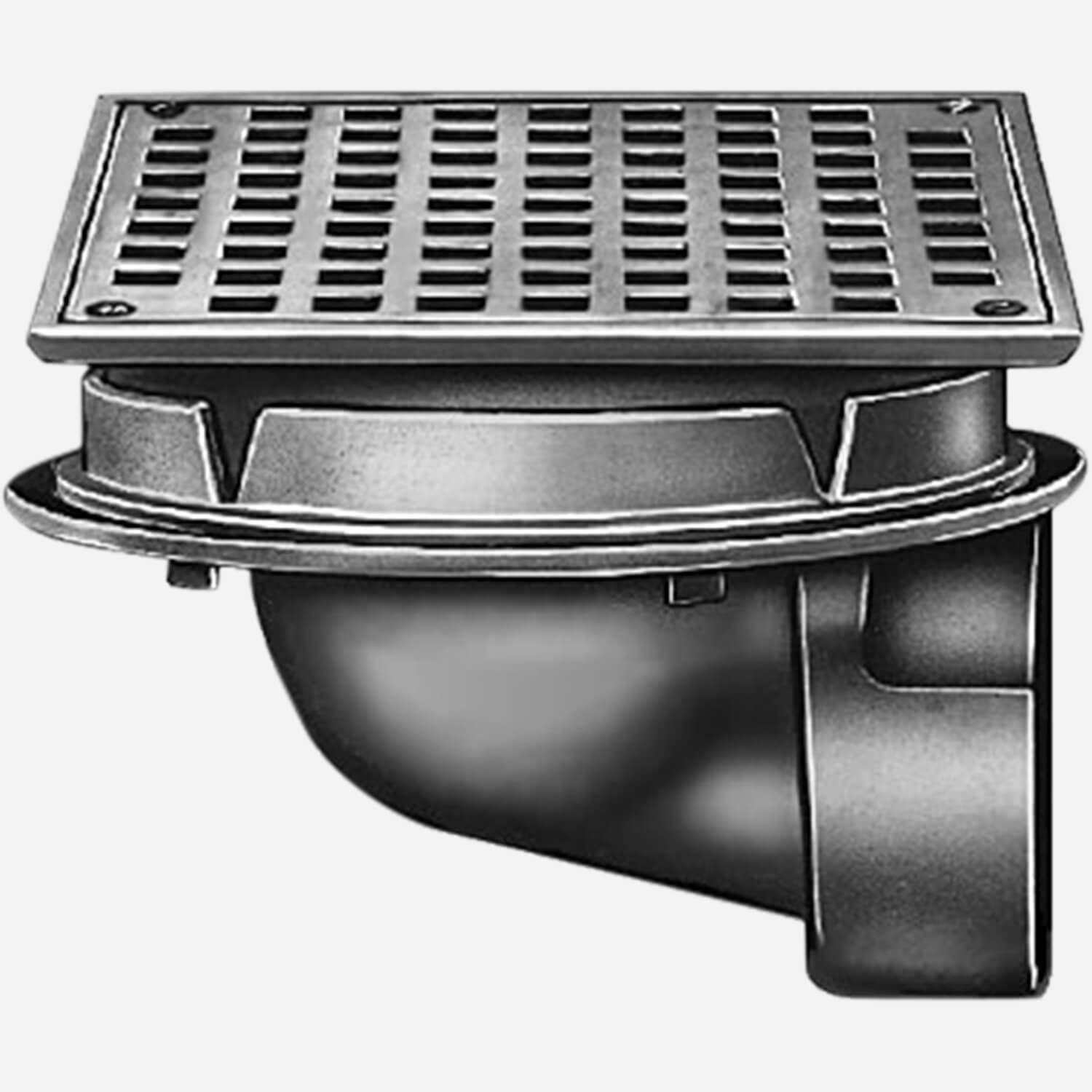

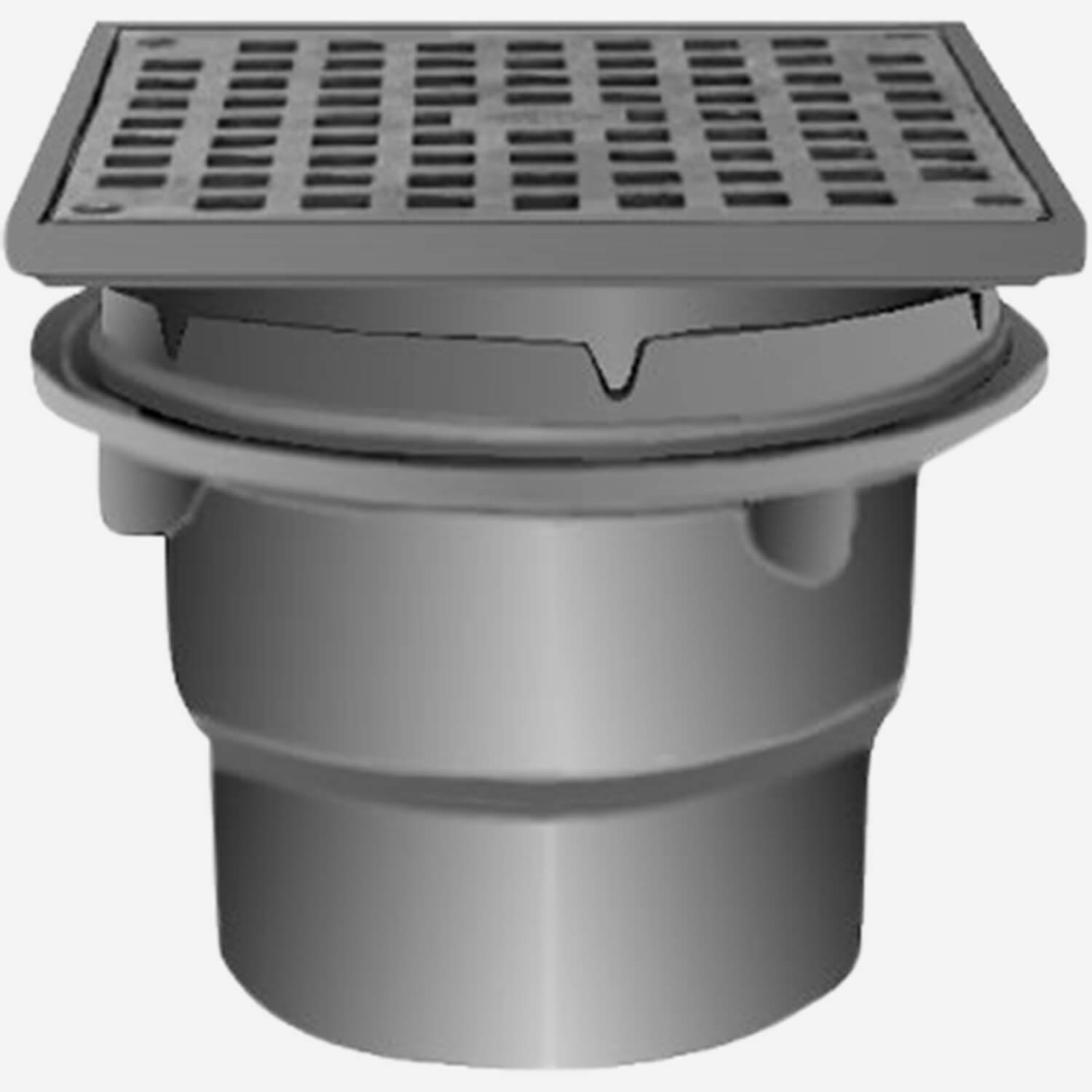

Small 8" Promenade Deck Drain

Our Small Deck Drain is designed for installation in flat roofs of all construction types used for recreational promenades.. Its 8" Sq. cast iron grate is engineered for light wastewater accumulations and light traffic where the static load is less than 2,000 lbs. (900 kg.). Tamper resistant for safety, the grate is secured to a corrosion resistant Duco coated cast iron drain body and will provide decades of service.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1470, 1480 Drain (pdf)	Small 8" Square Promenade Deck Drain [1470C \| Caulk Bottom Outlet; 1470Y \| No-Hub Bottom Outlet; 1470T \| Threaded Bottom Outlet; 1480C\| Caulk Side Outlet; 1480Y \| No-Hub Side Outlet]	624 KB
Drawings	1480 Drain (dwg)	Small 8" Square Promenade Deck Drain [1480C \| Caulk Side Outlet; 1480Y \| No-Hub Side Outlet; 1470C \| Caulk Bottom Outlet 1470Y \| No-Hub Bottom Outlet; 1470T \| Threaded Bottom Outlet]	287 KB
Drawings	1470 Drain (dwg)	Small 8" Square Promenade Deck Drain [1470C \| Caulk Bottom Outlet; 1470Y \| No-Hub Bottom Outlet; 1470T \| Threaded Bottom Outlet]	112 KB
Revit/BIM/ITM Files	1470 Drain (rfa)	Small 8" Square Promenade Deck Drain [1470C \| Caulk Bottom Outlet; 1470Y \| No-Hub Bottom Outlet; 1470T \| Threaded Bottom Outlet; 1480C\| Caulk Side Outlet; 1480Y \| No-Hub Side Outlet]	240 KB
Submittals	Submittal 1479 Drain (pdf)	Small 8" Square Promenade Deck Drain with Extension, Two Rows of Seepage Holes and Secondary Flashing Clamp [1479C \| Caulk Bottom Outlet; 1479Y \| No-Hub Bottom Outlet; 1479T \| Threaded Bottom Outlet]	1011 KB
Submittals	Submittal 1470-DEP Drain (pdf)	Small 8" Square Promenade Deck Drain with Deck Extension Plate [1470C-DEP \| Caulk Bottom Outlet; 1470Y-DEP \| No-Hub Bottom Outlet; 1470T-DEP \| Threaded Bottom Outlet]	627 KB
Submittals	Submittal 1470-E, 1480-E Drain (pdf)	Small 8" Square Promenade Deck Drain with Vertical Extension [1470C-E \| Caulk Bottom Outlet; 1470Y-E \| No-Hub Bottom Outlet; 1480C-E \| Caulk Side Outlet;1480T-E \| Threaded Side Outlet]	637 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Expansion Joint (Specify Fig. 1710) - (Fig. 1470 Only), Extension -E - (Specify Height), L Speedi-Set® Service Weight - (Fig. 1470 Only), LXH Speedi-Set® Extra Heavy - (Fig. 1470 only), NO-HUB Adaptor - Fig. 1480 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof Grate - U, T Threaded Outlet, Heel Proof -HP, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Roof Drain

Models

Small 8" Square Promenade Deck Drain with Deck Extension Plate [submittal]
1470C-DEP | Caulk Bottom Outlet
1470Y-DEP | No-Hub Bottom Outlet
1470T-DEP | Threaded Bottom Outlet

Small 8" Square Promenade Deck Drain with Roof Deck Plate [submittal]
1470C-RDP | Caulk Bottom Outlet
1470Y-RDP | No-Hub Bottom Outlet

Small 8" Square Promenade Deck Drain with Vertical Extension [submittal]
1470C-E | Caulk Bottom Outlet
1470Y-E | No-Hub Bottom Outlet
1480C-E | Caulk Side Outlet
1480T-E | Threaded Side Outlet

Small 8" Square Promenade Deck Drain with Extension,
Two Rows of Seepage Holes and Secondary Flashing Clamp [submittal]
1479C | Caulk Bottom Outlet
1479Y | No-Hub Bottom Outlet
1479T | Threaded Bottom Outle
