Name: Medium 11" Promenade Deck Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 1450

Model 1450

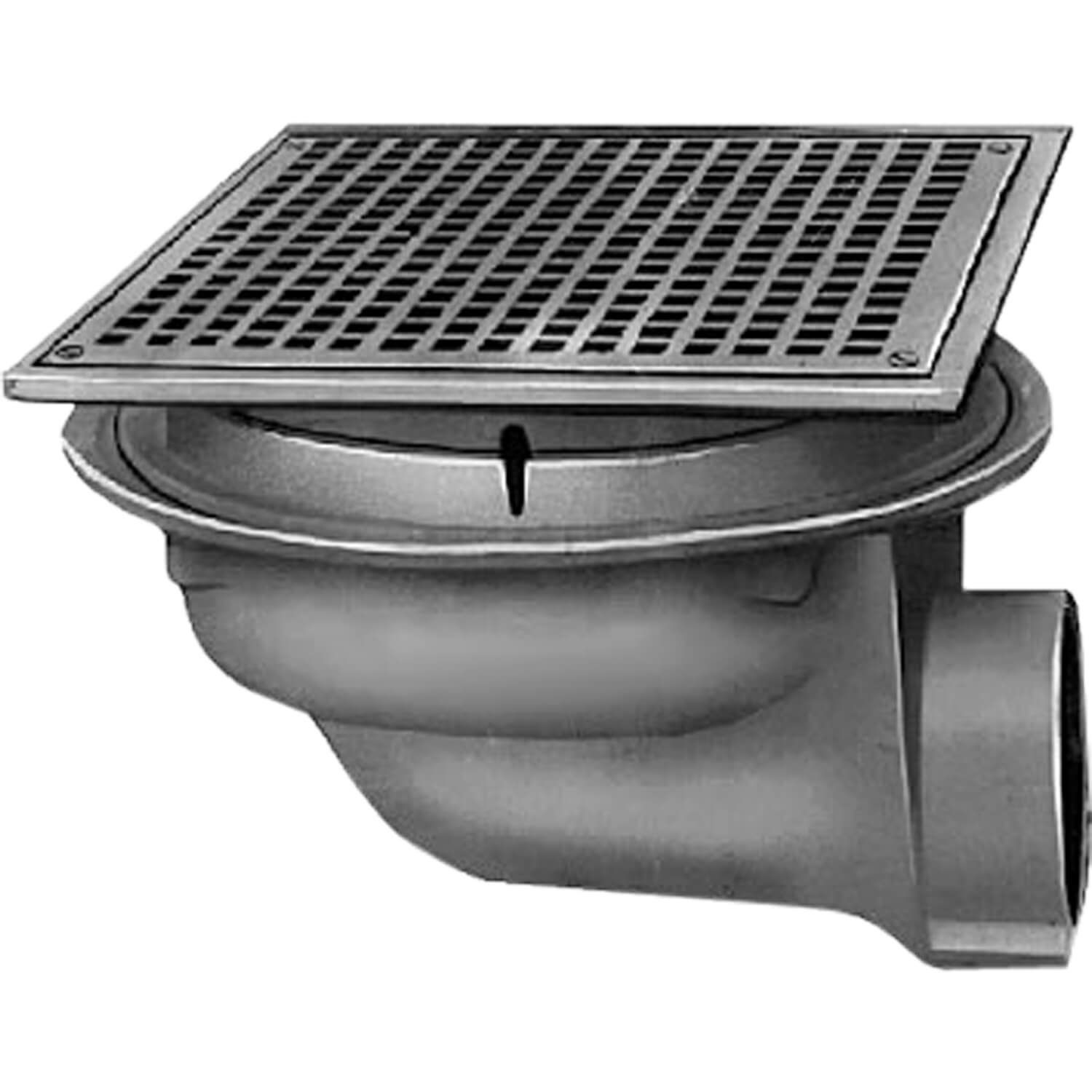

Medium 11" Promenade Deck Drain

This Medium Deck Drain is designed for installation in flat roofs of all construction types used for recreational promenades. Its 11" Sq. cast iron grate is engineered for moderate wastewater flows and light traffic where static load is less than 2,000 lbs. (900 kg.). Tamper resistant for safety, the grate is secured to a corrosion resistant Duco coated cast iron drain body and will provide decades of service.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1450, 1460 Drain (pdf)	Medium 11" Square Promenade Insulated Deck Drain [1450C \| Caulk Bottom Outlet; 1450Y \| No-Hub Bottom Outlet; 1450T \| Threaded Bottom Outlet; 1460C \| Caulk Side Outlet; 1460Y \| No-Hub Side Outlet]	645 KB
Drawings	1460 Drain (dwg)	11" Square Promenade Deck Drain [submittal] [1460C \| Caulk Side Outlet; 1460Y \| No-Hub Side Outlet; 1450C \| Caulk Bottom Outlet 1450Y \| No-Hub Bottom Outlet; 1450T \| Threaded Bottom Outlet]]	378 KB
Drawings	1459 Drain (dwg)	Medium 11" Square Promenade Insulated Deck Drain with 4" Extension and Seepage Holes [1459C \| Caulk Outlet; 1459Y \| No-Hub Outlet; 1459T \| Threaded Outlet]	117 KB
Drawings	1450 Drain (dwg)	11" Square Promenade Deck Drain [1450C \| Caulk Bottom Outlet; 1450Y \| No-Hub Bottom Outlet; 1450T \| Threaded Bottom Outlet]	263 KB
Revit/BIM/ITM Files	1450 Deck Drain Revit Drawing	11" Square Promenade Deck Drain [1450C \| Caulk Bottom Outlet; 1450Y \| No-Hub Bottom Outlet; 1460C \| Caulk Side Outlet; 1460Y \| No-Hub Side Outlet]	252 KB
Submittals	Submittal 1459 Drain (pdf)	Medium 11" Square Promenade Insulated Deck Drain with 4" Extension and Seepage Holes [1459C \| Caulk Outlet; 1459Y \| No-Hub Outlet; 1459T \| Threaded Outlet]	579 KB
Submittals	Submittal 1469 Drain (pdf)	Medium 11" Square Promenade Insulated Deck Drain with 4" Extension, Seepage Holes and Wide Flange [1469C \| Caulk Outlet; 1469Y \| No-Hub Outlet; 1469T \| Threaded Outlet]	531 KB
Submittals	Submittal 1459-EPSS Drain (pdf)	Medium 11" Promenade Insulated Roof Drain Duco Cast Iron Body and 4" Perforated Extension with Secondary Flashing Clamp and Secured Square Hole ADA Grate [1459C-EPSS \| Caulk Outlet; 1459Y-EPSS \| No-Hub Outlet; 1459T-EPSS \| Threaded Outlet]	1 MB
Submittals	Submittal 1450-DEP Drain (pdf)	11" Square Promenade Deck Drain with Deck Extension Plate [1450C-DEP \| Caulk Outlet; 1450Y-DEP \| No-Hub Outlet; 1450T-DEP \| Threaded Outlet]	551 KB
Submittals	Submittal 1450-E, 1460-E Drain (pdf)	11" Square Promenade Deck Drain with Vertical Extension [1450C-E \| Caulk Bottom Outlet; 1450Y-E \| No-Hub Bottom Outlet; 1450T-E \| Threaded Bottom Outlet; 1460C-E \| Caulk Side Outlet;1460T-E \| Threaded Side Outlet]	712 KB
Submittals	Submittal 1450-RDP Drain (pdf)	11" Square Promenade Deck Drain with Roof Deck Plate [1450C-RDP \| Caulked Bottom Outlet; 1450Y-RDP \| No-Hub Bottom Outlet]	656 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Expansion Joint (Specify Fig. 1710) - (Fig. 1450 Only), Extension -E - (Specify Height), L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1450 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1450 Only), Underdeck Clamp -C, NO-HUB Adaptor - Fig. 1460 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP, Heel Proof -HP
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Roof Drain

Models

11" Square Promenade Deck Drain with Deck Extension Plate [submittal]
1450C-DEP | Caulk Outlet
1450Y-DEP | No-Hub Outlet
1450T-DEP | Threaded Outlet]

11" Square Promenade Deck Drain with Roof Deck Plate [submittal]
1450C-RDP | Caulk Bottom Outlet
1450Y-RDP | No-Hub Bottom Outlet

11" Square Promenade Deck Drain for Insulated Roof Decks [submittal]
1459C | Caulk Bottom Outlet
1459Y | No-Hub Bottom Outlet
1459T | Threaded Bottom Outlet

11" Square Promenade Deck Drain with Perforated Stainless Steel Extension for Insulated Roof Decks [submittal]
1459C-EPSS | Caulk Bottom Outlet
1459T-EPSS | Threaded Bottom Outlet
1459Y-EPSS | No-Hub Bottom Outlet

11" Square Promenade Deck Drain for Insulated Liquid Membrane Roof Deck [submittal]
1469C | Caulk Outlet
1469Y | No-Hub Outlet
1469T | Threaded Outlet
