Name: Heavy Duty Roof Drains for Parking Area
Brand: Jay R. Smith Mfg. Co.
SKU: 1416

Model 1416

Heavy Duty Roof Drains for Parking Area

Topped with a tough 15-1/4" (390) diam. tractor grate, this corrosion resistant Duco coated cast iron roof drain will clear large wastewater volumes from parking decks and other heavy traffic areas fast. This heavy duty roof drain was specifically designed to accomodate roof construction that requires a shallow drain body and area where wastewater is free of debris.

Suffixes available:

-E | with (Vertical) Extension
-DEP | with Top Mount Deck Extentsion Plate

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1416 Roof Drain (pdf)	Heavy-Duty Roof Drain for Parking Area [1416C \| Caulk Bottom Outlet; 1416T \| Threaded Bottom Outlet; 1416Y \| No-Hub Bottom Outlet]	644 KB
Drawings	1416 Roof Drain (dwg)	Heavy-Duty Roof Drain for Parking Area [1416C \| Caulk Bottom Outlet; 1416T \| Threaded Bottom Outlet; 1416Y \| No-Hub Bottom Outlet]	45 KB
Submittals	Submittal 1416-E Roof Drain (pdf)	Heavy Duty Roof Drains for Parking Area with Extension [1416C-E \| Caulk Bottom Outlet; 1416T-E \| Threaded Bottom Outlet, 1416Y-E \| No-Hub Bottom Outlet]	634 KB
Submittals	Submittal 1416-DEP Roof Drain (pdf)	Heavy-Duty Roof Drain for Parking Area -Duco Cast Iron Body, Flashing Collar and Heavy Duty Loose Set ADA Tractor Grate with Top Mount Deck Extension Plate [1416C-DEP \| Caulk Outlet; 1416T-DEP \| Threaded Outlet; 1416Y-DEP \| No-Hub Outlet]	488 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Dome Grate -D, L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Square Top -S, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof -U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
Optional Materials	Nickel Bronze - Heel Proof -NBHP, Polished Bronze - Heel Proof -PBHP, Ductile Iron Grate - M, Galvanized Cast Iron -G, Galvanized Cast Iron Dome -CIDG, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Roof Drain

Models

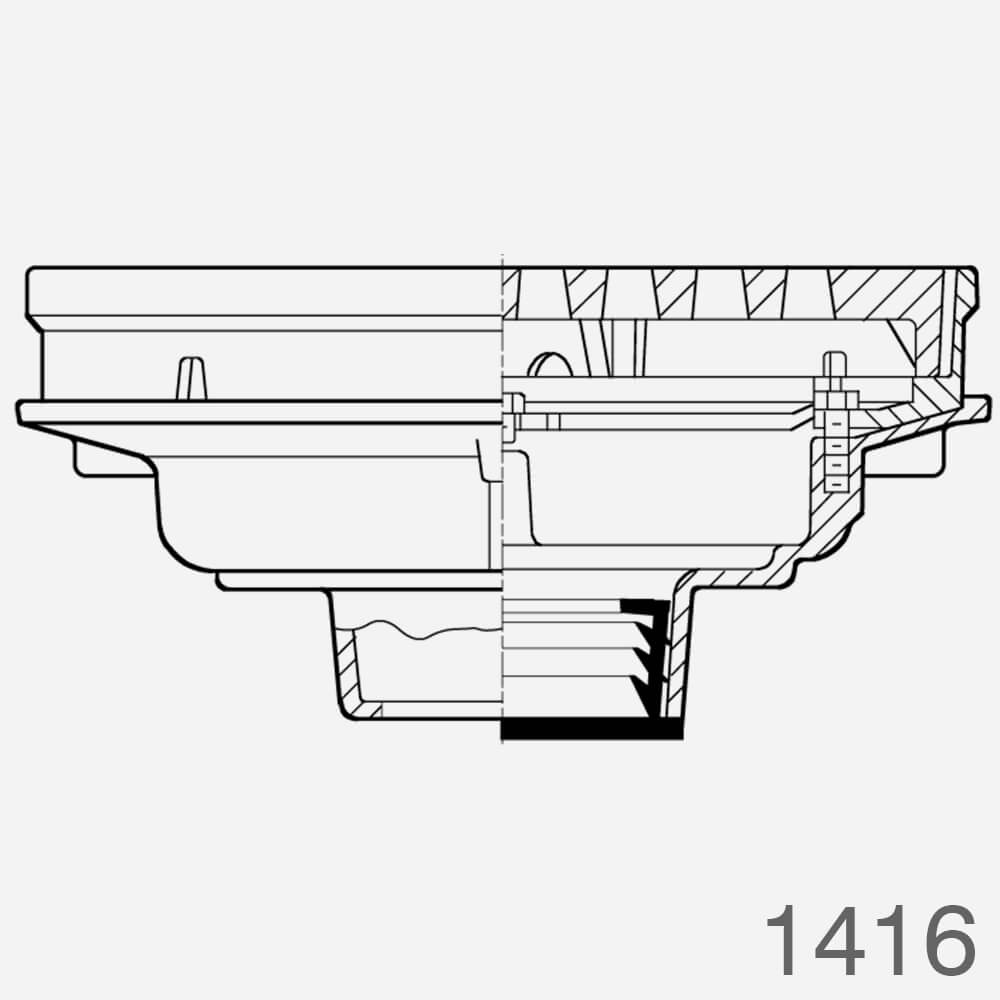

1416C | Caulked Bottom Outlet
1416T | Threaded Bottom Outlet
1416Y | No-Hub Bottom Outlet
[submittal]

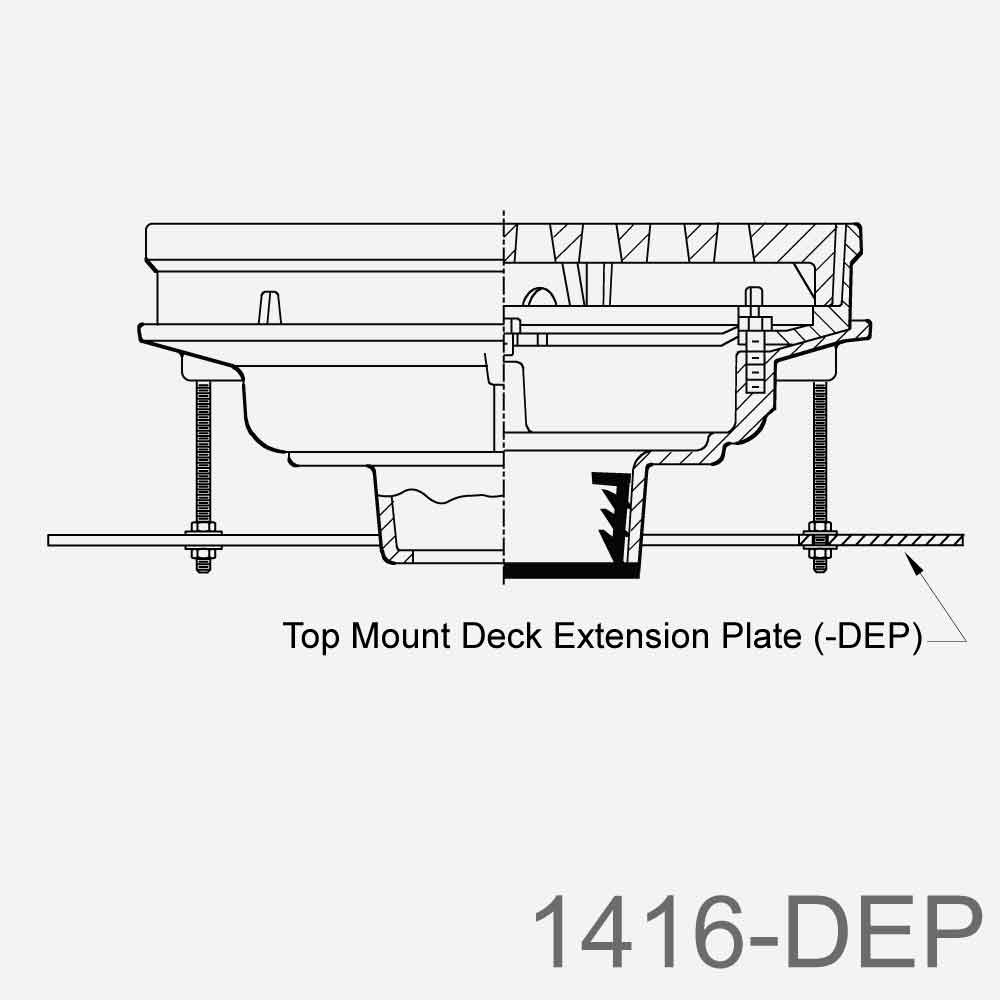

With Deck Ext. Plate
1416C-DEP | Caulked Bottom Outlet
1416T-DEP | Threaded Bottom Outlet
1416Y-DEP | No-Hub Bottom Outlet
[submittal]

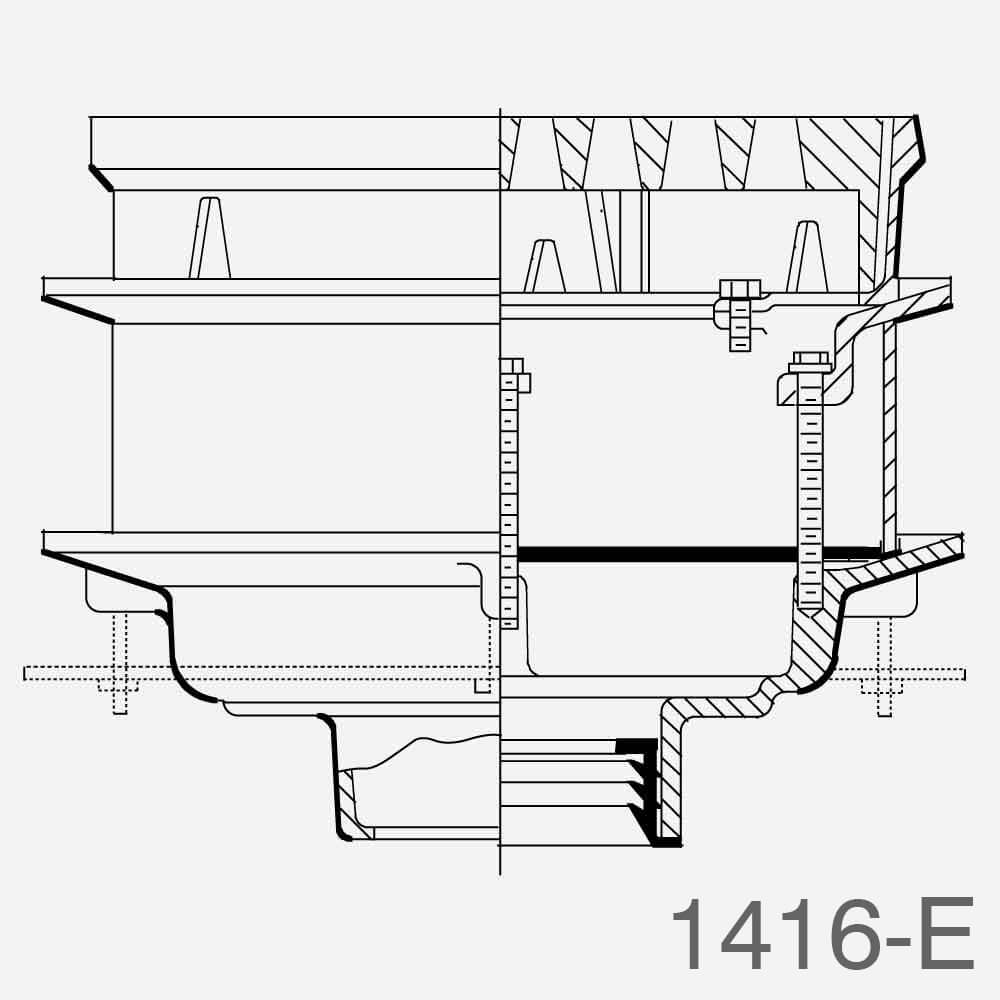

With (Vertical) Extension
1416C-E | Caulked Bottom Outlet
1416T-E | Threaded Bottom Outlet
1416Y-E | No-Hub Bottom Outlet
[submittal]

Heavy Duty Roof Drains for Parking Area
