14" Promenade Deck Drain

Name: 14" Promenade Deck Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 1410

Find A Representative

Figure 1410

Submittal

7 available

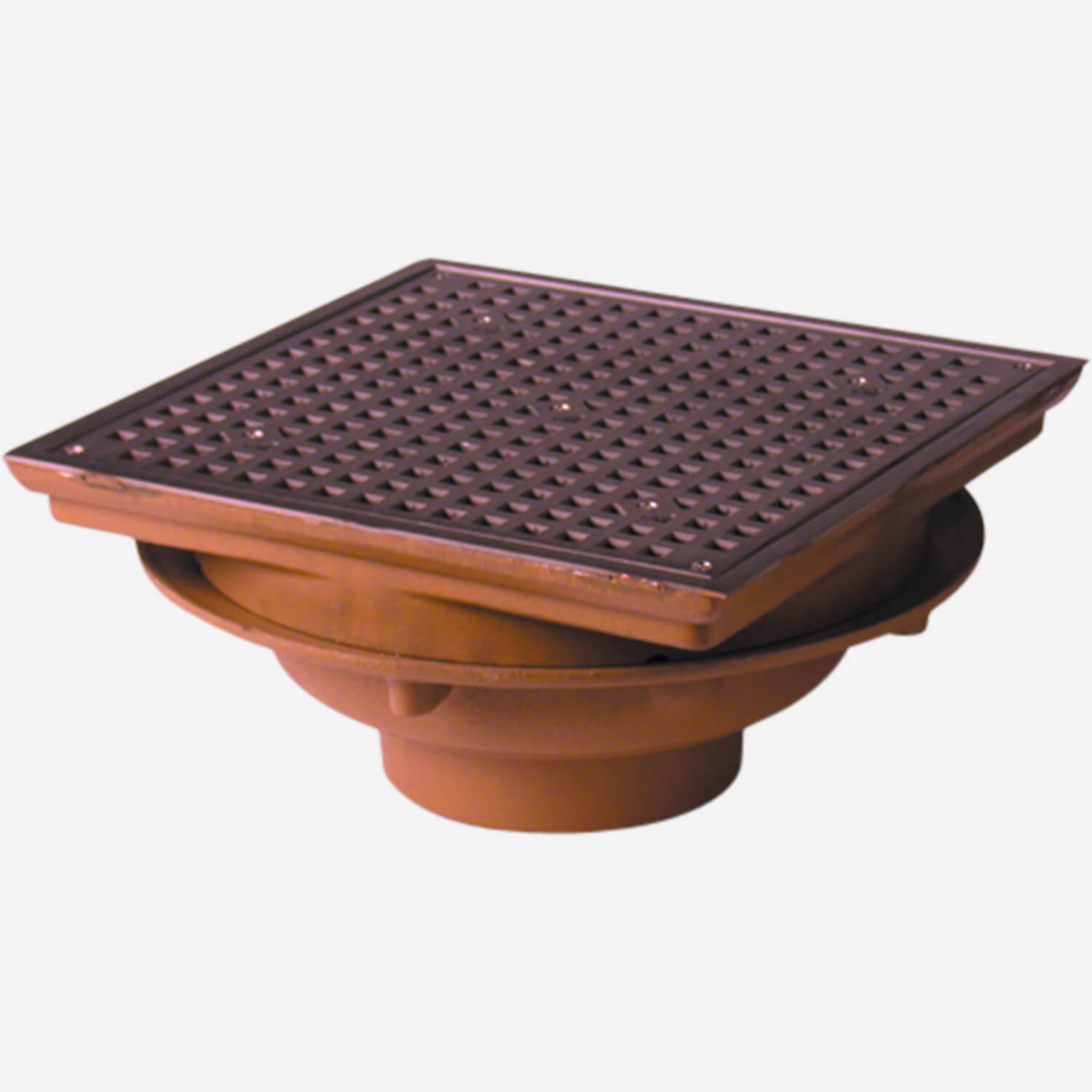

Model 1410

14" Promenade Deck Drain

Our 14" (355) sq. Deck Drain is designed for installation on roof top recreational and parking decks built using all types of roof construction methods. It is fitted with a combined flashing collar and clamp that securely grips waterproofing materials without puncturing for a leakproof bond. Constructed of Duco coated cast iron and protected by a heavy duty grate, it is engineered to withstand many years of tough traffic.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1410, 1420 Drain (pdf)	Large 14" Promenade Deck Drain [Bottom Outlet 1410C \| Caulked; 1410Y \| No-Hub; 1410T \| Threaded; Side Outlet 1420C \| Caulked; 1420T \| Threaded]	760 KB
Drawings	1420 Roof Drain (dwg)	Large 14" Promenade Deck Drain - [1420 \| Side Outlet; 1410 \| Bottom Outlet]	147 KB
Drawings	1412 Roof Drain CAD Drawing	Large 14" Heel-Proof Promenade Deck Drain with Heavy-Duty Finished Nickel Bronze Top, Bottom Outlet	89 KB
Drawings	1412-AE Roof Drain CAD Drawing	Large 14" Heel-Proof Promenade Deck Drain with Heavy Duty Finished Nickel Bronze Top and Adjustable Extension	376 KB
Drawings	1425 Roof Drain (dwg)	Large 14" Promenade Deck Drain with Adjustable Top [1425T \| Threaded Side Outlet; 1415C \| Caulk Bottom Outlet; 1415Y \| No-Hub Bottom Outlet; 1415T \| Threaded Bottom Outlet]	138 KB
Drawings	1410 Deck Drain CAD Drawing	Large 14" Promenade Deck Drain - Bottom Outlet	168 KB
Drawings	1415 Roof Drain (dwg)	Large 14" Promenade Deck Drain with Adjustable Top [1415C \| Caulk Bottom Outlet; 1415Y \| No-Hub Bottom Outlet; 1415T \| Threaded Bottom Outlet]	196 KB
Revit/BIM/ITM Files	1415 Drain (rfa)	Large 14" Promenade Deck Drain with Adjustable Top [1415C \| Caulk Bottom Outlet; 1415Y \| No-Hub Bottom Outlet; 1415T \| Threaded Bottom Outlet]	1 MB
Revit/BIM/ITM Files	1425 Drain (rfa)	Large 14" Promenade Deck Drain with Adjustable Top [1425T \| Threaded Side Outlet]	1 MB
Revit/BIM/ITM Files	1410 Deck Drain Revit Drawing	Large 14" Promenade Deck Drain - Bottom Outlet	228 KB
Submittals	Submittal 1412, 1422 Roof Drain (pdf)	Large 14" Heel-Proof Promenade Deck Drain with Heavy Duty Finished Nickel Bronze Top [Bottom Outlet 1412C \| Caulked; 1412Y \| No-Hub; 1412T \| Threaded; Side Outlet 1422C \| Caulked; 1422T \| Threaded]	591 KB
Submittals	Submittal 1412-AE Roof Drain (pdf)	Large 14" Heel-Proof Promenade Deck Drain with Heavy Duty Finished Nickel Bronze Top, Adjustable Extension, Bottom Outlet [1412C-AE \| Caulked; 1412Y-AE \| No-Hub; 1412T-AE \| Threaded]	557 KB
Submittals	Submittal 1415, 1425 Roof Drain (pdf)	Large 14" Promenade Deck Drain with Adjustable Top [1415C \| Caulk Bottom Outlet; 1415Y \| No-Hub Bottom Outlet; 1415T \| Threaded Bottom Outlet; 1425T \| Threaded Side Outlet]	763 KB
Submittals	Submittal 1410-DEP Drain (pdf)	Promenade Deck Drain - Large 14" Deck Drain with Top-Mount Deck Extension Plate [1410C-DEP \| Caulk Outlet; 1410Y-DEP \| No-Hub Outlet; 1410T-DEP \| Threaded Outlet]	551 KB
Submittals	Submittal 1410-RDP Drain (pdf)	Large 14" Promenade Deck Drain with Roof Deck Plate [Bottom Outlet 1410C-RDP \| Caulked Bottom Outlet; 1410Y-RDP \| No-Hub Bottom Outlet; 1410T-RDP \| Threaded Bottom Outlet]	627 KB
Submittals	Submittal 1412-DEP Drain (pdf)	14" Heel-Proof Promenade Deck Drain with Bottom Outlet, Heavy Duty Nickel Bronze top and Deck Extension Plate [1412C-DEP \| Caulk Outlet; 1412T-DEP \| Threaded Outlet; 1412Y-DEP \| No-Hub Outlet]	422 KB
Specifications	Specifications for Roof Drains	Specifications for Roof Drains	230 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Images	1410 - 14" Large Deck Drains (hi res jpg)		169 KB
Manuals	Technical Data for Roof Drains	Technical Data for Roof Drains	2 MB
Ordering	Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1410 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only(Fig. 1410 Only), NO-HUB Adaptor - Fig. 1420 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Heel Proof -HP, Roof Deck Plate -RDP
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Roof Drain

Models

14" PROMENADE DECK DRAIN [submittal]

Figure 1410 Series
Bottom Outlet
1410C | Caulked
1410Y | No-Hub
1410T | Threaded

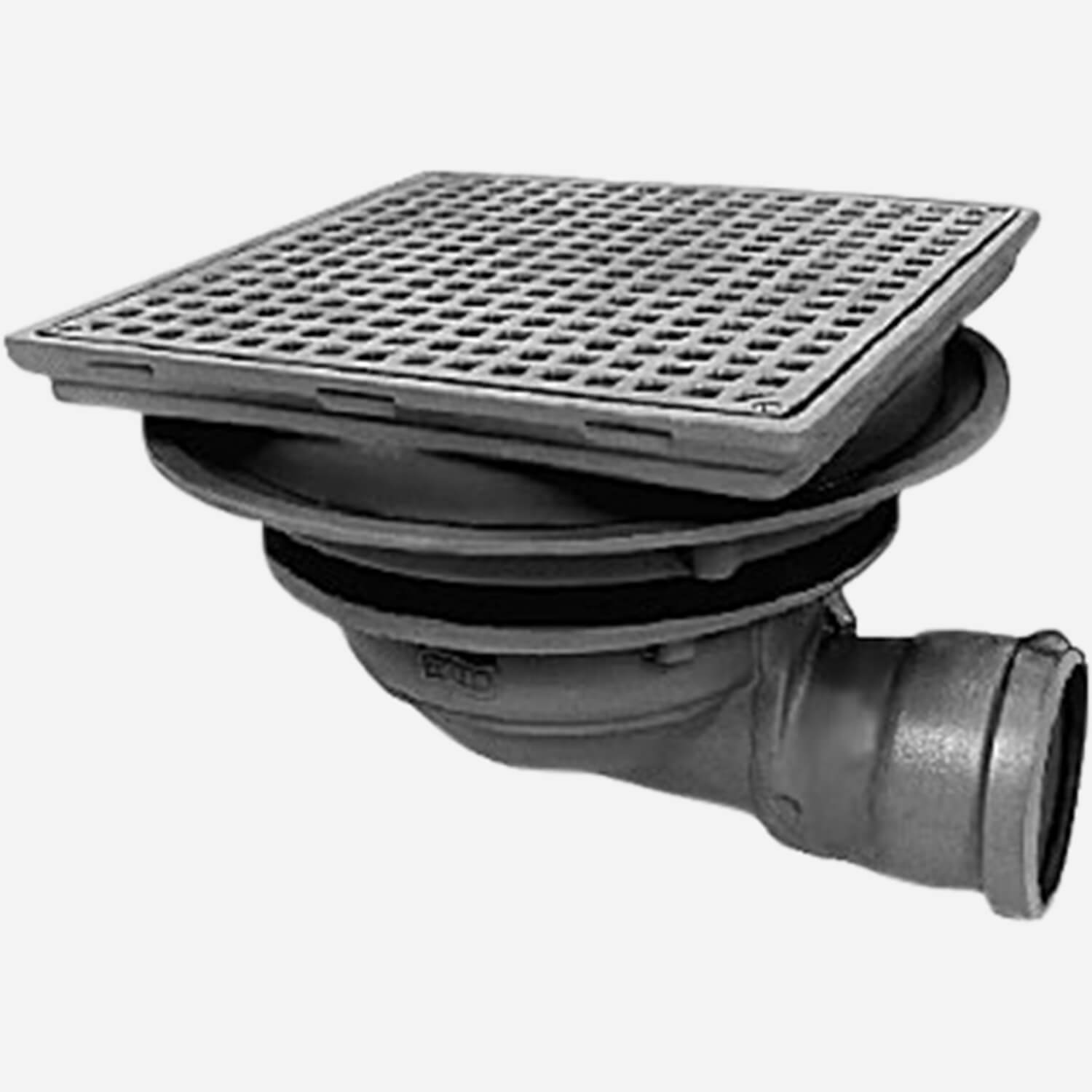

Figure 1420 Series
Side Outlet
1420C | Caulked
1420T | Threaded

14" PROMENADE DECK DRAIN WITH DECK EXTENSION PLATE [submittal]

Figure 1410-DEP Series
Bottom Outlet
1410C-DEP | Caulked
1410Y-DEP | No-Hub
1410T-DEP | Threaded

14" PROMENADE DECK DRAIN WITH ROOF DECK PLATE [submittal]

Figure 1410-RDP Series
Bottom Outlet
1410C-RDP | Caulked
1410Y-RDP | No-Hub
1410T-RDP | Threaded

14" HEEL-PROOF PROMENADE DECK DRAIN WITH HEAVY DUTY NICKEL BRONZE TOP [submittal]

Figure 1412 Series
Bottom Outlet
1412C | Caulked
1412Y | No-Hub
1412T | Threaded

Figure 1422 Series
Side Outlet
1422C | Caulked
1422T | Threaded

14" HEEL-PROOF PROMENADE DECK DRAIN WITH BOTTOM OUTLET, HEAVY DUTY NICKEL BRONZE TOP AND ADJUSTABLE EXTENSION SLEEVE [submittal]

Figure 1412-AE Series
Bottom Outlet
1412C-AE | Caulked
1412T-AE | Threaded
1412Y-AE | No-Hub

14" HEEL-PROOF PROMENADE DECK DRAIN WITH BOTTOM OUTLET, HEAVY DUTY NICKEL BRONZE TOP AND DECK EXTENSION PLATE [submittal]

Figure 1412-DEP Series
Bottom Outlet
1412C-DEP | Caulked
1412T-DEP | Threaded
1412Y-DEP | No-Hub

14" PROMENADE DECK DRAIN WITH ADJUSTABLE TOP [submittal]

Figure 1415 Series
Bottom Outlet
1415C | Caulked
1415T | Threaded
1415Y | No-Hub

Figure 1425
Side Outlet
1425T | Threaded
