Deep Sump Roof Drain with Dual Outlets

Name: Deep Sump Roof Drain with Dual Outlets
Brand: Jay R. Smith Mfg. Co.
SKU: 1077

Find A Representative

Figure 1077

Submittal

3 available

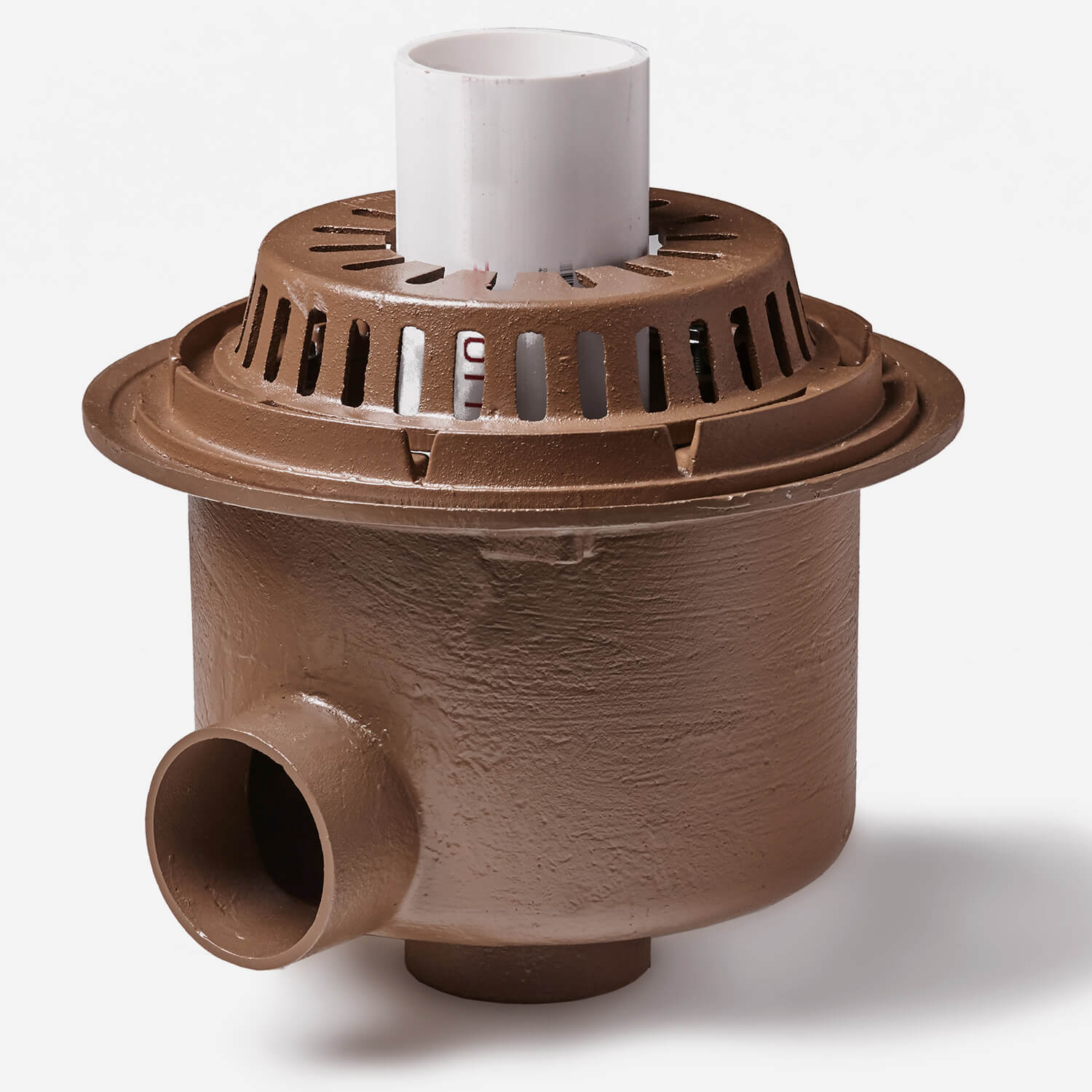

Model 1077

Deep Sump Roof Drain with Dual Outlets

Duco Coated Cast Iron Body with Side Outlet Drain Connection and Bottom Outlet Overflow Connection with Standpipe Type Overflow, Combined Flashing Clamp and Gravel Stop and Low Profile Cast Iron Dome.

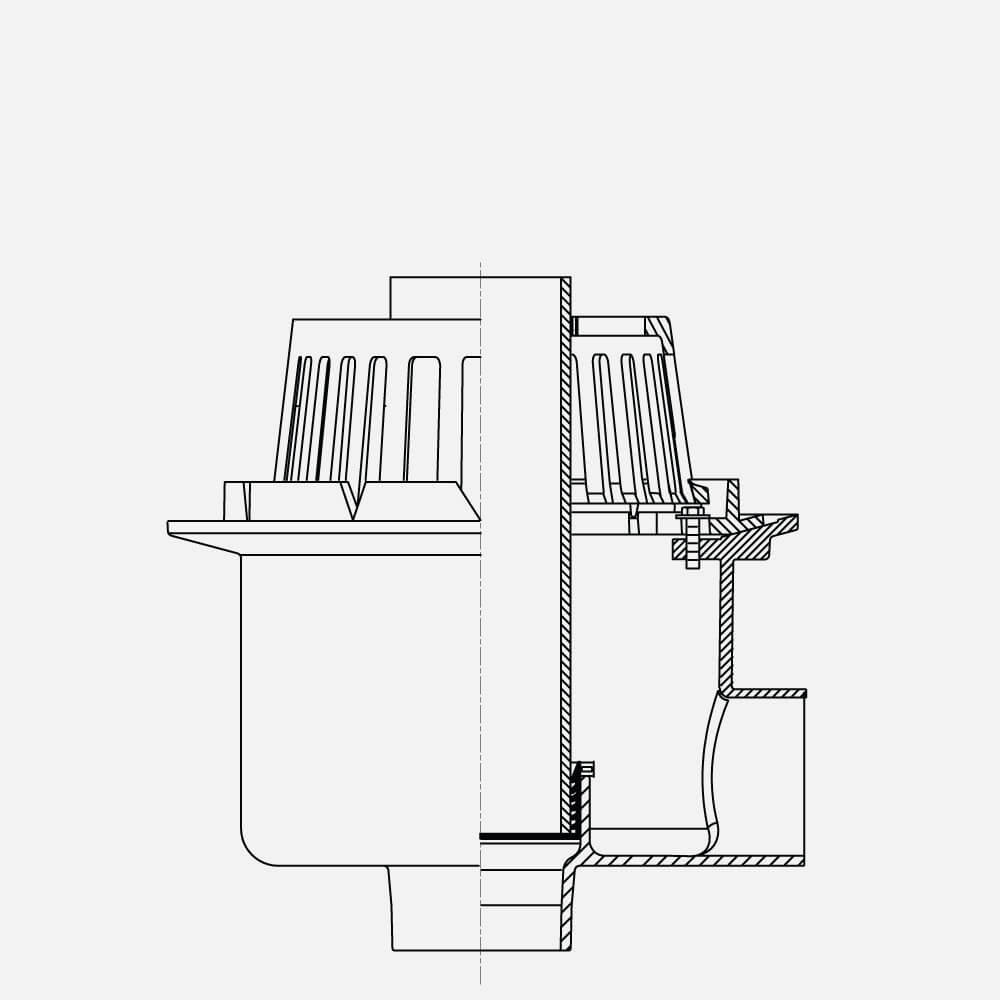

Standard Figure 1077 features a second outlet on the side at 90°.

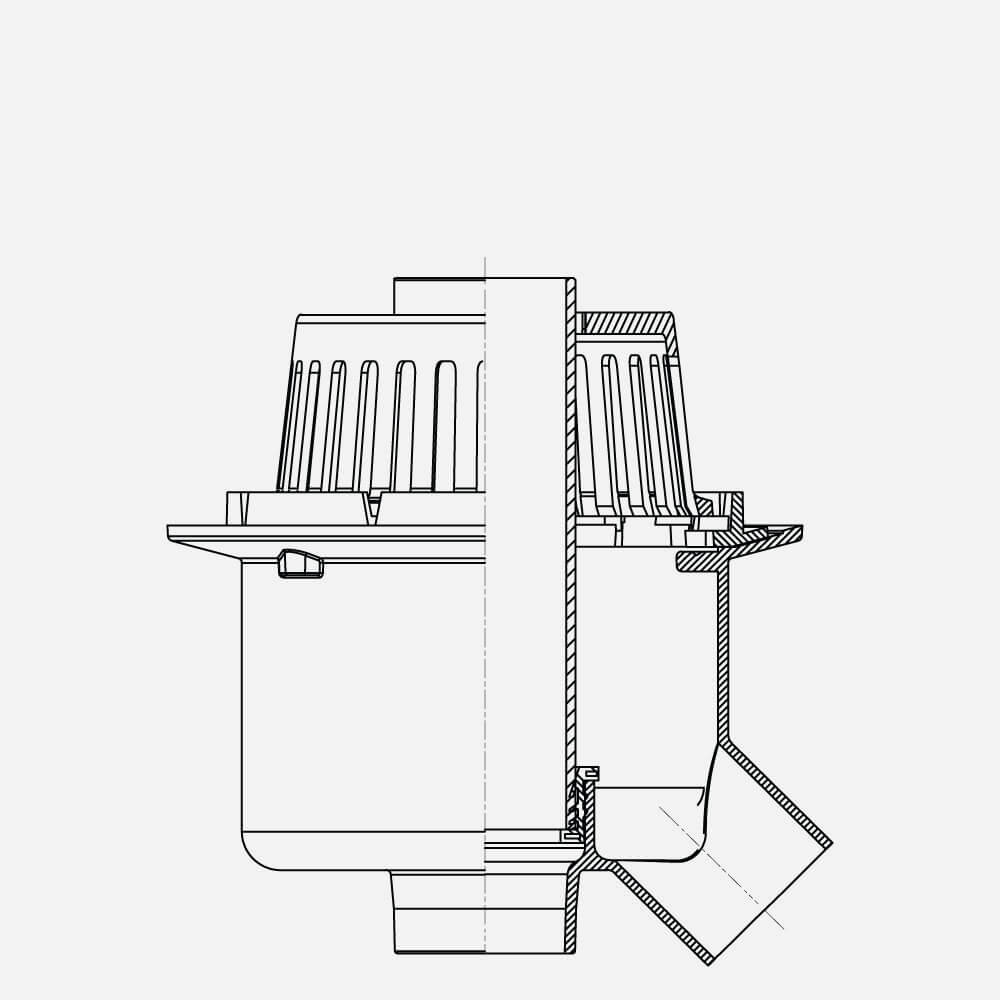

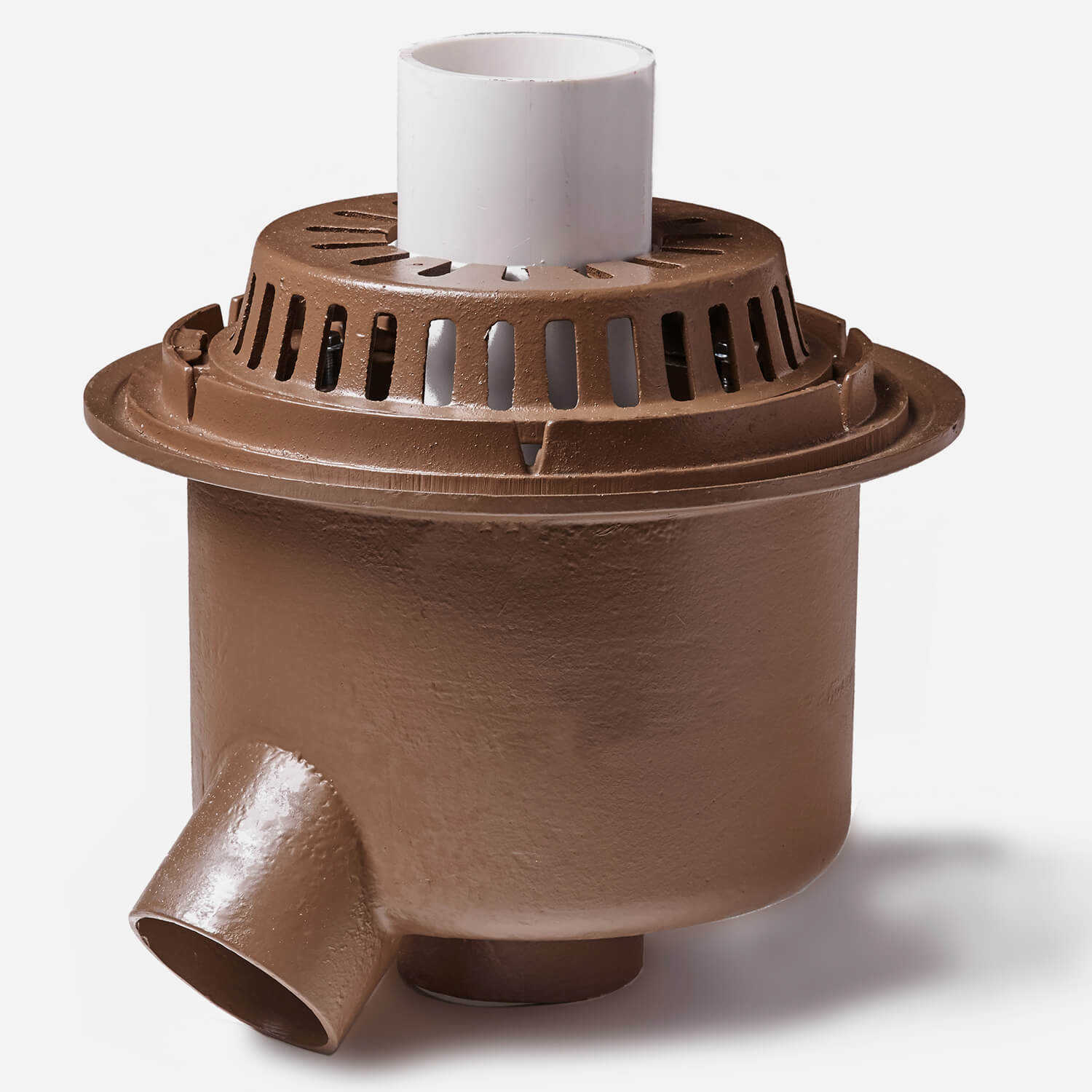

Figure 1077-45 features a second outlet on the side at 45°.

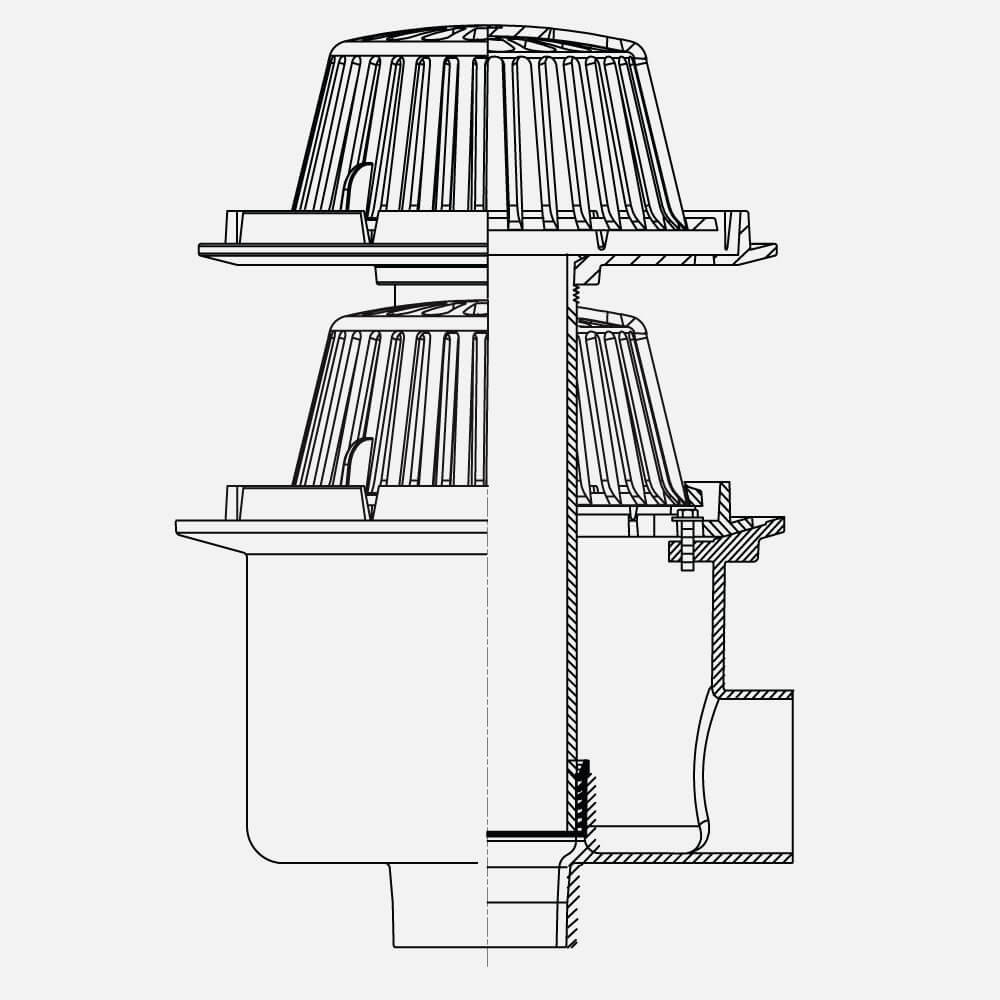

Figure 1077-OFD features a second outlet on the side at 90° and a Overflow Dome

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 1077 Drain (pdf)	Deep Sump Roof Drain with Dual Outlet - Low File Dome and Second Outlet is 90° [1077Y \| No-Hub Outlets]	852 KB
Revit/BIM/ITM Files	1077 Roof Drain (rfa)	Deep Sump Roof Drain with Dual Outlets [1077Y \| No hub; 1077Y08 \|No hub, 8" pipe size; 1077Y08-45 \| No hub, 45° Outlet, 8" pipe size; 1077-45 \| No hub, 45° Outlet]	2 MB
Submittals	Submittal 1077-45 Drain (pdf)	Deep Sump Roof Drain with Dual Outlet - Low File Dome and Second Outlet is 45° [1077Y-45 \| No-Hub Outlets]	954 KB
Submittals	Submittal 1077-OFD Drain (pdf)	Deep Sump Roof Drain with Dual Outlet - Low File Dome, Overflow Dome, Second Outlet is 90° [1077Y \| No-Hub Outlets]	612 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Roof Drain
Variations	Vandal Proof - Dome - U, Extension -E, Cast Iron Standpipe -CIS, Overflow Pipe Dome, Sump Receiver -R, Underdeck Clamp -C, Stainless Steel Gravel Guard -GG, Stainless Steel Gravel Stop, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
Optional Materials	Polyethylene Dome -PD, Rough Bronze Dome -RBD, Stainless Steel Mesh Covered Dome -SSM, Galvanized Cast Iron -G
Benefit	Labor Saving

Details

Deep Sump Roof Drain with Dual Outlets 15-3/4" (300 mm) Overall Diameter - Body with Flashing Clamp (unless otherwise stated)

Bottom and Side No-Hub Outlets [ submittal] 1077Y02 | 2" (50 mm) Pipe Size 1077Y03 | 3" (75 mm) Pipe Size 1077Y04 | 4" (100 mm) Pipe Size 1077Y06 | 6" (150 mm) Pipe Size 1077Y08 | 8" (200 mm) Pipe Size, 20" (155 mm) Overall Diameter- Body with Flashing Clamp

Bottom and 45° No-Hub Outlets [ submittal] 1077Y02-45 | 2" (50 mm) Pipe Size 1077Y03-45 | 3" (75 mm) Pipe Size 1077Y04-45 | 4" (100 mm) Pipe Size 1077Y06-45 | 6" (150 mm) Pipe Size 1077Y08-45 | 8" (200 mm) Pipe Size, 20" (155 mm) Overall Diameter- Body with Flashing Clamp

Deep Sump Roof Drain with Dual Outlets and Overflow Dome 15-3/4" (300 mm) Overall Diameter - Body with Flashing Clamp (unless otherwise stated)

Bottom and Side No-Hub Outlets [ submittal] 1077Y02-ODF | 2" (50 mm) Pipe Size 1077Y03-ODF | 3" (75 mm) Pipe Size 1077Y04-ODF | 4" (100 mm) Pipe Size 1077Y06-ODF | 6" (150 mm) Pipe Size

Popular Variation Suffix Suffix -RDP | Top Mount Deck Plate
