Model 2810 Series
Narrow Heavy Duty Trench Drains

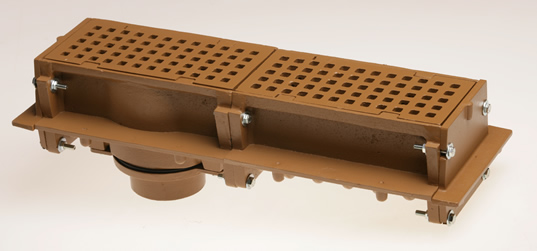

These narrow, heavy duty trench drains are for use in ramps, loading areas, and as a continuous perimeter drain. They come regularly furnished with Duco cast iron flanged body and end plates with cast iron, anti-shift, loose set, square hole grate, and dome bottom strainer.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 | 752 KB | ||
 | | 6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 | 290 KB | ||
 | | 6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 - Mid Section | 841 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 497 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Smith Trench Drain Complete Source Flyer (pdf) | 547 KB | ||
| | Your complete trench drain source. Solutions and materials | 12 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
 | | 6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 | 43 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB | ||
| | 6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 - Mid Section | 841 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 497 KB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Your complete trench drain source. Solutions and materials | 12 MB | ||
| | Smith Trench Drain Complete Source Flyer (pdf) | 547 KB | ||
| | 6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 | 43 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB |
Specifications
| Variations | Flashing Clamp -C, Vandal Proof -U, Backwater Valve -V 02(50) -04"(100) (Deep Hub Body Only), Deep Hub -DH, Not Available in 08"(200), Dome Bottom Strainer -DBS, Sediment Bucket -B (Deep Hub Body only), Quad Close Trap Seal (Specify Fig. 2692), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB |
Models
| Figure | Drain Section Section "A" | Non-Drain Section Section "B" |
|---|---|---|
| 2810 | 6" x 12" | |
| 2811 | 6" x 12" | Single 6 x 12" |
| 2812 | 6" x 12" | Two 6 x 12" Sections |
| 2813 | 6" x 12" | Three 6 x 12" Sections |
| 2814 | 6" x 12" | Four 6 x 12" Sections |
| 2815 | 6" x 12" | Five 6 x 12" Sections |
| 2816 | 6" x 12" | Six 6 x 12" Sections |
| 2817 | 6" x 12" | Seven 6 x 12" Sections |
| 2818 | 6" x 12" | Eight 6 x 12" Sections |
| 2819 | 6" x 12" | Nine 6 x 12" Sections |
| 2820 | 6" x 12" | Ten 6 x 12" Sections |
