Model 2710 Series
Heavy Duty Modular Cast Iron Trench Drains

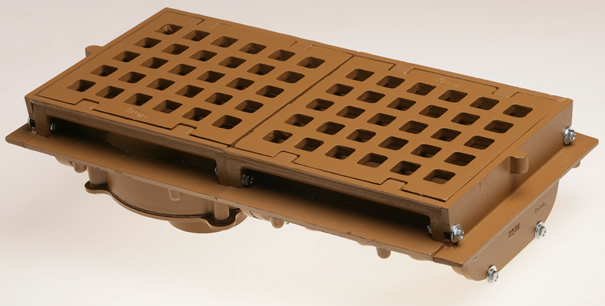

This 12.25" (310 mm) Width x 12" (305 mm) heavy duty Duco cast iron trench drain can be used as a ramp drain in loading docks, garages, or parking areas where a wide continuous trench drain is required to handle moderate traffic loads and can serve as a reservoir for large water runoff. It can also be used individually as an area drain. It is furnished with a cast iron flanged body outlet section A and flanged end plate with cast iron anti-shift loose set square hole grate.
Features
- Heavy duty cast iron construction
- Provides a wide, continuous trench
- Serves as a reservoir for large water runoff
- Available with flange and clamping collar
- Heavy duty grate rating per ASME A112.6.3
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 | 535 KB | |||
 | | 12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 | 0 | 263 KB | ||
 | | 12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 - End Piece | 0 | 256 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 0 | 497 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Trench Drain Complete Source Flyer (pdf) | 0 | 547 KB | ||
| | Your complete trench drain source. Solutions and materials | 0 | 12 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
 | | 12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 | 0 | 63 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB |
Specifications
| Variations | Backwater Valve -V 02(50), -04"(100) Deep Hub Body Only, Deep Hub -DH, Not Available in 08" (200), Dome Bottom Strainer -DBS, Flashing Clamp -C, Sediment Bucket -B - (Deep Hub Body Only), Quad Close Trap Seal (Specify Fig. 2692), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Nickel Bronze Top -NB, Polished Bronze Top -PB, Ductile Iron Grate -M |
| Product Type | Floor Drain |
Models
| Figure | Drain Section Section "A" | Non-Drain Section Section "B" |
|---|---|---|
| 2710 | 12" x 12" | |
| 2711 | 12" x 12" | Single 12 x 12" |
| 2712 | 12" x 12" | Two 12 x 12" Sections |
| 2713 | 12" x 12" | Three 12 x 12" Sections |
| 2714 | 12" x 12" | Four 12 x 12" Sections |
| 2715 | 12" x 12" | Five 12 x 12" Sections |
| 2716 | 12" x 12" | Six 12 x 12" Sections |
| 2717 | 12" x 12" | Seven 12 x 12" Sections |
| 2718 | 12" x 12" | Eight 12 x 12" Sections |
| 2719 | 12" x 12" | Nine 12 x 12" Sections |
| 2720 | 12" x 12" | Ten 12 x 12" Sections |
