Name: Quad Close "Stink Stopper" Trap Seal Device
Brand: Jay R. Smith Mfg. Co.
SKU: 2692

Model 2692

Quad Close "Stink Stopper" Trap Seal Device

10 Year Warranty, Simple to Install and Easy to Remove—No Special Tools Needed, Fits Almost Any Floor Drain

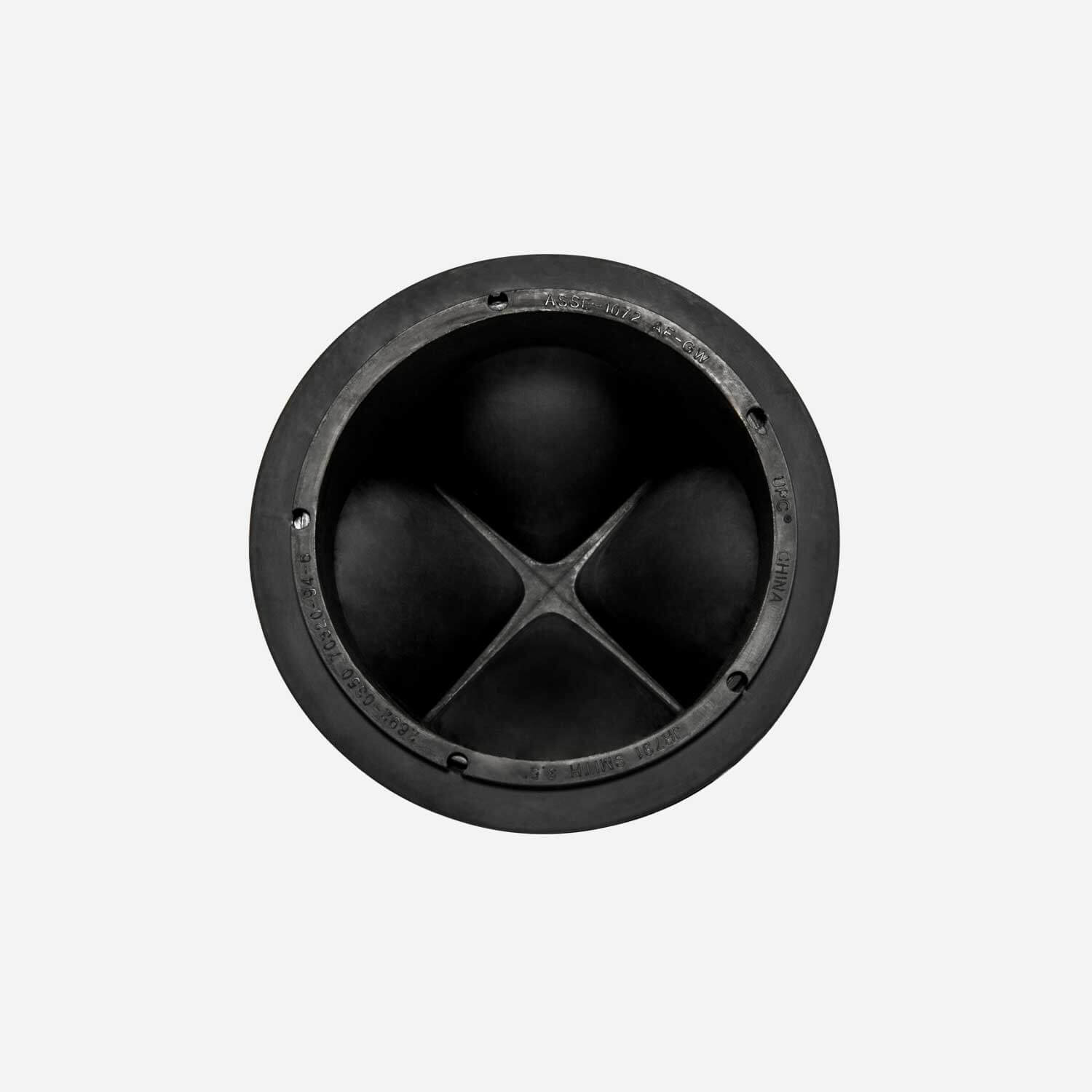

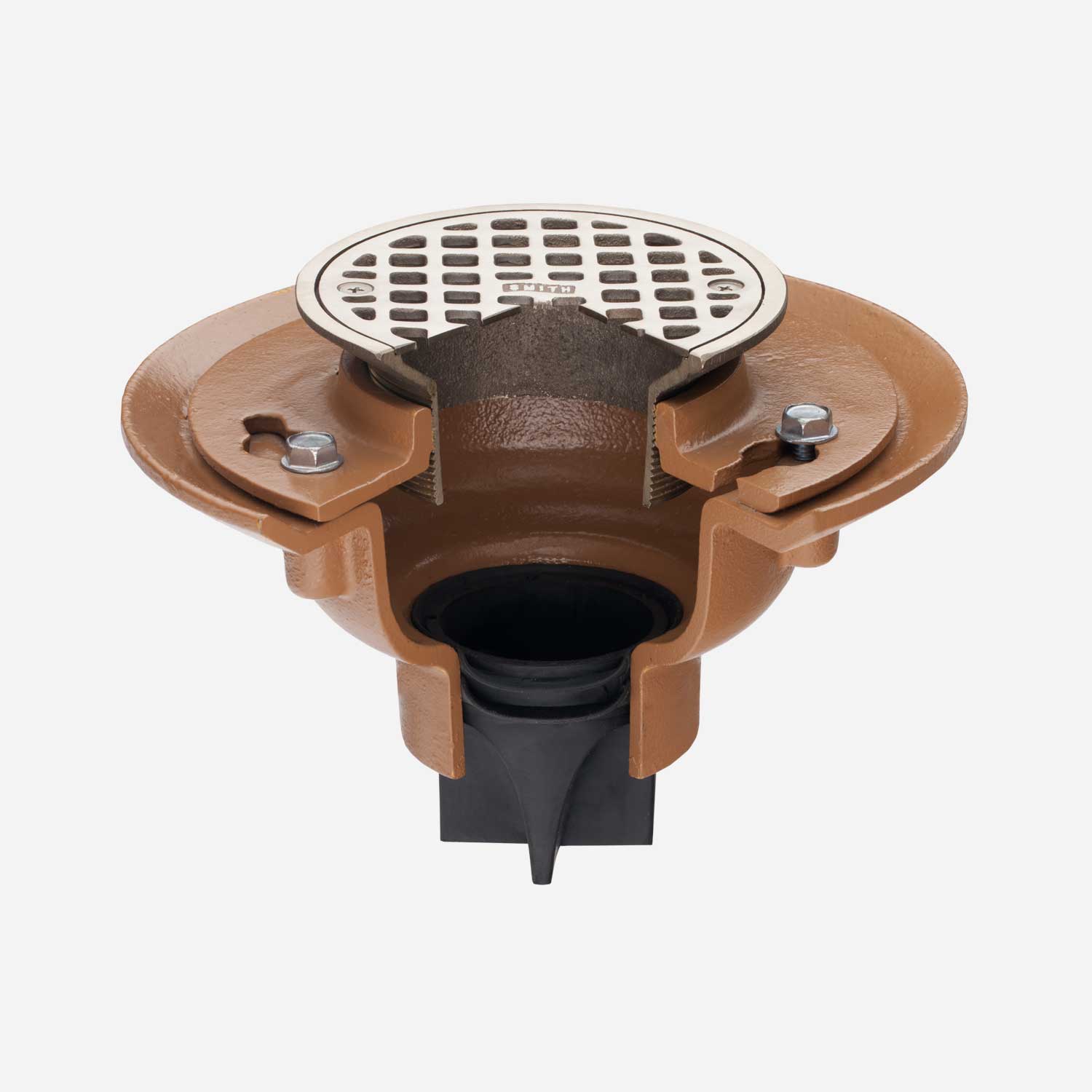

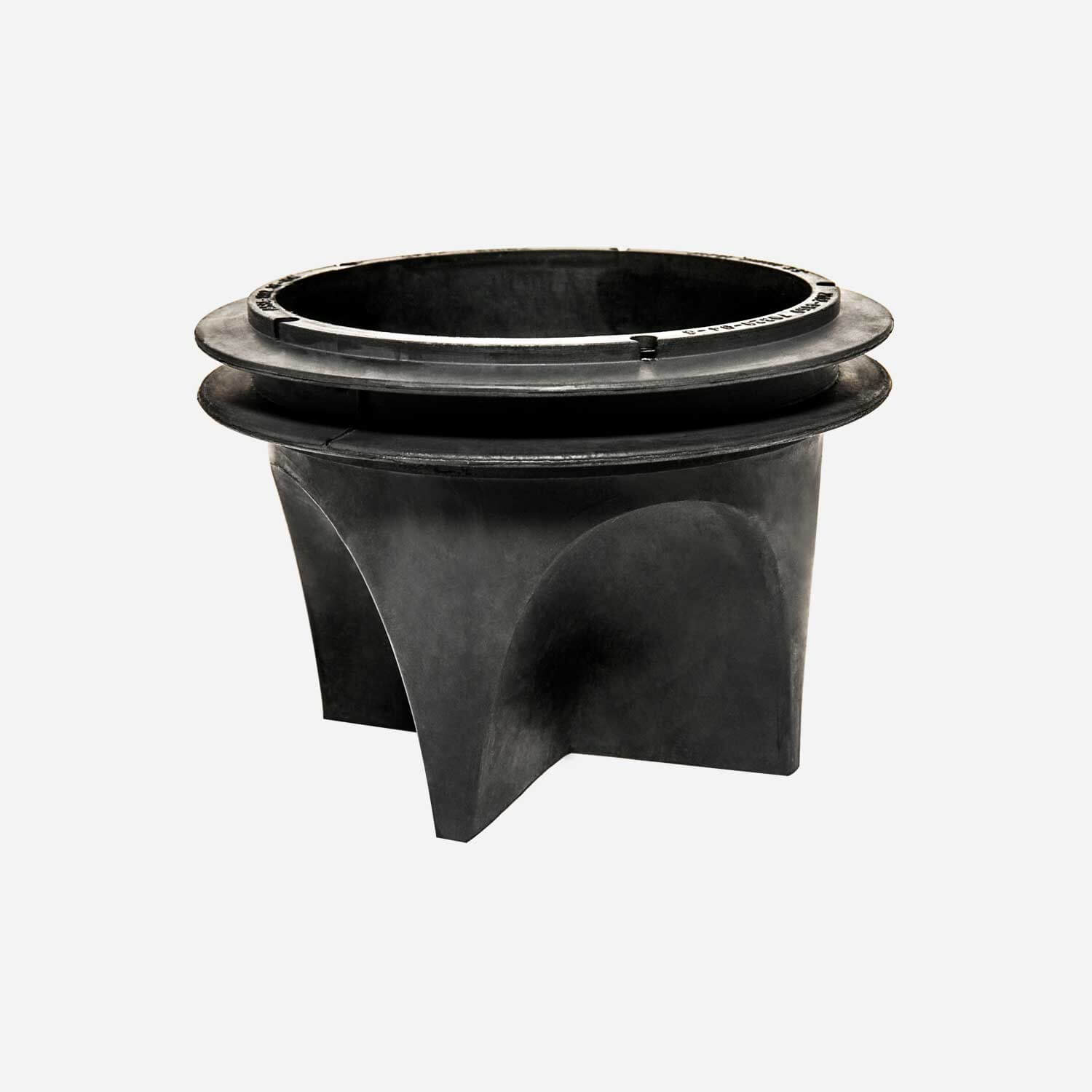

Installed to keep sewer gasses from escaping infrequently used drains, our labor-saving "Stink Stopper" Quad Close Trap Seal closes to minimize trap seal evaporation in floor drains and opens when needed to allow drainage. Made of a chemically resistant elastomer in several sizes, installation and removal require no special tools.

Pro Tip: Instead of waiting for the inevitable call from a building owner complaining of sewer gas odor, it is better to be proactive and install the “Stink Stopper” in any drain that may be used infrequently. An often overlooked application for a trap seal device is in institutions that close for the summer or long holidays. During these times, drains that usually don’t pose a problem will dry up and students and staff are greeted upon their return by a noxious odor.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2692 Trap Seal Device (pdf)	Quad Close "Stink Stopper" Trap Seal Device [2692-0150, 2692-02, 2692-03, 2692-0350, 2692-04, 2692-06]	1 MB
Drawings	2692 Trap Seal Device (dwg)	Quad Close "Stink Stopper" Trap Seal Device [2692-0150, 2692-02, 2692-03, 2692-0350, 2692-04, 2692-06]	352 KB
Articles	Article: Ease of Installation MCAA Quad Close (pdf)	Article: Ease of Installation MCAA Quad Close	150 KB
Articles	Article: Saving Time and Money with The Quad Close Trap Seal Device MCAA (pdf)	Article: Saving Time and Money with The Quad Close Trap Seal Device MCAA	124 KB
Brochures/Flyers	Quad Close Trap Seal Device Flyer (pdf)	Flyer Quad Close Trap Seal Device	3 MB
Brochures/Flyers	Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	5 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Images	2692 Trap Seal Device (hi res jpg)	Quad Close "Stink Stopper" Trap Seal Device	127 KB
Newsletters	Engineering Newsletter: Vol. 2, Issue 9 (Nov. 2012)	Fig. No. 2692 Quad Close® Trap Seal Device	2 MB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB
Unknown	Quad Close® Trap Seal Ad (pdf)	Quad Close® Trap Seal Ad (pdf)	694 KB
Videos	Quad Close "Stink Stopper" Trap Seal Device Installation Overview (video)	The Quad Close "Stink Stopper" Trap Seal Device is your solution to infrequently used floor drains that emit an unpleasant smell.	134 KB
Videos	Trap Seal Device vs the Competition (video)	Trap Seal Device vs the Competition HD	132 KB
Videos	Quad Close "Stink Stopper" Trap Seal Installation Overview (video)	The Quad Close "Stink Stopper" Trap Seal Device is your solution to infrequently used floor drains that emit an unpleasant smell. They are available in all sizes. This device can be easily removed for inspection and cleaning.	133 KB
Brochures/Flyers	Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	5 MB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Floor Drain
Benefit	Labor Saving
Compliance/Certifications	ASSE, IAPMO, Ontario
Patent	8,844,572

Models

2692-0150 | Pipe Size 1-1/2" (38 mm), Overall Height 2.09" (53 mm), 6 gal (22.7 liter) per minute flow rate
2692-02 | Pipe Size 2" (50 mm), Overall Height 2.66" (68 mm), 12 gal (45 4. liters) per minute flow rate
2692-03 | Pipe Size 3" (75 mm), Overall Height 2.66" (68 mm), 34 gal (128.7 liters) per minute flow rate
2692-0350 | Pipe 3-1/2" (89 mm), Overall Height 2.66" (68 mm), 51 gal (193.06 liters) per minute flow rate
2692-04 | Pipe Size 4" (100 mm), Overall Height 2.66" (68 mm), 73 gal (276.4 liters) per minute flow rate
2692-06 | Pipe Size 6" (150 mm), Overall Height 3.66" (93 mm), 135 gal (511 liters) per minute flow rate

Compliances:
All Figures are compliant to Ontario - BMEC (Authorization No. 19-06-392)
Figures 2692-02, 2692-03, 2692-0350, 2692-04 are all IAPMO Listed (File #7479), ASSE Listed (REC $1435 AF-GW)

The Fig. 2692 Barrier Type Floor Drain Trap Seal Protection Devices comply with all sections of the ASSE 1072 Standard.

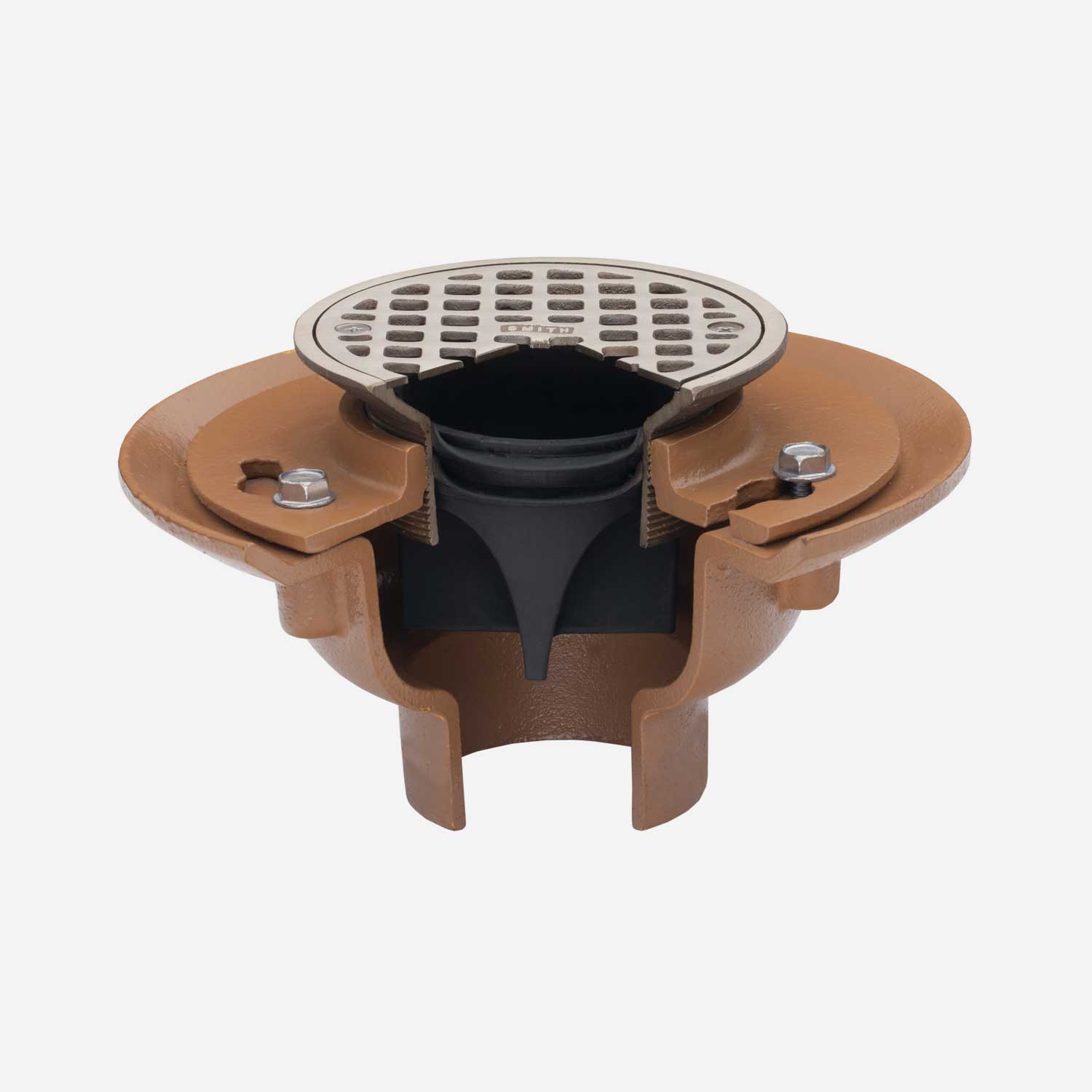

The 2692-0350 Quad Close Trap seal size installs in the throat of Smith adjustable strainers. See reverse side of submittal for illustration.

Required flow rates per ASSE Standard #1072, Section I. All sizes meets or exceeds these flow rates.

AF-GW represents floor designation/rated for all floor types per ASSE 1072, Section II.
