Model 2470
Medium Duty Drains with Outlet, Hinged Grate and Free Standing Sediment Bucket
This 12" by 14" rectangular floor drain has a removable cast iron sediment bucket topped by medium duty hinged grate for fast and frequent cleaning. Engineered to withstand loads up 4,999 lbs. (2,250kg.), it is designed for industrial use where debris must be cleared from wastewater before draining. It is available with bottom and side outlets.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Medium Duty Traffic Floor Drain with Offset Bottom Outlet, Hinged Grate, Free-Standing Sediment Bucket [2470C | Caulk Outlet; 2470T | Threaded Outlet; 2473C | With Flange, Caulk Outlet; 2473T | With Flange, Threaded Outlet] | 987 KB | ||
 | | Medium Duty Traffic Floor Drain with Offset Bottom Outlet, Hinged Grate, Free-Standing Sediment Bucket [2470C | Caulk Outlet; 2470T | Threaded Outlet; 2473C | With Flange, Caulk Outlet; 2473T | With Flange, Threaded Outlet] | 164 KB | ||
| | Medium Duty Traffic Floor Drain with Side Outlet, Hinged Grate, Free-Standing Sediment Bucket [No Flange 2475C | Caulk Outlet; 2475T | Threaded Outlet; 2475Y | No-Hub Outlet; With Flashing Flange 2478C | Caulked; 2478T | Threaded; 2478Y | No-Hub] | 105 KB | ||
| | Medium Duty Traffic Floor Drain with Side Outlet, Hinged Grate, Free-Standing Sediment Bucket [No Flange 2475C | Caulk Outlet; 2475T | Threaded Outlet; 2475Y | No-Hub Outlet; With Flashing Flange 2478C | Caulked; 2478T | Threaded; 2478Y | No-Hub] | 676 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB | ||
| | Order Guidelines for Floor Drains | 120 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Order Guidelines for Floor Drains | 120 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB |
Specifications
| Variations | Flashing Clamp -C, NO-HUB Adaptor, Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19) |
| Optional Materials | Aluminum Bucket -AB, Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB |
| Product Type | Floor Drain |
Models

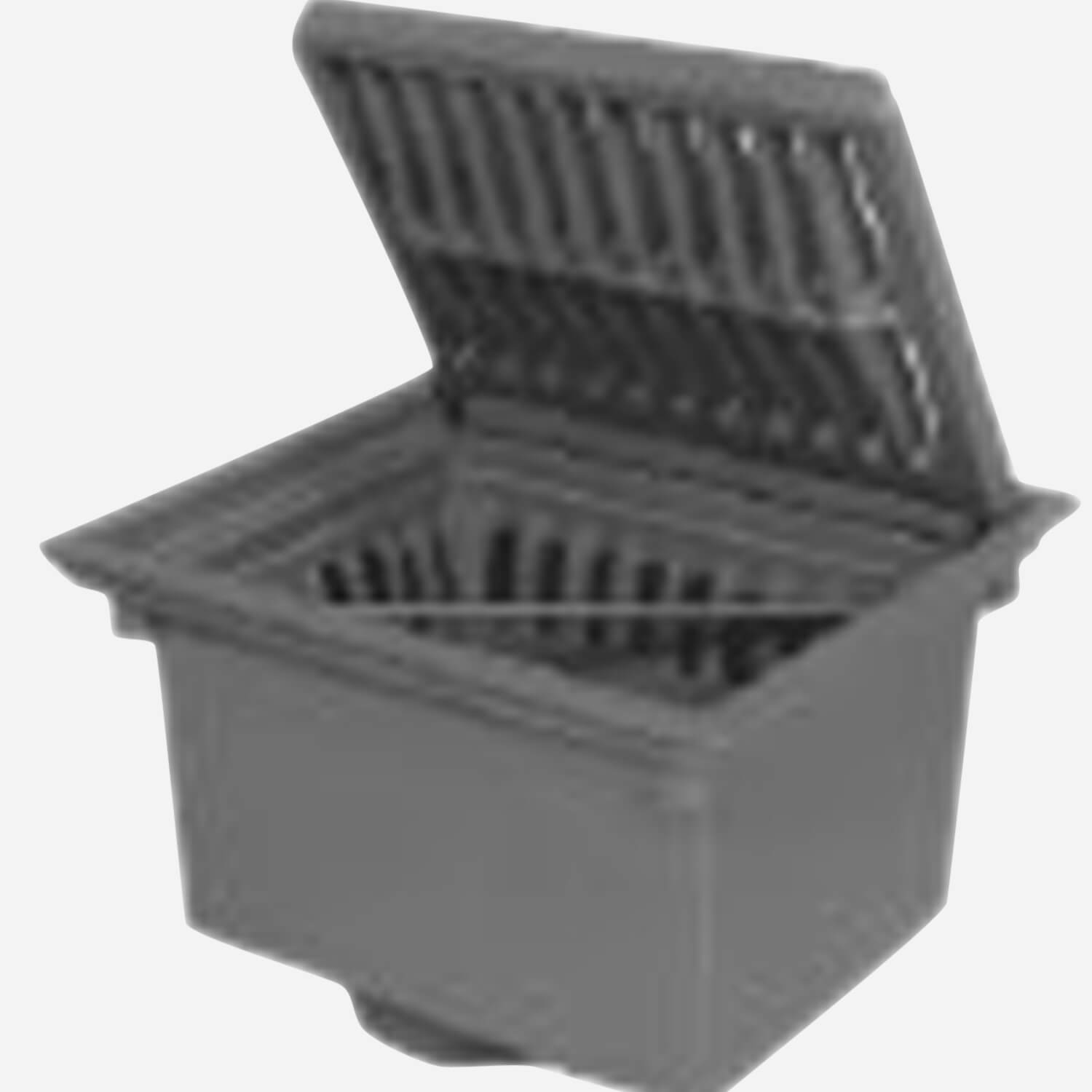

Medium Duty Traffic Floor Drain with Offset Bottom Outlet, Hinged Grate, Free-Standing Sediment Bucket
2470C | No Flange, Caulk Outlet
2470T | No Flange, Threaded Outlet
2473C | With Flashing Flange, Caulk Outlet
2473T | With Flashing Flange, Threaded Outlet

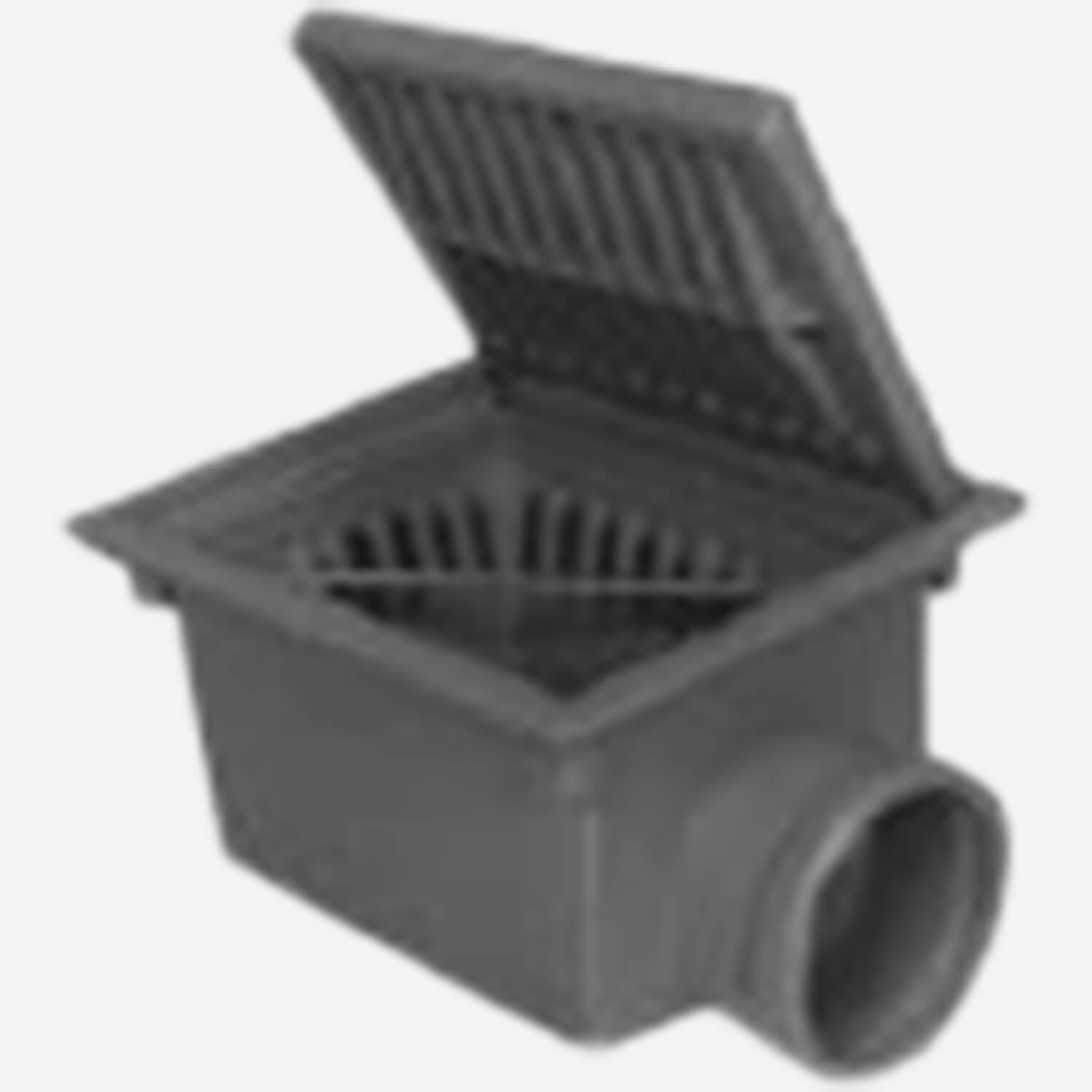

Medium Duty Traffic Floor Drain with Side Outlet, Hinged Grate, Free-Standing Sediment Bucket
2475C | No Flange, Caulk Outlet
2475T | No Flange, Threaded Outlet
2475Y | No Flange, No-Hub Outlet
2478C | With Flashing Flange, Caulk Outlet
2478T | With Flashing Flange, Threaded Outlet
2478Y | With Flashing Flange, No-Hub Outlet
