Model 2310 and 2315
Medium Duty Drains with Round Adjustable Tops
The adjustable 8.5" bar grate of this medium duty Duco cast iron drain will support loads up to 4,999 lbs/2,250 kg. The top is also adjustable, allowing easy and accurate leveling of the bar grate with adjacent flooring to prevent tripping and other hazards.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Medium Duty Floor Drains with 8-1/2" Round Adjustable Tops [Bottom Outlets 2310C | Caulked, 2310T | Threaded, 2310Y | No-Hub; Side Outlet 2315C | Caulked, 2315Y | No-Hub] | 1 MB | ||
 | | Medium Duty Floor Drains with 8-1/2" Round Adjustable Tops [Bottom Outlets 2310C | Caulked, 2310T | Threaded, 2310Y | No-Hub; Side Outlet 2315C | Caulked, 2315Y | No-Hub] | 338 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB | ||
| | Order Guidelines for Floor Drains | 120 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Order Guidelines for Floor Drains | 120 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB |
Specifications
| Variations | Vandal Proof Grate - U, Extension -E - (Specify Height), T Threaded Outlet, Square Top -S, Hinged Grate -H, T-Threaded Outlet, Closure Plug -XP (Fig. 2310 only), Flat Bottom Strainer -FBS (Fig. 2310 only), L Speedi-Set Service Weight (Fig. 2310 only), LXH Speedi-Set Extra Heavy (Fig. 2310 only), NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 2315 only), Trap Primer Connection -P050 1/2"(13) & -P075 (3/4"(19), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Nickel Bronze Top - NB, Polished Bronze Top - PB, Ductile Iron Grate - M, Galvanized Cast Iron Body -G, Stainless Steel (Specify Fig. 9725) |
Models
Duco Cast Iron Body and Flashing Collar with Adjustable Top and Slotted ADA Grate

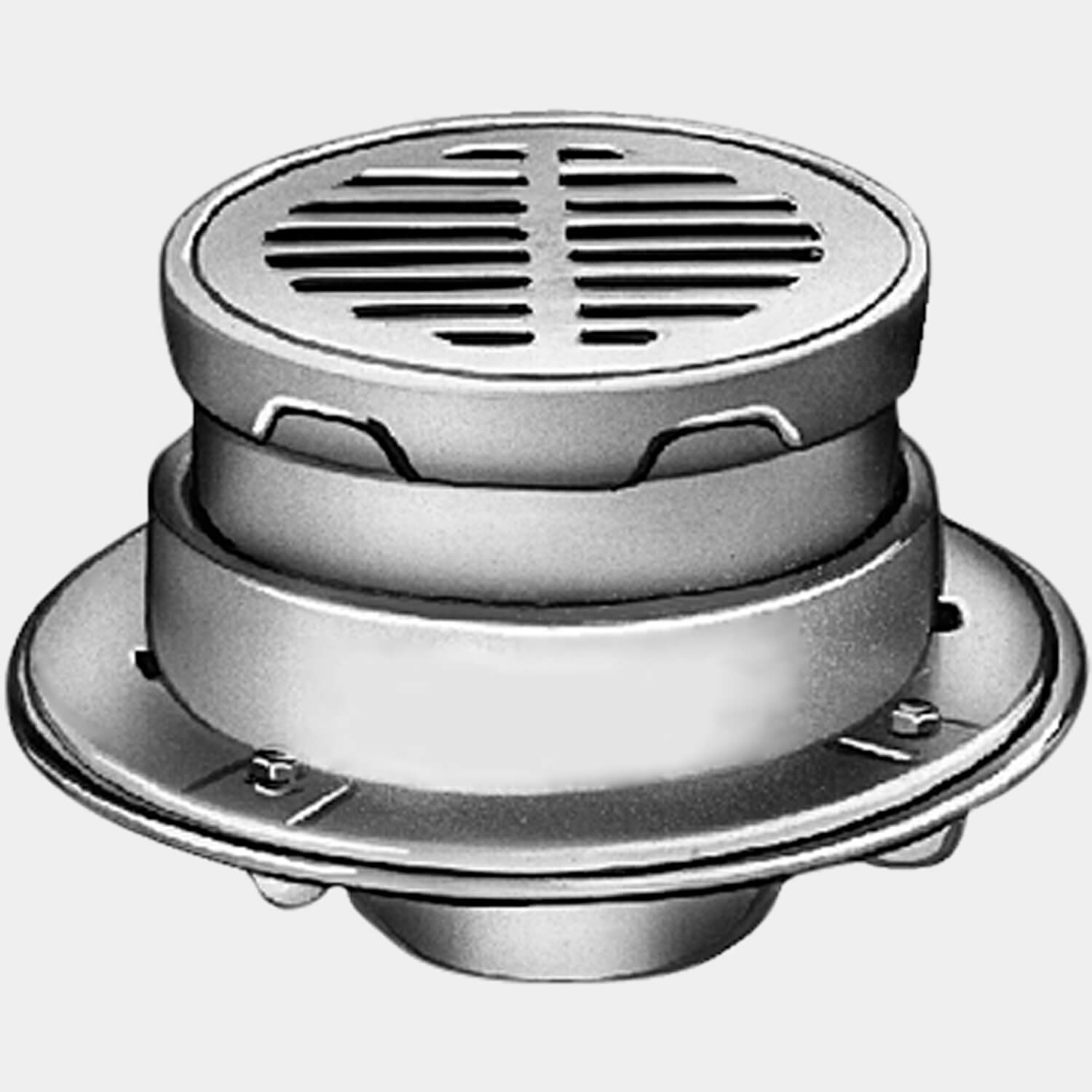

Bottom Outlet
2310C | Caulk Outlet
2310T | Threaded Outlet
2310Y | No-Hub Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100), 05"(125), 06"(150)

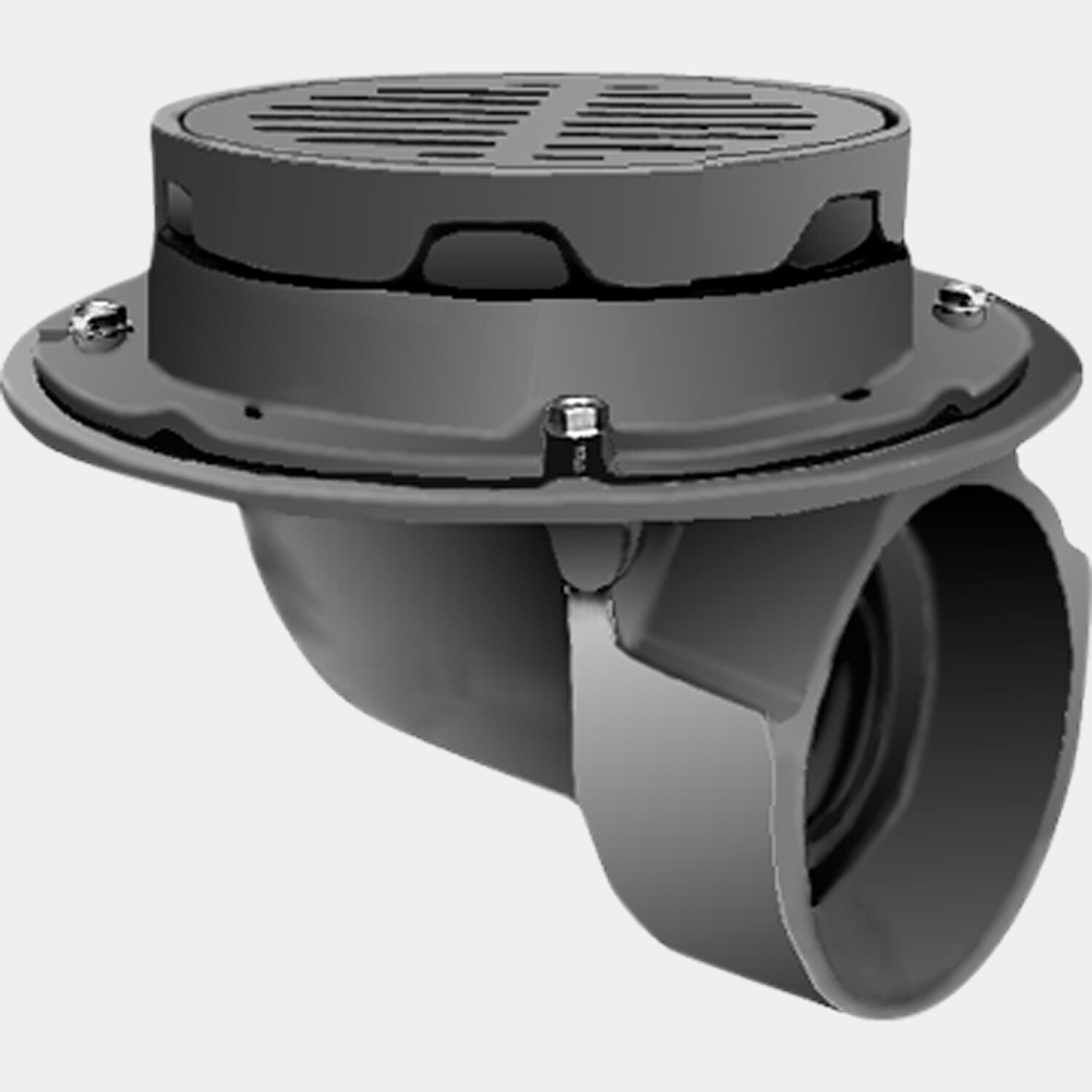

Side Outlet
2315C | Caulk Outlet
2315T | Threaded Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100)
