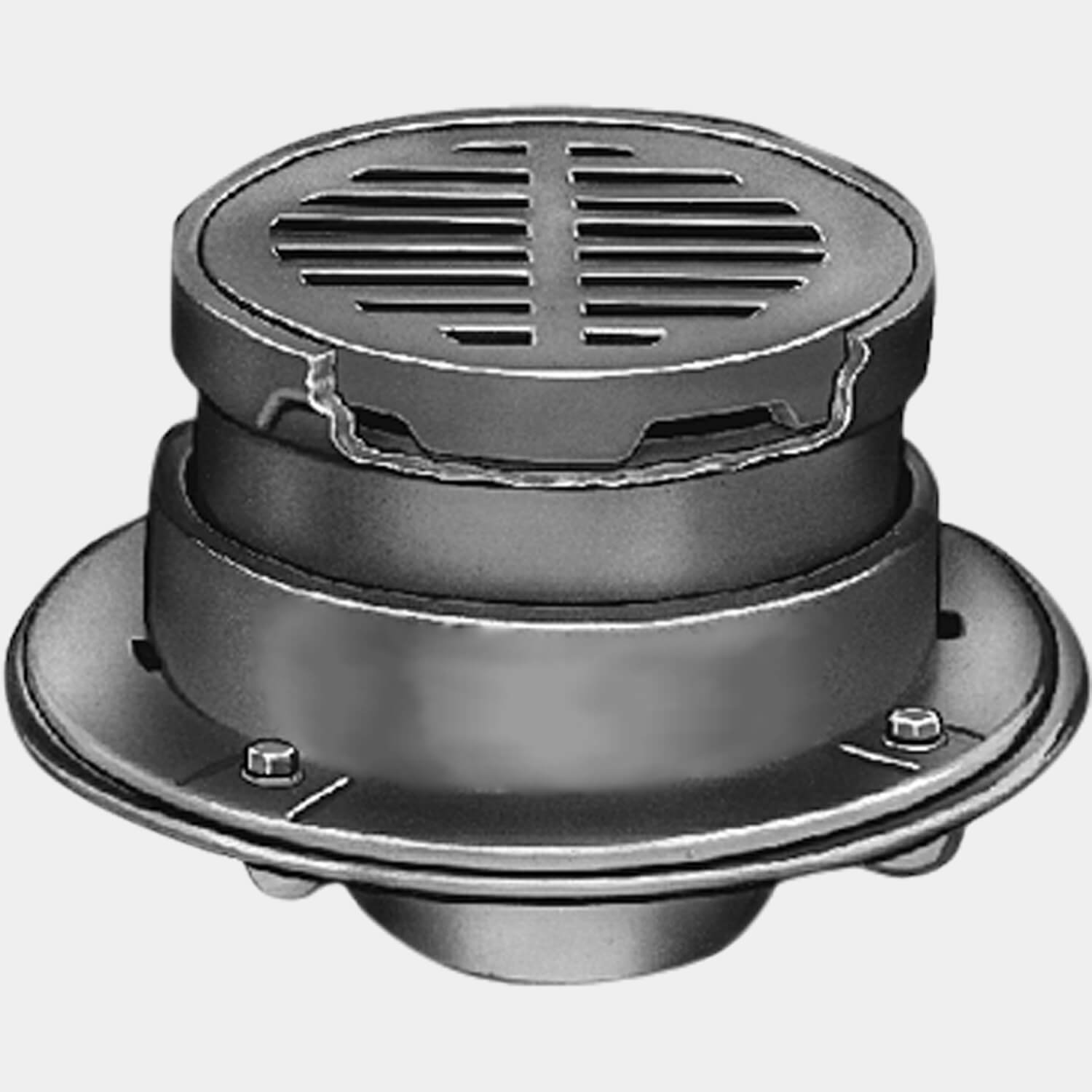

Model 2320 and 2325
Medium Duty Drain with Tractor Grate
The adjustable 8.5" tractor grate of this medium duty Duco cast iron drain will support loads up to 4,999 lbs. (2,250 kg.). The grate is also adjustable and can be easily and accurately leveled with adjacent flooring to prevent tripping hazards.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Medium Duty Floor Drain with Tractor Grate and 8-1/2" Round Adjustable Tops [Bottom Outlet 2320C | Cauked, 2320T | Threaded, 2320Y | No-Hub; Side Outlet 2325C | Caulked, 2325T | Threaded] | 974 KB | |||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 0 | 98 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 0 | 145 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB | ||
| | Parts Order Guide for Floor Drains | 0 | 6 MB |
Specifications
| Variations | Vandal Proof Grate - U, Extension -E - (Specify Height), T Threaded Outlet, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Flat Bottom Strainer -FBS (Fig. 2320 only), L Speedi-Set Service Weight (Fig. 2320 only), LXH Speedi-Set Extra Heavy (Fig. 2320 only), NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 2325 only), Bucket -B, Closure Plug -XP (Fig. 2320 only), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB, Ductile Iron Grate - M |
Models
Duco Cast Iron Body and Flashing Collar with Adjustable Top and ADA Tractor Grate
Bottom Outlet
2320C | Caulk Outlet
2320T | Threaded Outlet
2320Y | No-Hub Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100), 05"(125), 06"(150)
Side Outlet
2325C | Caulk Outlet
2325T | Threaded Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100)
