Light Duty Floor Drain

Name: Light Duty Floor Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 2280 and 2285

Find A Representative

Figure 2280 and 2285

Submittal

Submittal 2280 Floor Drain

Model 2280 and 2285

Light Duty Floor Drain

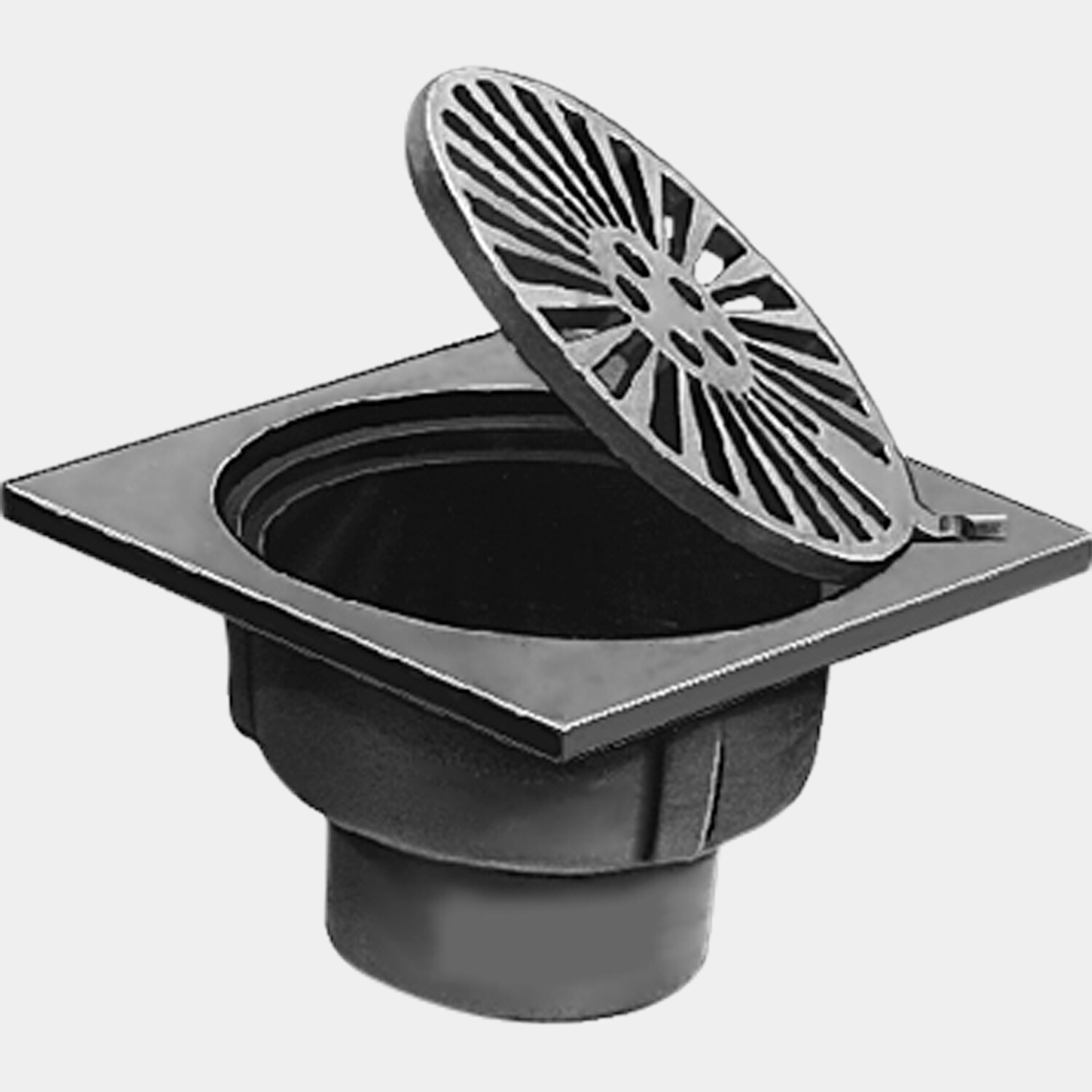

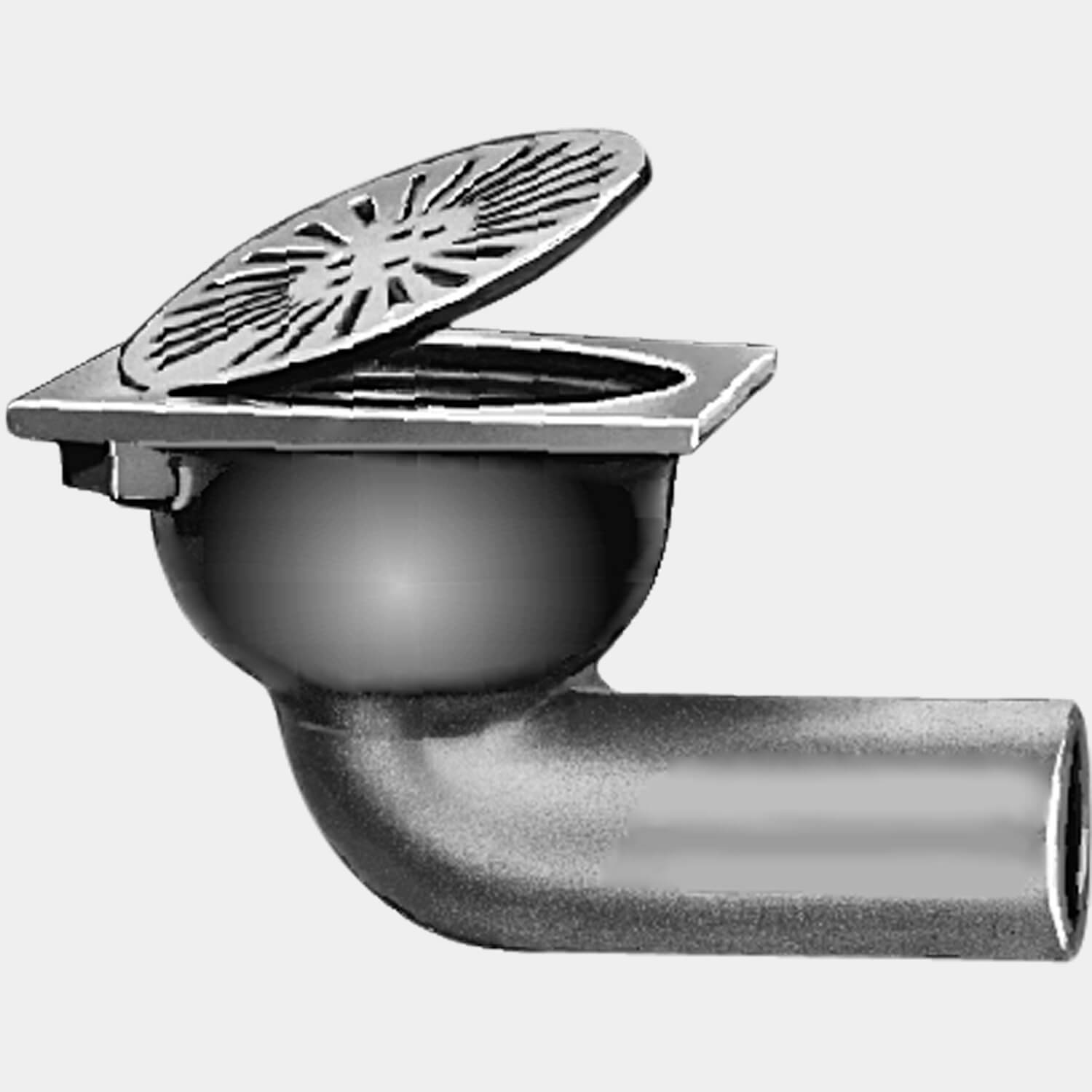

This light duty, Duco cast iron floor drain is engineered for installation on-grade and can support loads of less than 2,000 lbs. (900kg.). It is fitted with a 7.5" diam. slotted cast iron grate that is hinged to a 10"square top plate eliminating potential loss of the grate and preventing tripping and other hazards.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2280 Floor Drain	Light Duty Drains - Hinged Grate	671 KB
Drawings	2280 Floor Drain (dwg)	Light Duty Drains - Hinged Grate (dwg)	44 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 2280 only), Vandal Proof Top -U, T Threaded Outlet (Fig. 2280 only), (2) 3/8” (10) Tappings -TAP, Sediment Bucket -B
Optional Materials	Galvanized Cast Iron -G

Model	Description
2280C	Caulk Outlet
2280T	Threaded Outlet
2285S	Spigot Outlet Sized for No-Hub and/or Service Weight
