Name: Auxiliary Inlet Fittings
Brand: Jay R. Smith Mfg. Co.
SKU: 2695

Model 2695

Auxiliary Inlet Fittings

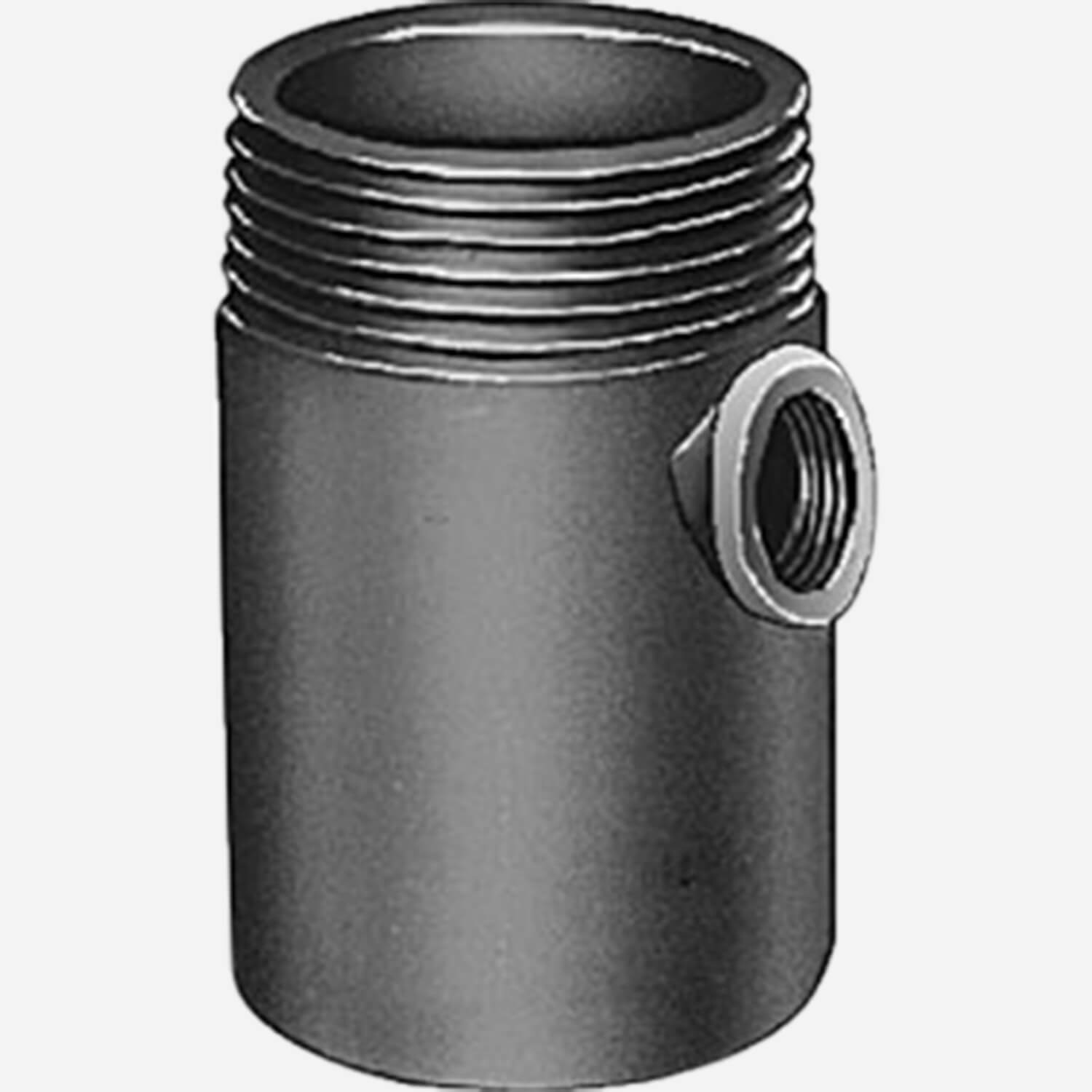

This Duco coated cast iron auxiliary inlet fitting is designed with a 2" side tapping to allow insertion of a trap primer in the outlet of a conventional drain.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2695 Floor Drain	Submittal 2695 Floor Drain	388 KB
Drawings	2695 Floor Drain (dwg)	DWG 2695 Floor Drain	43 KB
Submittals	Submittal 2698-ADA Trap Primer (pdf)	Prime-Eze ® Water Saver Trap Primer configured for ADA compliance (P-Trap is parallel to wall)	299 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	3/4"(19) NPT Inlet -P075, 2"(51) NPT Inlet -N2, (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron -G
Product Type	Floor Drain

Model	Description
2696	With Threaded Outlet
2697	With Caulk Outlet
