Name: Wide Flange Floor Drains "Safe-Set®" Bucket
Brand: Jay R. Smith Mfg. Co.
SKU: DX2565

Model DX2565

Wide Flange Floor Drains "Safe-Set®" Bucket

The 17" diam. wide flange of this drain is engineered to create a watertight seal with waterproof deck coverings. Its Safe-Set® design guarantees proper realignment of its sediment bucket after cleanout ensuring that attached drainage systems remain debris free. This Duco cast iron light-duty drain is available in several configurations.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal DX2565 Floor Drain	Floor Drains - Wide-Flange Bodies with Safe-Set® Bucket [14.25" Square x 4" Height with 7.75" Diameter Top DX2565C; DX2565T] [20" Diameter x 8.75" Height with 12.25" Diameter Top DX2566C; DX2566T]	451 KB

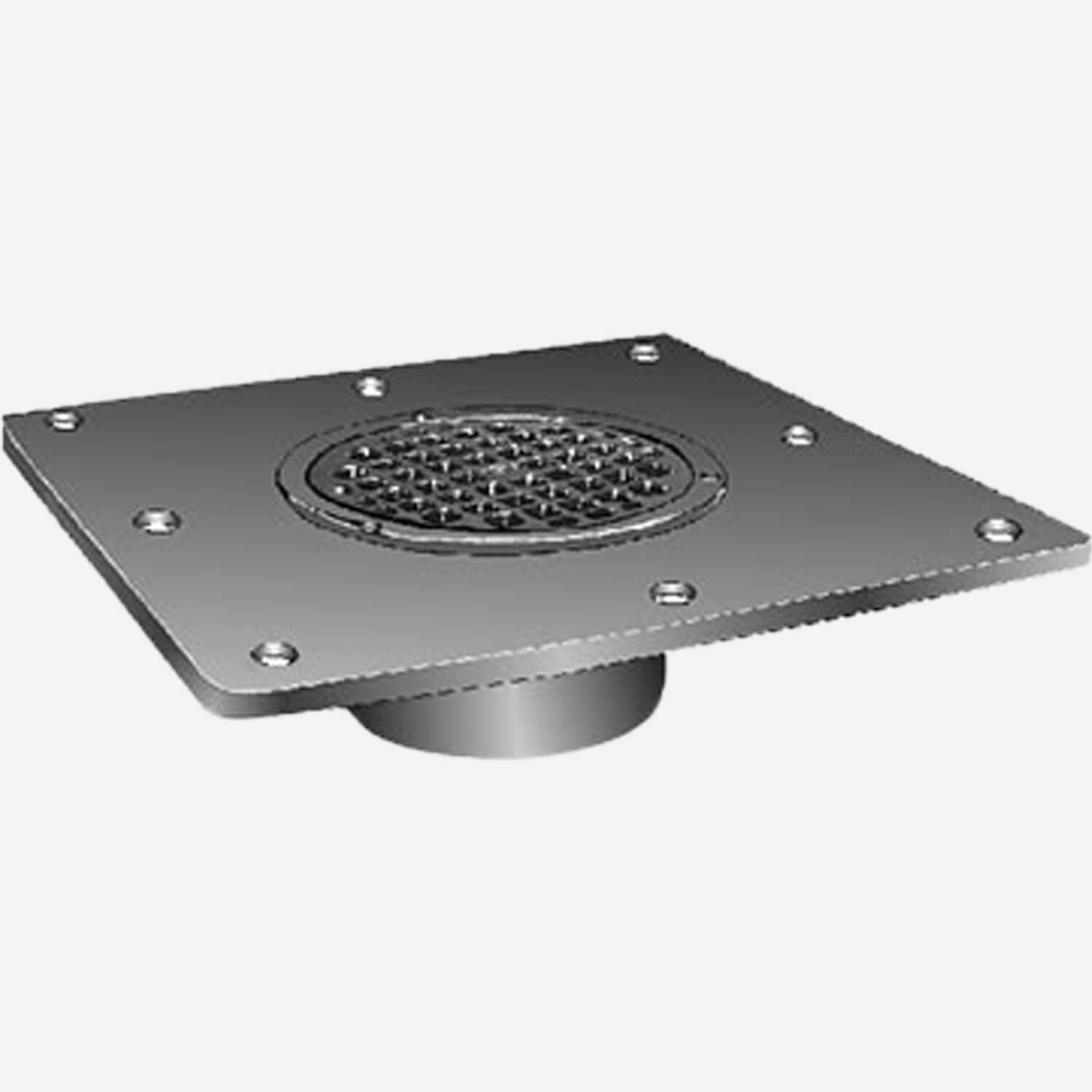

Drawings	DX2565 Floor Drain (dwg)	Floor Drains - Wide-Flange Bodies with Safe-Set® Bucket [14.25" Square x 4" Height with 7.75" Diameter Top DX2565C; DX2565T] [20" Diameter x 8.75" Height with 12.25" Diameter Top DX2566C; DX2566T]	66 KB
Drawings	DX2568 Floor Drain (dwg)	Floor Drains - Square Flange with Nickel Bronze Tractor Grate for use with Waterproof Deck Covering for Wood Deck or Concrete Construction [DX2568C \| Caulk Outlet; DX2568T \| Threaded Outlet]	48 KB
Revit/BIM/ITM Files	DX2565 Floor Drain Revit Drawing	Floor Drains - Wide-Flange Bodies with Safe-Set® Bucket - 14.25" Square x 4" Height with 7.75" Diameter Top [DX2565C \| Caulk Outlet; DX2565T \| Threaded Outlet]	392 KB
Revit/BIM/ITM Files	DX2566 Floor Drain Revit Drawing	Floor Drains - Wide-Flange Bodies with Safe-Set® Bucket - 20" Diameter x 8.75" Height with 12.25" Diameter Top [DX2566C \| Caulk Outlet; DX2566T \| Threaded Outlet]	396 KB
Submittals	Submittal DX2568 Floor Drain	Floor Drains - Square Flange with Nickel Bronze Tractor Grate for use with Waterproof Deck Covering for Wood Deck or Concrete Construction [DX2568C \| Caulk Outlet; DX2568T \| Threaded Outlet]	556 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Membrane Clamp, NO-HUB Adaptor, Securing Holes -SH, Vandal Proof Grate - U, Y NO-HUB - Outlet, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Floor Drain

Related Figure Numbers

Model	Description

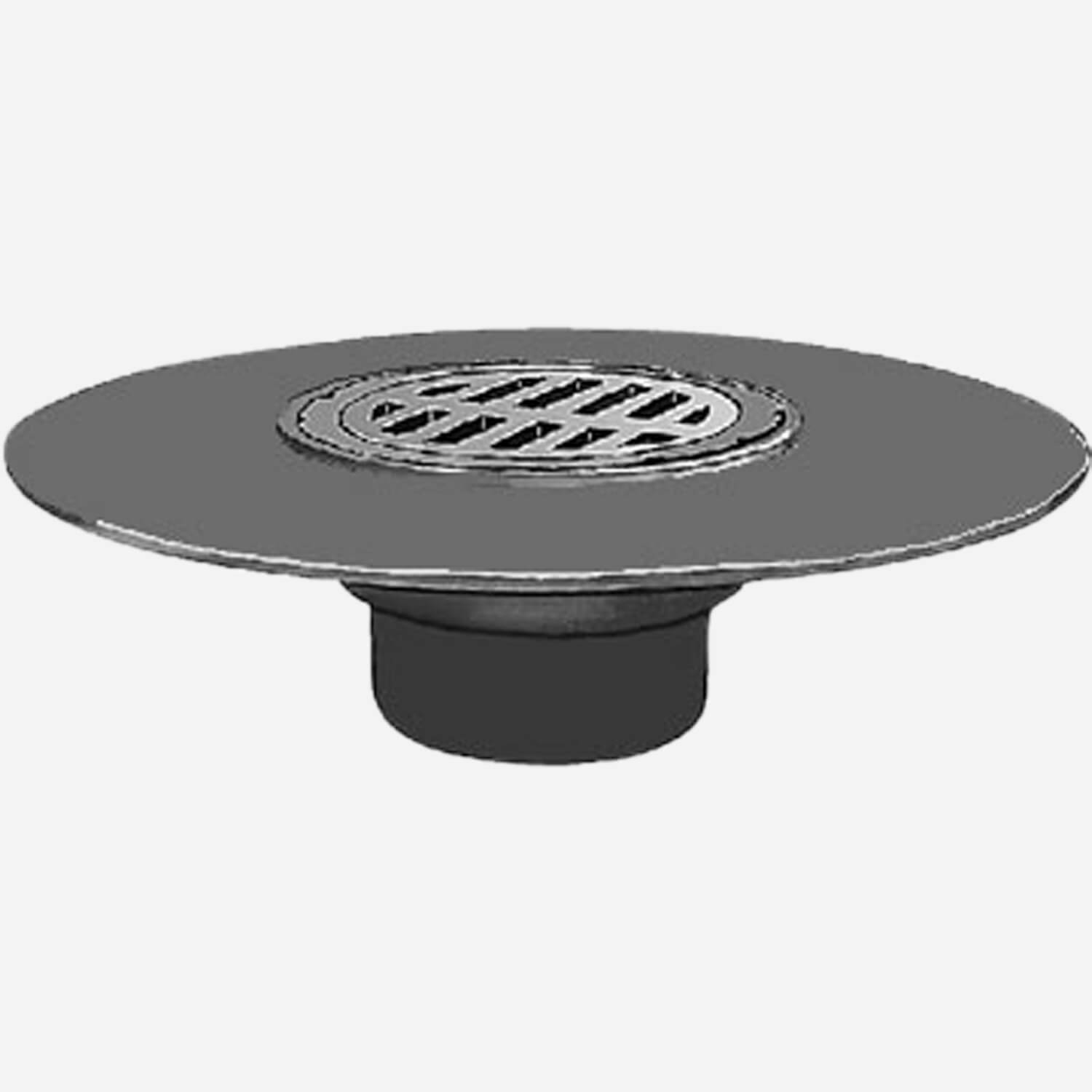

DX2568	14.25" (360 mm) Square x 4" (100 mm) Height with 7.75" (195 mm) Diameter Top 14.25" (360 mm) Square x 4" (100 mm) Height with 7.75" (195 mm) Diameter Top

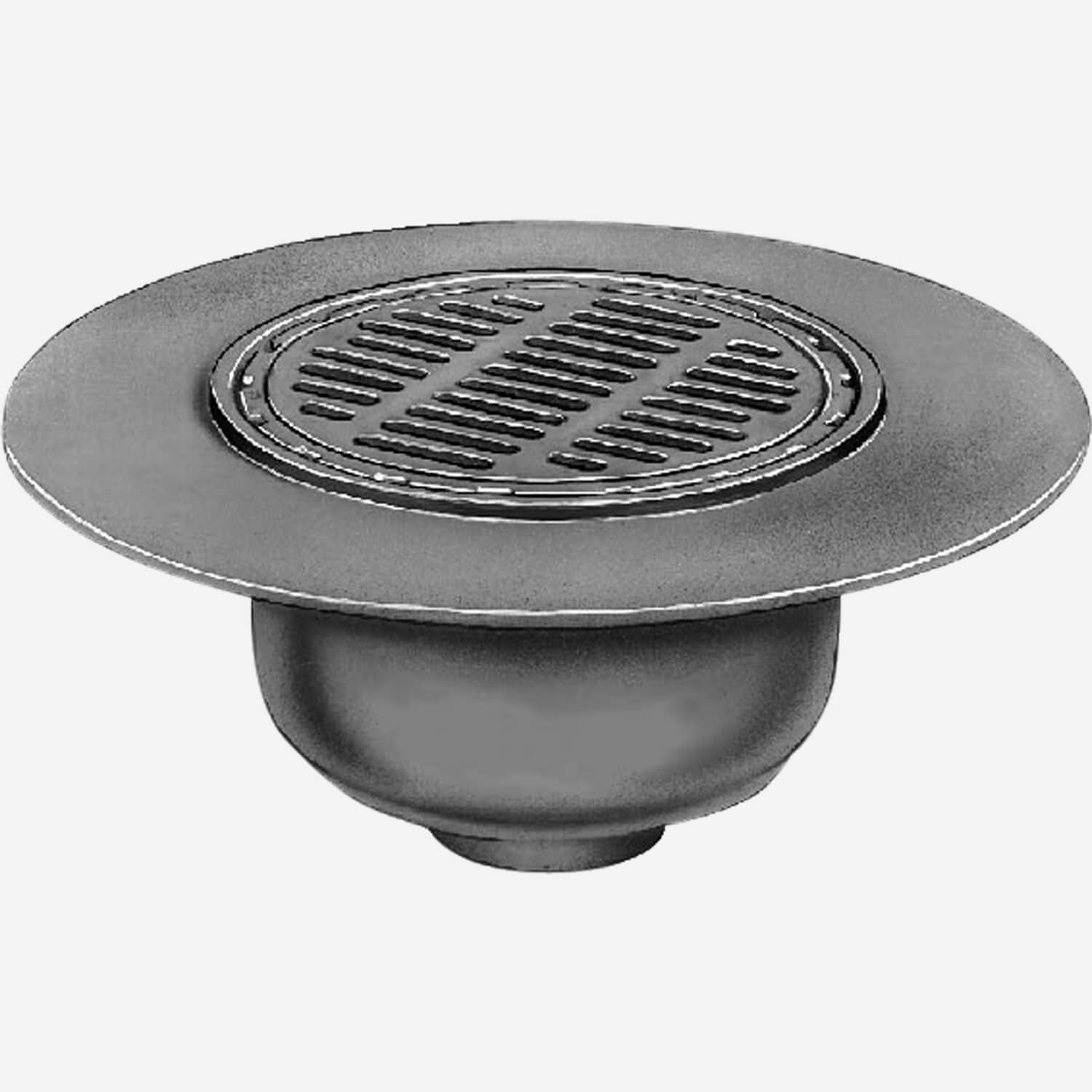

DX2566	20" (508 mm) Diameter x 8.75" (222 mm) Height with 12.25" (311 mm) Diameter Top 20" (508 mm) Diameter x 8.75" (222 mm) Height with 12.25" (311 mm) Diameter Top
