8-1/2" Round Top Tractor Grate - Heavy Duty Deep Floor Drain Body

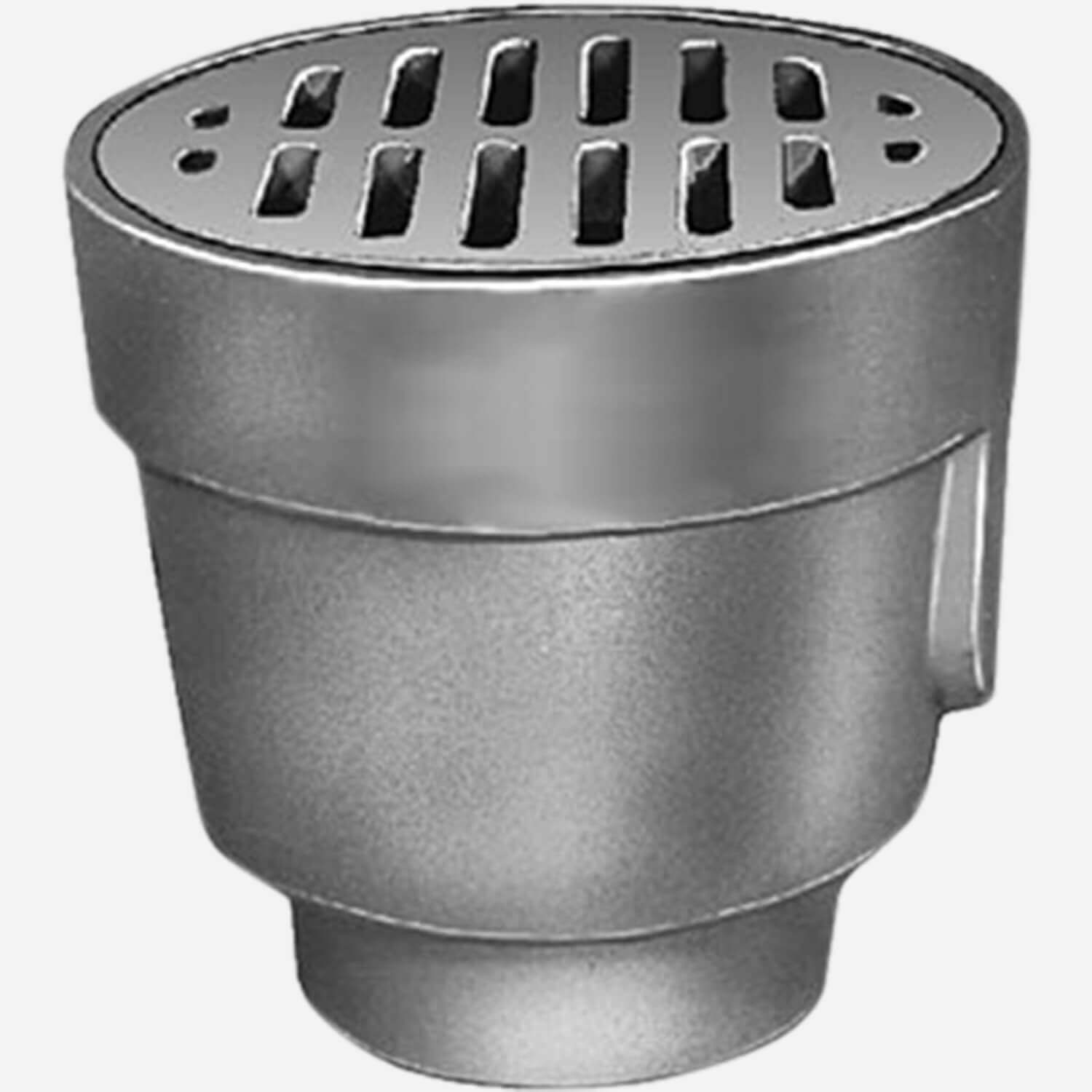

Figure 2490 is available in Duco-coated cast iron. This floor drain accepts 8-1/2" diameter cast iron strainers and is engineered to support heavy-duty "tractor" traffic and Safe Live Static loads between 5,000 lbs. (2,250 kg) and 7,499 lbs (3,375 kg) per ASME A112.6.3 Floor Drain Standard. For use when floor construction requires a deep drain body. Also available with a flange/collar (Figure 2495).
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 8-1/2" Round Top Tractor Grate - Heavy Duty Deep Drain Body [2490 | Without Flange/Collar; 2495 | With Flange/Collar] | 1 MB | ||
 | | 8-1/2" Round Top Tractor Grate - Heavy Duty Deep Drain Body [2490 | Without Flange/Collar; 2495 | With Flange/Collar] | 120 KB | ||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 101 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 227 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB | ||
| | Order Guidelines for Floor Drains | 120 KB | ||
| | Technical Data for Floor Drains | 637 KB | ||
| | Order Guidelines for Floor Drains | 120 KB | ||
| | Parts Order Guide for Floor Drains | 6 MB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 101 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 227 KB |
Specifications
| Product Type | Floor Drain |
| Variations | Auxiliary Inlets -N, 1-1/2" or 2" Hub Adapter on Auxiliary Inlets (specify 2645), Backwater Valve -V, Extension -E - (Specify Height), Flat Bottom Strainer -FBS, Hinged Grate -H, NO-HUB Adaptor - (Specify Fig. 2646Y), Square Top -S, Standing Slotted Bucket -B, Standing Solid Bucket -SB, Closure Plug -XP, Vandal Proof Grate - U, Quad Close Trap Seal (Specify Fig. 2692), (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19) |
| Optional Materials | Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top -PB |
Models
Regular Furnished: Duco Cast Iron Body and Tractor Grate with or Less Flange and Collar as indicated by Figure Number Selected.
2490C | Caulk Outlet
2490T | Threaded Outlet
2495C | Caulk Outlet with Flange and Collar
2495T | Threaded Outlet with Flange and Collar
Specify outlet pipe size 02(50), 03(75) or 04(100)
