Name: Light Duty Floor Drains with 12" Round Tops and Sediment Bucket
Brand: Jay R. Smith Mfg. Co.
SKU: 2230

Model 2230

Light Duty Floor Drains with 12" Round Tops and Sediment Bucket

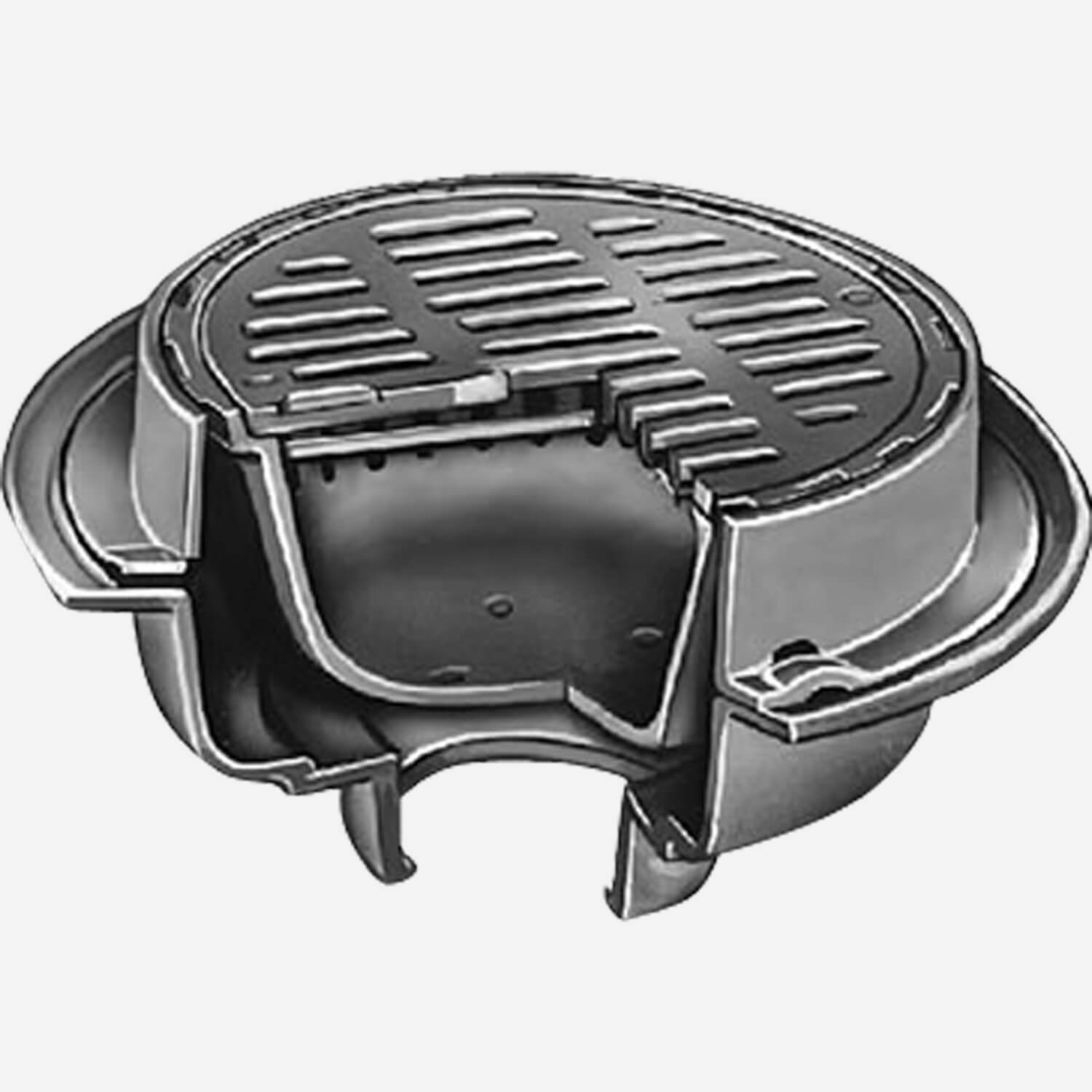

Designed to facilitate maintenance in high-flow areas where wastewater debris must not enter the drainage system. The Safe-Set® design of this floor drain allows proper realignment of the slotted sediment bucket once clean. This light duty floor drain and grate is made of Duco cast iron for static loads up to 4,999 lbs. (2,2500 kg.).

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2230, 2235 Floor Drain	Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 \| Bottom Outlet; 2235 \| Side Outlet]	609 KB
Drawings	2235 Floor Drain (dwg)	Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2235 \| Side Outlet; 2230 \| Bottom Outlet]	136 KB
Drawings	2230 Floor CAD Drawing	Light Duty Floor Drains with 12" Round Tops and Sediment Bucket - Bottom Outlet	215 KB
Revit/BIM/ITM Files	2330, 2331 Floor Drain (rfa)	Medium Duty Floor Drains with 12" Round Adjustable Tops [2330C \| Deep Body, Caulk Bottom Outlet; 2330Y \| Deep Body, No-Hub Bottom Outlet; 2331C \| Shallow Body, Caulk Bottom Outlet]	1 MB
Revit/BIM/ITM Files	2335 Floor Drain (rfa)	Medium Duty Floor Drains with 12" Round Adjustable Tops [2335C \| Caulk Side Outlet; 2335T \| Thread Side Outlet]	688 KB
Revit/BIM/ITM Files	2230 Floor Drain Revit Drawing	Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 \| Bottom Outlet]	328 KB
Submittals	Submittal 2231 Floor Drain	Light Duty Floor Drains with 12" Round Tops and Solid Free Standing Sediment Bucket	467 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Images	2230 Floor Drain (hi res jpg)	Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 \| Bottom Outlet]	49 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Hinged Grate -H, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Vandal Proof Grate - U, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Stainless steel mesh grate (256.00 sq. in.) 1 meter, Stainless Steel Mesh Lined Bucket -BS
Optional Materials	Ductile Iron Grate & Bucket -MGB, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Floor Drain
