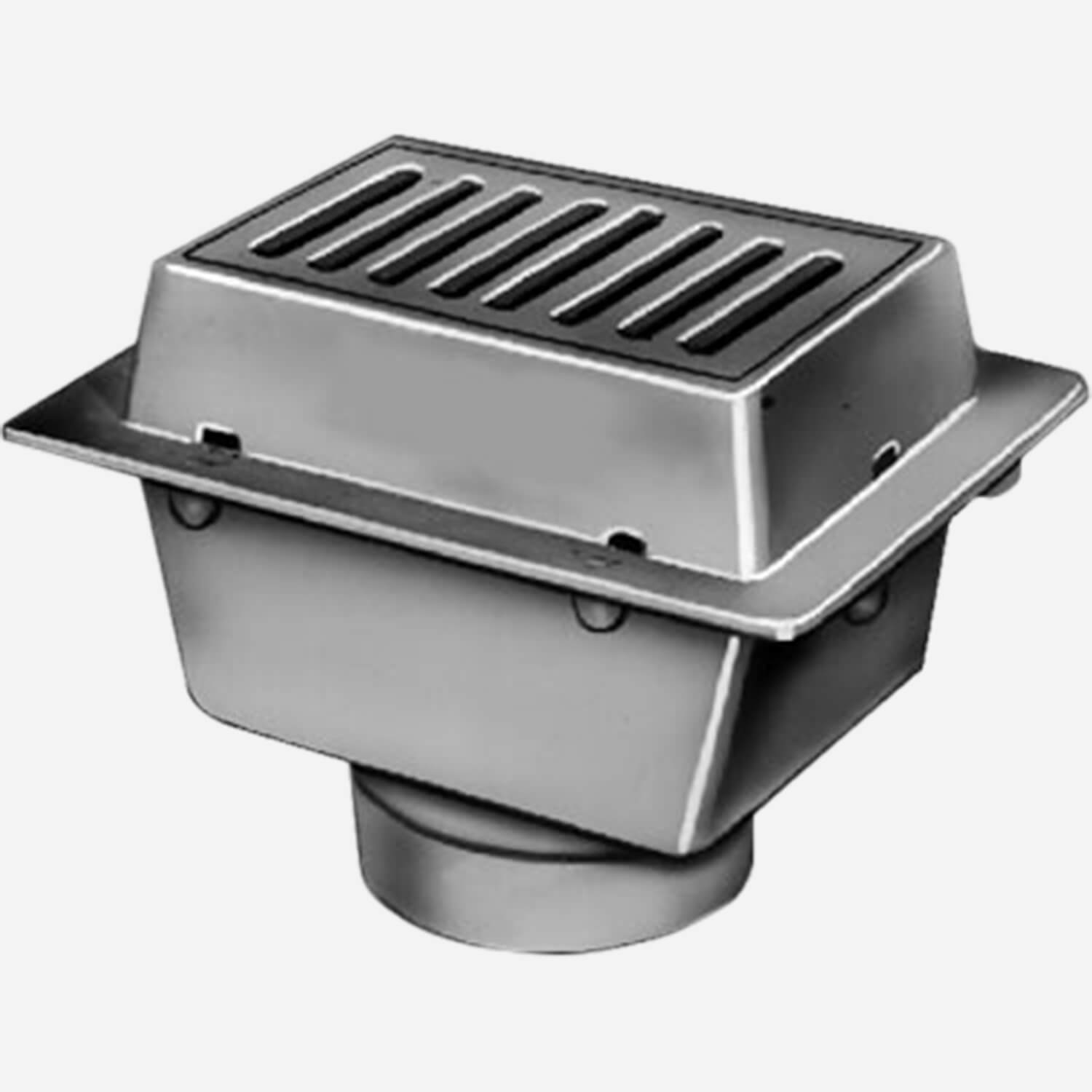

Floor Drain with Hinged Grate and Sediment Bucket

Name: Floor Drain with Hinged Grate and Sediment Bucket
Brand: Jay R. Smith Mfg. Co.
SKU: 2589

Find A Representative

Figure 2589

Submittal

Submittal 2589 Floor Drain

Model 2589

Floor Drain with Hinged Grate and Sediment Bucket

This 12" by 9" rectangular drain is engineered to transport debris-filled wastewater from narrow spaces like gutters and trenches. Its protective sediment bucket is easily accessible through this Duco cast iron drain's hinged grate and has a convenient lift bar for fast retrieval and replacement. A flashing clamp can be specified if needed.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2589 Floor Drain	Submittal 2589 Floor Drain	895 KB
Drawings	2589 Floor Drain (dwg)	DWG 2589 Floor Drain	49 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Flashing Clamp -C, NO-HUB Adaptor, Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Floor Drain
