Name: Traffic Rated Floor Drain with 12" Square Top and Free Standing Bucket
Brand: Jay R. Smith Mfg. Co.
SKU: 2410

Model 2410

Traffic Rated Floor Drain with 12" Square Top and Free Standing Bucket

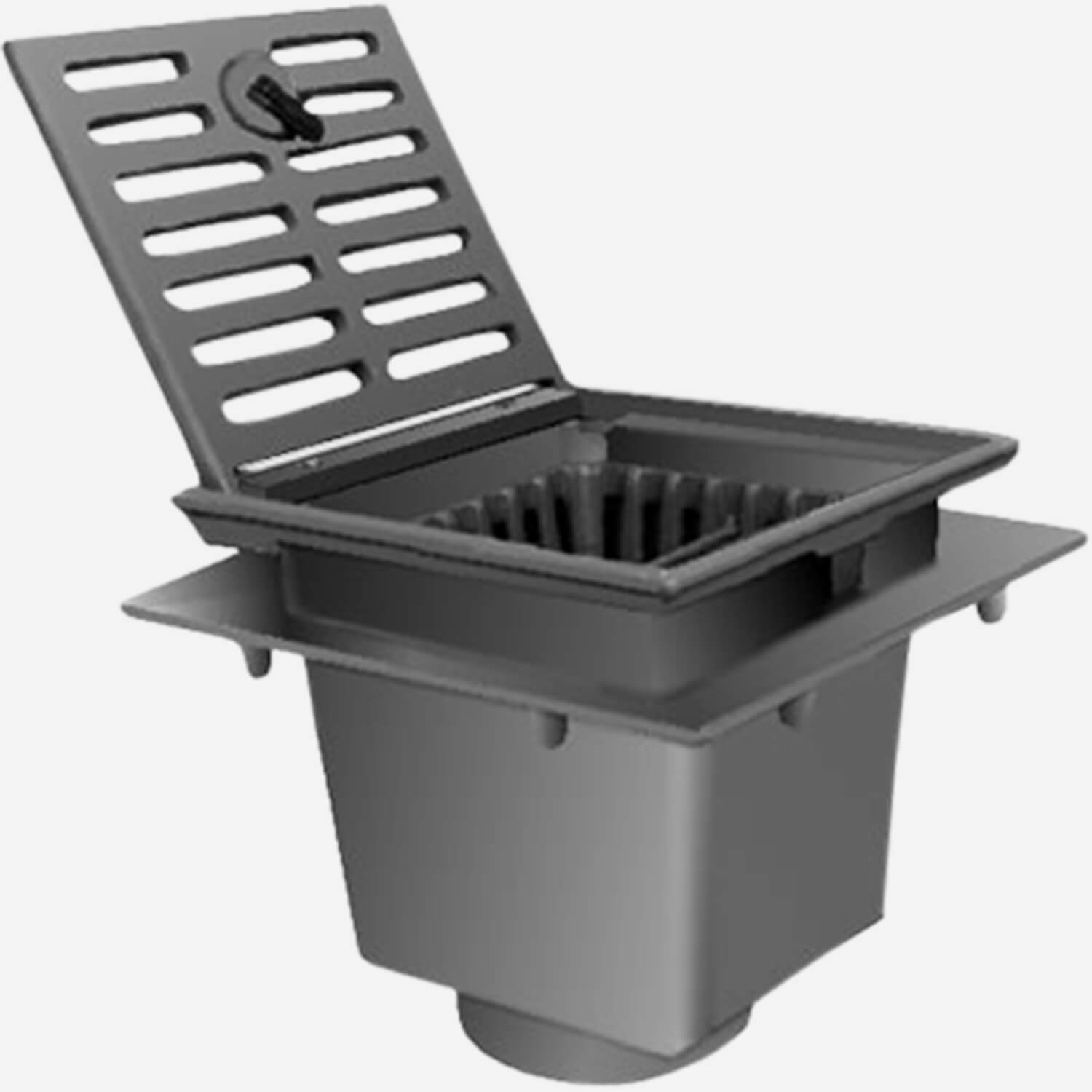

This 12" square floor drain has a large, easily removable sediment bucket topped by a lockable hinged grate for easy cleaning. Engineered for light traffic of less than 2,000 lbs. (900 kg.) in Duco cast iron, it is designed for industrial use where debris and salvageable material must be cleared from wastewater before draining.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2410, 2415 Floor Drain (pdf)	Light Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket [2410C \| Caulk Outlet; 2410Y \| No-Hub Outlet; 2415C \| With Flange - Caulk Outlet; 2415Y \| With Flange - No-Hub Outlet]	579 KB
Drawings	2410 Floor Drain (dwg)	Light Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket [2410C \| Caulk Outlet; 2410Y \| No-Hub Outlet]	97 KB
Drawings	2420, 2425 Floor Drain (dwg)	Medium Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket with Side Outlet [2420C \| Caulk Outlet; 2425C \| with Flange - Caulk Outlet]	38 KB
Drawings	2440, 2445 Floor Drain (dwg)	Traffic Floor Drain with Internal Trap - Sediment Bucket - All Galvanized Steel Body with Duco Finish - Side Outlet [2440C \| Caulk Outlet; 2440Y \| No-Hub Outlet; 2445C \| With Flange - Caulk Outlet; 2445Y \| With Flange - No-Hub Outlet]	100 KB
Drawings	2415 Floor Drain (dwg)	Light Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket [2415C \| With Flange - Caulk Outlet; 2415Y \| With Flange - No-Hub Outlet]	100 KB
Revit/BIM/ITM Files	2410 Floor Drain (rfa)	Light Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket [2410C \| Caulk Outlet; 2410Y \| No-Hub Outlet; 2415C \| With Flange - Caulk Outlet; 2415Y \| With Flange - No-Hub Outlet]	376 KB
Submittals	Submittal 2420, 2425 Floor Drain (pdf)	Medium Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket with Side Outlet [2420C \| Caulk Outlet; 2425C \| with Flange - Caulk Outlet]	163 KB
Submittals	Submittal 2440, 2445 Floor Drain (pdf)	Traffic Floor Drain with Internal Trap - Sediment Bucket - All Galvanized Steel Body with Duco Finish - Side Outlet [2440C \| Caulk Outlet; 2440Y \| No-Hub Outlet; 2445C \| With Flange - Caulk Outlet; 2445Y \| With Flange - No-Hub Outlet]	551 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Flashing Clamp -C, Loose Set Grate -LSG, Vandal Proof Grate - U, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Floor Drain

Models

Light Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket
Light Duty having a Safe Live (Static) Load less than 2,000 lbs. (900 kg) per ASME A112.6.3 Floor Drain Standard

2410C | Caulk Outlet
2410Y | No-Hub Outlet
2415C | With Flange - Caulk Outlet
2415Y | With Flange - No-Hub Outlet

Medium Duty Square Top Traffic Floor Drains with Free-Standing Sediment Bucket with Side Outlet
Medium Duty having a Safe Live (Static) Load between 2,000 lbs. (900 kg) and 4,999 lbs. (2,250 kg) per ASME A112.6.3 Floor Drain Standard

2420C | Caulk Outlet
2425C | with Flange - Caulk Outlet

Traffic Floor Drain with Internal Trap - Sediment Bucket - All Galvanized Steel Body with Duco Finish - Side Outlet

2440C | Caulk Outlet
2440Y | No-Hub Outlet
2445C | With Flange - Caulk Outlet
2445Y | With Flange - No-Hub Outlet

Model	Description

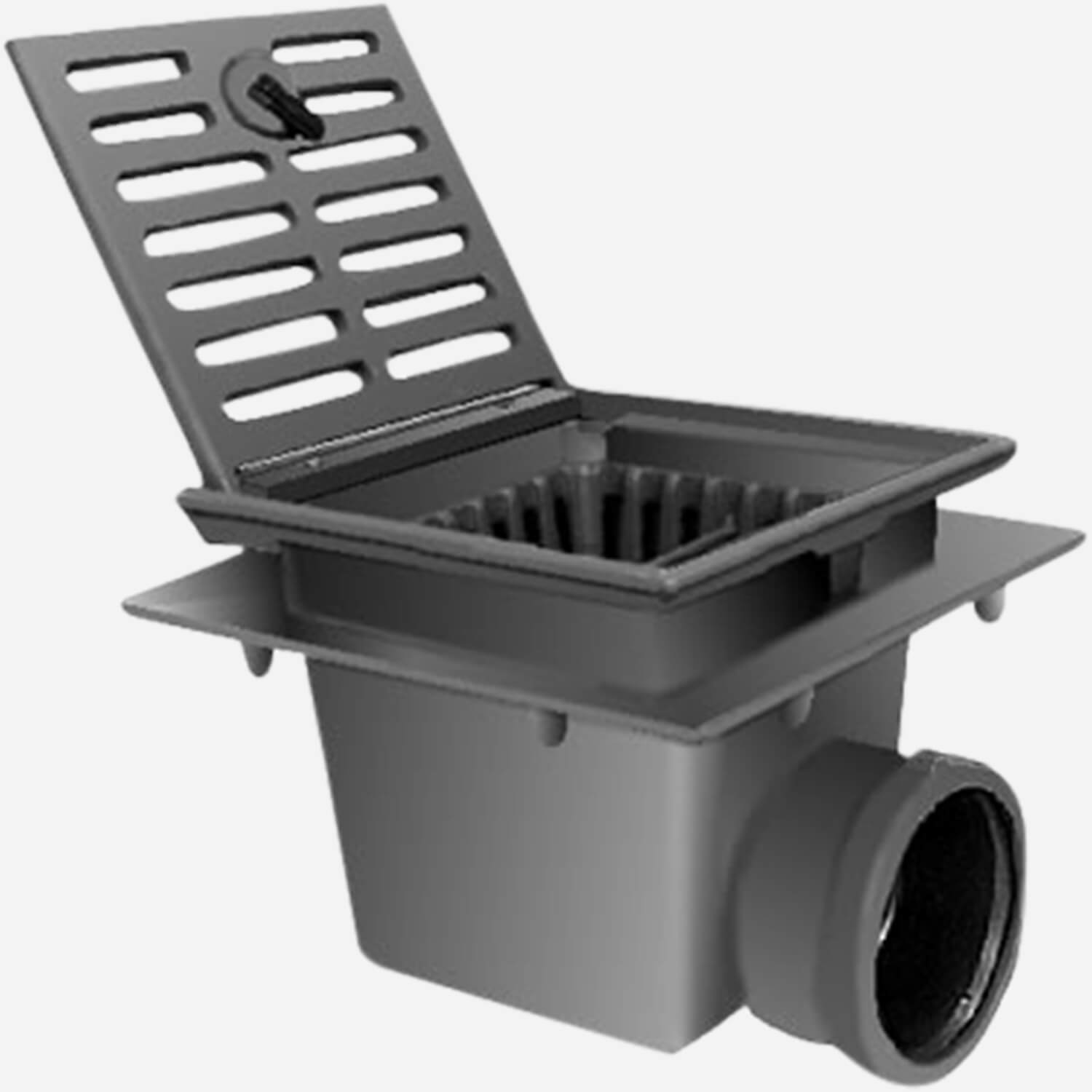

2420	With Side Outlet
2440	With Integral Trap
2415	With Flange
2425	With Side Outlet and Flange
