Name: Small Capacity General Purpose Floor Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 2108

Model 2108

Small Capacity General Purpose Floor Drain

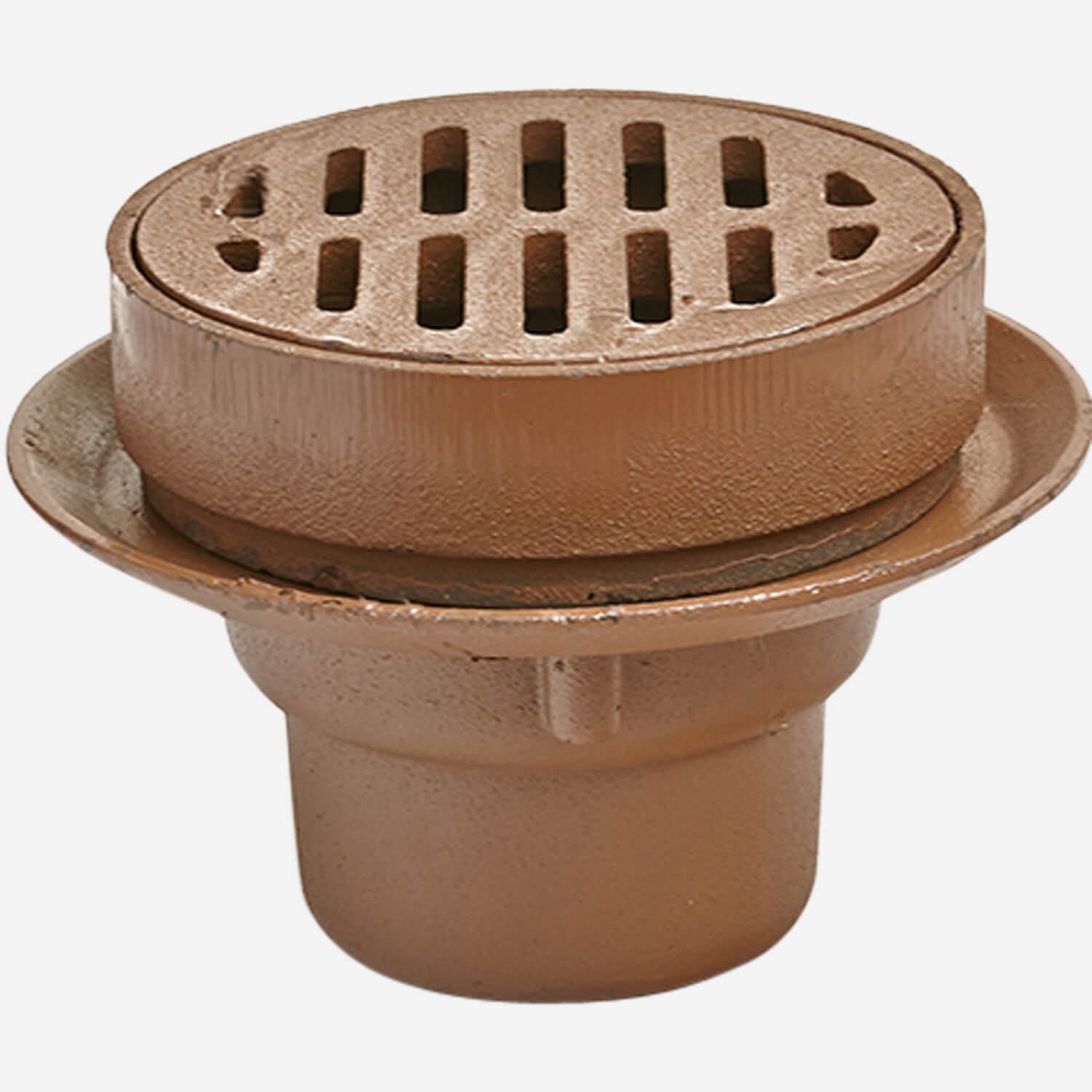

This durable Duco cast iron drain has a 7" diam. grate and is designed for installation where small volumes of clear wastewater is anticipated. It is provided with a hard-wearing, non-tilting tractor grate. Other configurations are available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2108 Floor Drain (pdf)	Small Capacity General Purpose Floor Drain with Removable Non-Tilting Grate, Bolting Arrangement on the Side [2108C \| Caulk Bottom Outlet; 2108Y \| No-Hub Bottom Outlet]	364 KB
Drawings	2108 Floor Drain (dwg)	Small Capacity General Purpose Floor Drain with Removable Non-Tilting Grate, Bolting Arrangement on the Side [2108C \| Caulk Bottom Outlet; 2108Y \| No-Hub Bottom Outlet]	48 KB
Drawings	2109 Floor Drain (dwg)	Small Capacity General Purpose Floor Drain with Removable Bar Grate, Bolting Arrangement in the Center, Sediment Bucket [2109C \| Caulk Bottom Outlet; 2109T \| Threaded Bottom Outlet; 2109Y \| No-Hub Bottom Outlet]	36 KB
Revit/BIM/ITM Files	2108 Floor Drain (rfa)	Small Capacity General Purpose Floor Drain with Removable Non-Tilting Grate, Bolting Arrangement on the Side [2108C \| Caulk Bottom Outlet; 2108Y \| No-Hub Bottom Outlet]	448 KB
Revit/BIM/ITM Files	2109 Floor Drain (rfa)	Small Capacity General Purpose Floor Drain with Removable Bar Grate, Bolting Arrangement in the Center, Sediment Bucket [2109C \| Caulk Bottom Outlet; 2109T \| Threaded Bottom Outlet; 2109Y \| No-Hub Bottom Outlet]	464 KB
Submittals	Submittal 2109 Floor Drain (pdf)	Small Capacity General Purpose Floor Drain with Removable Bar Grate, Bolting Arrangement in the Center, Sediment Bucket [2109C \| Caulk Bottom Outlet; 2109T \| Threaded Bottom Outlet; 2109Y \| No-Hub Bottom Outlet]	420 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Flat Bottom Strainer -FBS, Backwater Valve -V, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
Optional Materials	All Galvanized -G, Bronze Body -BB
Product Type	Floor Drain

Models

Small Capacity General Purpose Floor Drain

with Removable Non-Tilting Grate, Bolting Arrangement on the Side [submittal]
2108C | Caulk Bottom Outlet
2108Y | No-Hub Bottom Outlet

with Removable Bar Grate, Bolting Arrangement in the Center, Sediment Bucket [submittal]
2109C | Caulk Bottom Outlet
2109T | Threaded Bottom Outlet
2109Y | No-Hub Bottom Outlet

OPTIONAL STRAINER HEADS (as appropriate - see spec sheet)
Suffix A | Round Strainer
Suffix B | Square Strainer
Suffix AV | Square Strainer which works with Flapper Backwater Valve
Suffix BS| Strainer Head with Square Hinged Cover
Suffix C | Reinforced Round Strainer
Suffix D | 7" Diameter Reinforced Tractor Round Strainer
Suffix E | 9" Diameter Reinforced Tractor Round Strainer
Suffix F | Round Tile Flange Strainer
Suffix F37 | 7" Diameter Adjustable Strainer Head
Suffix F38 | 9" Diameter Adjustable Strainer Head
Suffix G | Low Dome Strainer
Suffix H | Round Solid Hinged Cover Strainer
Suffix K | Reinforced Square Strainer
Suffix L | 4-1/2" x 8" Rectangular Strainer
Suffix M | 4" x 12" Rectangular Strainer
Suffix N | 5" x 9" Rectangular Strainer
Suffix P | 5" x 13" Rectangular Strainer
Suffix R | 6" x 10" Rectangular Strainer
Suffix T | 5" x 17" Rectangular Strainer
Suffix V | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X | Extension Adaptor
Suffix Y | 2" Pipe Size Overflow with Standpipe
Suffix Z | 3" Pipe Size Overflow with Standpipe
